Description
16 layer fully multi-coated optics for exceptional clarity
Side focus control for parallax adjustment to infinity
30mm mono-tube chassis for superior strength
Glass etched reticle with red illumination
Stepless rheostat offers total brightness control
¼ MOA exposed, locking and resettable turrets
Fast focus eyebell and high torque zoom ring
Features

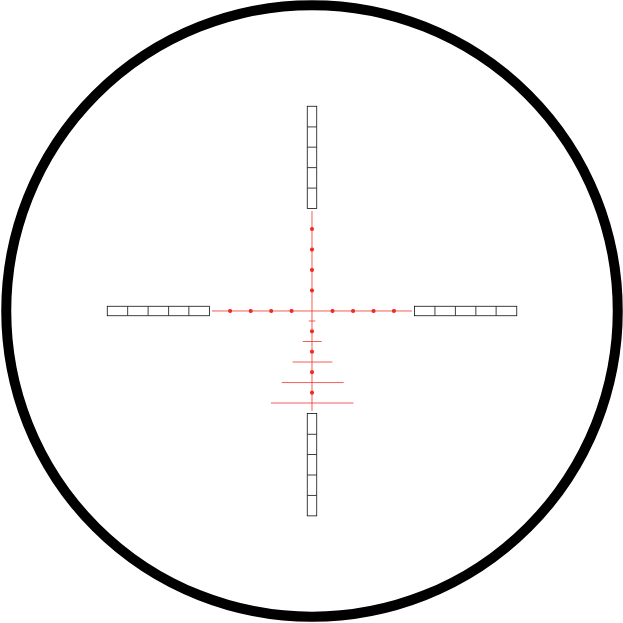

AMX RETICLE
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Specifications
Chassis
30mm Mono-Tube
Optical System
4-16x
Objective
50mm
Reticle
AMX IR
Illumination
Red - Stepless
Focus/ Parallax
Side Focus - 9m / 10yds to Infinity
Field Of View
7.7 - 2.2m / 23 - 6.5ft
Eye Relief
102mm / 4″
Length
358mm / 4.1″
Weight
780g / 27.5oz
