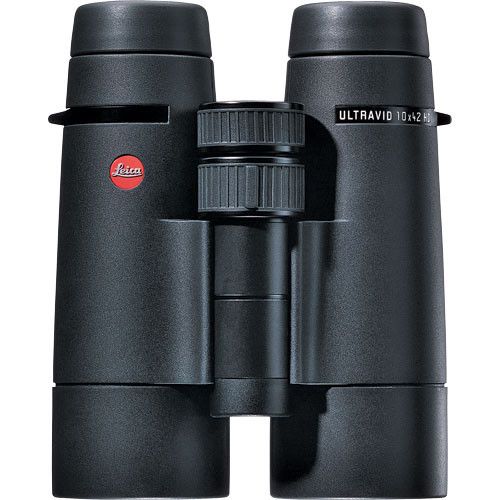

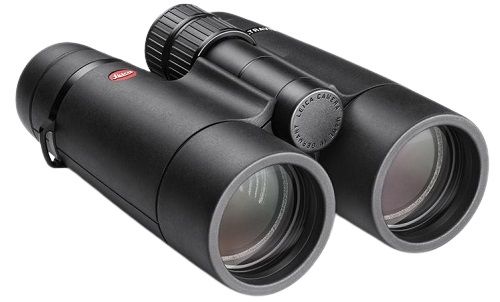

Leica upgraded the glass to specially formulated SCHOTT HT glass which increases light transmission especially in the blue-violet light band, improves color fidelity, and enhances low-light performance. Scratch and abrasion-resistant High Durable Coating (HDC), and hydrophobic AquaDura coating on outer lens protect surfaces and causes water and oil to bead off for easier cleaning and clearer vision. The roof prisms feature P40 phase-correction and the proprietary High Lux System (HLS) coatings. These coatings virtually eliminate chromatic aberration for enhanced color rendition and increased contrast.
Complementing the optical performance are uncompromising construction details. To reduce user fatigue during long glassing sessions, the chassis is made of a lightweight yet durable magnesium alloy, with a titanium center hinge axle. The optical tubes are nitrogen-filled for fogproof performance and sealed to make the binocular submersible to 16.4' or 0.5 bar of pressure. Ergonomic thumb indents on the bottom of the binocular coupled with protective rubber armoring provide a comfortable slip-resistant grip. A lubrication-free focus system provides fast and precise focusing, with PETP-Discs to provide smooth movement throughout the broad operating temperature range.
Features
-
10x magnification
-
42mm objective lens diameter
-
Compact roof prism optical path
-
High-quality SCHOTT HT glass increases light transmission, especially in blue-violet band, improves color fidelity, and enhances low-light performance
-
P40 and the proprietary High Lux System (HLS) prism coatings
-
High temperature plasma lens coating depositing system for precise optical coating placement
-
Phase corrected prisms reduce chromatic aberration for enhanced colour rendition
-
Scratch and abrasion-resistant High Durable Coating (HDC) and hydrophobic AquaDura coating on outer lens protects surfaces and causes water and oil to bead off lenses for easier cleaning and clearer vision in bad weather
Specifications
| Prism Type | Roof |
| Magnification | 10x |
| Objective Lens Diameter | 42mm |
| Angle of View | 6.3° (actual) |
| Field-of-View | 331.33' @ 1000 yd / 110 m @ 1000 m |
| Minimum Focus Distance | 9.68' / 2.95 m |
| Exit Pupil Diameter | 4.2 mm |
| Eye Relief | 15.8 mm |
| Interpupillary Adjustment | 56 - 74 mm / 2.20 - 2.91" |
| Dioptric Correction | ±4 |
| Focus Type | Center |
| Tripod Mount | Yes (Adapter Optional) |
| Dimensions | 5.79 x 4.76 x 2.64" / 14.7 x 12.1 x 6.7 cm |
| Weight | 26.98 oz / 765 g |
| Packaging Info | |
| Package Weight | 3.35 lb |
| Box Dimensions (LxWxH) | 10.5 x 8.2 x 6.7" |
