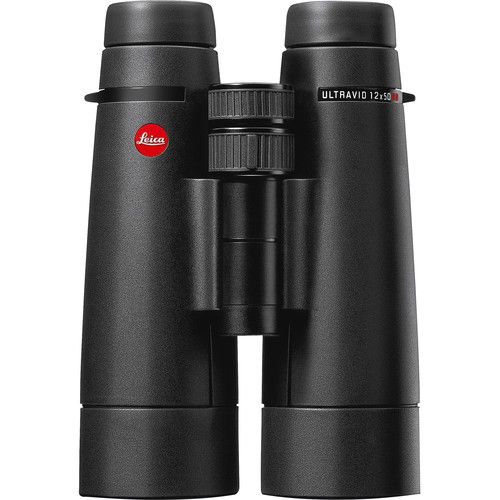

Building on the success of the original Ultravid HD, Leica's 12x50 Ultravid HD Plus Binocular adds improved technologies and materials to create an optic with bright and clear images across the entire field of view. The full-size HD Plus delivers enhanced contrast and true color fidelity, with virtually zero distortion, even in low-light conditions. Helping compensate for the visually distracting hand-shake common with using 10x and greater optics, is a wide angle 68.4° apparent viewing angle. This allows the use of high magnification binoculars without the need for stabilization equipment like harnesses or tripods; although high powered binoculars could always benefit from these devices.
Complementing the optical performance are uncompromising construction details. To reduce user fatigue during long glassing sessions, the chassis is made of a lightweight yet durable magnesium alloy, with a titanium center hinge axle. The optical tubes are nitrogen-filled for fogproof performance and sealed to make the binocular submersible to 16.4' or 0.5 bar of pressure. Ergonomic thumb indents on the bottom of the binocular coupled with protective rubber armoring provide a comfortable slip-resistant grip. A lubrication-free focus system provides fast and precise focusing, with PETP-Discs to provide smooth movement throughout the broad operating temperature range.
Features
- 12x magnification
- 50mm objective lens diameter
- Roof prism optical path
- High-quality SCHOTT HT glass increases light transmission
- P40 and the proprietary High Lux System (HLS) prism coatings
- High temperature plasma lens coating depositing system for precise optical coating placement
- Phase corrected prisms reduce chromatic aberration for enhanced color rendition
- Scratch and abrasion-resistant High Durable Coating (HDC) and hydrophobic AquaDura coating on outer lens
- Lubricant free center focus system with PETP-Discs provides smooth movement throughout the operating temperature range
- ±4 right-eye dioptric correction
- Locking center diopter adjustment wheel
- Tripod mountable with optional adapter
- Light and durable magnesium chassis
- Titanium center hinge axle
- Slip-resistant protective rubber-armored body
- Nitrogen-filled, fogproof and watertight to 16.5'/0.5 bar pressure
- Broad -13 to 131°F operating temperature
- Ergonomic thumb rests for added comfort and a better grip
Specifications
| Magnification | 12 x |
| Front lens diameter | 50 mm |
| Exit pupil | 4.2 mm |
| Twilight factor | 24.5 |
| Field of view at 1,000 m | 100 m |
| Eye-relief | 13 mm |
| Objective angle of view | 5.7° |
| Close focusing distance | approx. 3.2 m/10.5 ft |
| Diopter compensation | ± 4 diopters |
| Automatic diopter compensation ADC™ | yes |
| Eyepieces for eyeglass wearers | yes, removable, with 4 click stops |
| Adjustable interpupillary distance | 58 – 75 mm |
| Focusing | Internal focusing via central focusing device |
| Prism system | Roof prism with phasecorrecting coating P40 and HighLux-System HLS™ |
| Watertightness | Watertight to a depth of 5 m/16.5 ft |
| Housing | Magnesium, nitrogen-filled |
| Dimensions (W x H x D) | 120 x 182 x 78 mm |
| Weight | approx. 1,040 g / 35.3 oz |
