• Roof Prism ED Lens with Reticle, 6 Groups 8 Lens, Silver Coated Prism, Fully Multi Coated Lens.
• Phase Correction Coat, Dielectrical Coating, 88% Light Transmission, Wide Field of View.
• Made from High Strength Semi-Aromatic Thermoplastic, with Non-Slip Rubber Armor.
• A Versatile Ranging Reticle That Can Be Used to Judge Both the Height and Distance to a Target.
• Rotating Mil-L Reticle That Can be Rotated within Field of View, Simply by Adjusting the Left Eyecup, Ensuring Precise and Adaptable Performance.
Specifications
- Magnification: 10x
- Objective Lens: 42mm
- Optical Structure: 6 Groups 8 Lens
- Type of Prism: BAK4 roof prism
- Coating: Fully Multi-layer coating
- Coating on Prism: Silver coated
- Focus System: Center focus
- Exit Pupil: 4.2mm
- Eye Relief: 12.2mm
- Near Focus: 2.5m
- Field of View: 7.0°
- Field of View: 36.6ft @ 100yds
- Field of View: 14.2m @ 100m
- Relative Brightness: 17.64
- Resolving Power: 5.7''
- Diopter System: Right eyepiece
- Diopter Compensation: -4 to +4
- Size: 147x130x55mm
- Weight (including caps): 804g / 28.36oz
- Body Material: Semi-Aromatic Thermoplastic
- Surface Treatment: Paint/Rubber
- Eyecups: Twist-up
- Water Proof: IPX7
- Phase Correction Coating, Metal central focusing knob, metal diopter adjustment ring

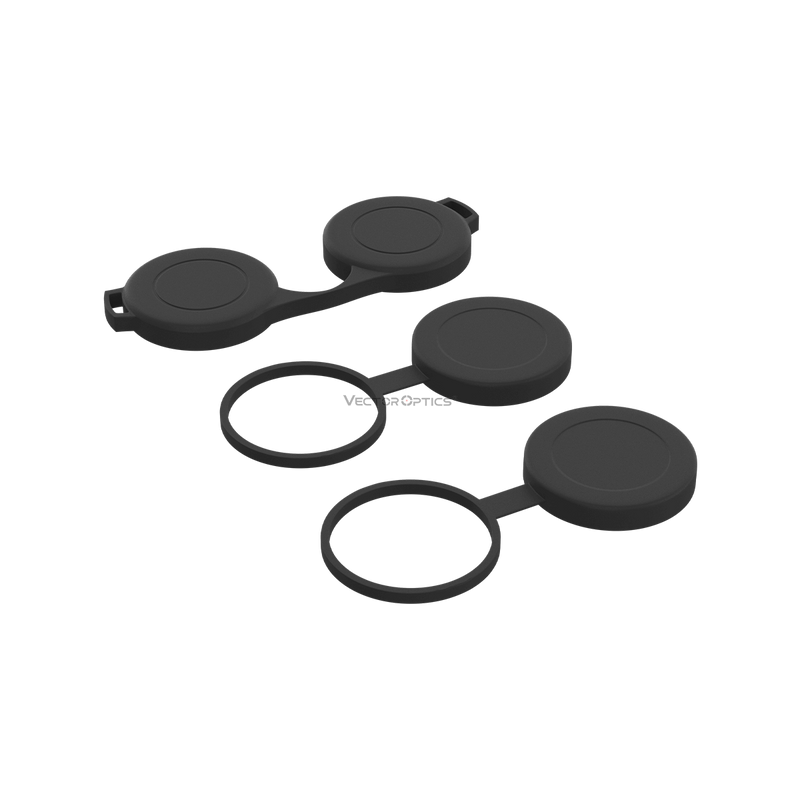

- Including: pouch, shoulder strap, lens caps, instruction, cleaning cloth, etc.
Reticle
