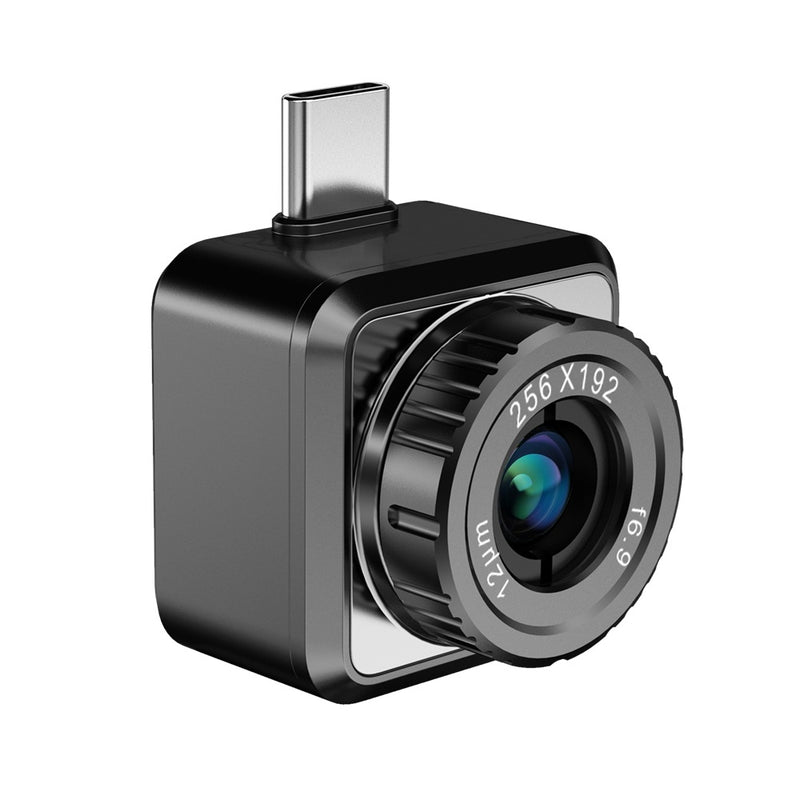

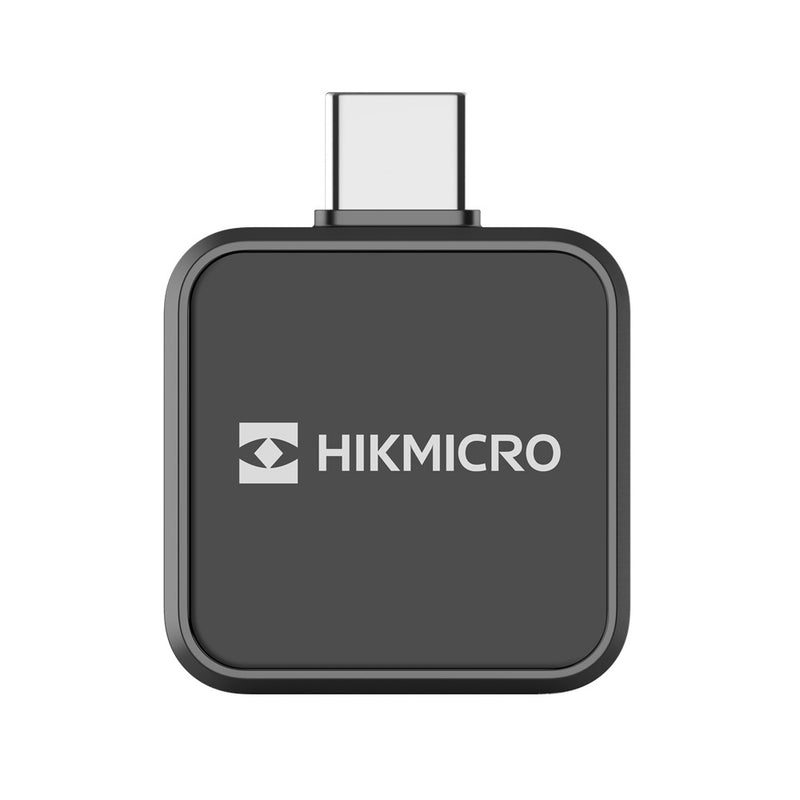

HIKMICRO Mini2Plus V2 Thermal Imager

HIKMICRO Mini2Plus V2 Thermal Imager for Android Smartphones.

The Mini2 Plus features a manually adjustable focus, making it possible to inspect small objects like circuit boards or perform distant inspections of electrical or mechanical components. This adaptability makes the Mini2 Plus especially useful for professionals needing to inspect both near and far objects safely.

• Type-C Port & Lightning Port. HIKIMICRO Mini2Plus V2 compatible with the latest iPhone15 series and Android devices. Equipped with Lightning to Type-C adapter suitable for iPhone14 and earlier models.
• Super Clear Thermal Image. HIKIMICRO Mini2Plus V2 features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
• Manual Focus. Equipped with a manual focus lens for inspection at various distances from 10 cm to 50 m. Viewing small objects like electronic components as small as 0.5 mm or viewing more distant objects like electrical or mechanical equipment that require a safe distance.
• Accurate Temperature Measurements. Mini2Plus V2 accurately measures temperatures from -20°C (-4°F) to 400°C (752°F), with a temperature accuracy up to ±2°C / ± 2 %.
• Innovative Macro Mode. The Mini2Plus V2 with its manual focus lens is capable of delivering stable, detailed views of objects as small as 340 microns, when used with an additional desk stand bracket. Furthermore, it is accurate at taking temperature readings on small items, like components on printed circuit boards and assemblies.
• Battery-free. HIKIMICRO Mini2Plus V2 is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
• Image & Temperature Measurement. HIKMICRO Mini2Plus V2 with PIP mode, Custom Palettes and 15 Preset Palettes, Video and Image Capture make it easier to work.
• Multiple Professional Settings. Providing professional settings allows you to get the best thermal imaging images and temperature readings of different surfaces.




  Key Features

  • Thermal resolution: 256 × 192 (49 152 pixels)
  • SuperIR image enhancement technology on live view and captured images.
  • 3-in-1: USB-C (iOS ＆ Android), Lightning (Includes a Lightning to USB-C adapter)
  • NETD: ＜40 mK (@ 25 °C, F#=1.0)
  • Accuracy: ±2 ℃ (-20 °C to 100 °C); ±2 % (100 °C to 400 °C)
  • 26 g Weight

    Infrared Image

    • IR Resolution: 256 × 192 (49,152 pixels)
    • SuperIR: Yes, on captured images and live view
    • NETD: < 40 mK (@ 25 °C, F#=1.0)
    • Image Frequency: 25 Hz
    • Detector Pitch: 12 μm
    • Spectral Range: 7.5 to 14 μm
    • Focal Length: 6.9 mm
    • F-number: F1.0
    • Field of View (FOV): 25° × 18.8°
    • Focus Distance : 0.1 m
    • Focus Mode: Manual focus.



    Image Display

    • Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Colour, Ice Fire, Rain, Red Hot,

    Green Hot, Dark Blue, Combined

    • Image Modes: Thermal, Visual (with the phone camera)



    Measurement and Analysis

    • Object Temperature Range: -20°C to 400°C.
    • Accuracy: Max (±2°C, ±2%), for ambient temperature 15°C to 35°C and object temperature above 0°C
    • Measurement Tools: Centre Spot, Hot Spot, Cold Spot
    • User-definable: 3 spots, 3 rectangles and 1 line.
    • Level and Span Mode: Auto/Manual



    General

    • Power Consumption: 360 mW
    • Interface: USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-Adapter)
    • Device Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and

    tablets, or Windows devices

    • Software Compatibility: HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
    • Protection Level: IP40
    • Drop Test Height: 1 m (3.28 ft)
    • Working Temperature Range: -10°C to 50°C
    • Storage Temperature Range -20°C to 60°C
    • Dimension: 26.6 × 26.6 × 25 mm
    • Weight Approx. 24 g
