Introducing the Pixfra Mile 2 M425 Thermal Monocular. Combines pocket-size compactness with a featherweight ergonomic design, ensuring portability and comfort for extended use. This device boasts peerless image quality, featuring an advanced 25mk NETD sensor and an ultra-high 640 resolution lens, which are enhanced by a P3 wide colour gamut AMOLED screen and a 20x magnification eyepiece.
Designed for versatility, the monocular comes with a variety of skin-friendly accessories, including a soft pouch, neck strap, and wrist strap, ensuring a comfortable carrying experience. The centred design prevents tilting when worn around the neck, offering balanced support. The innovative button layout is perfect for nighttime use, enabling flawless blind operation and enhancing user experience for one-handed use in dark environments.
The Pixfra Mile 2 M425 is powered by a long-lasting battery that offers 8-10 hours of use, making it suitable for overnight operations. It supports effortless sharing through stable Wi-Fi, allowing real-time monitoring for up to four individuals. The device is equipped with a vanadium oxide uncooled focal plane detector, providing effective pixels of 384 (H) x 288 (V) and a pixel pitch of 12 m. The monocular offers a detection range of 1,300 meters and a magnification of 2.70x, with digital zoom options of 1x, 2x, 4x, and 8x. The 0.32-inch OLED display screen has a resolution of 800 (H) x 600 (V), delivering clear and vivid visuals.
This thermal monocular is designed to withstand various environmental conditions, with an operating temperature range of -30C to +55C and a storage temperature range of -40C to +70C. It features an IP67 protection rating, ensuring durability and reliability in harsh conditions. The device includes built-in EMMC storage of 16 GB and supports analogue output via USB Type-C. With its rechargeable lithium battery of 3,200 mAh capacity, the Pixfra Mile 2 M425 provides more than 8 hours of operating life, making it a dependable tool for a variety of applications.
Features
- 6 (white-hot/black hot /iron red/ alarm/amber/emerald) Colour pallete
- 0.32 inch, OLED Display
- >/-8.0h of Battery life
- Built-in EMMC (16 GB) Storage
- Integrated compact pocket-size design
- Advanced 25mk netd sensor
- Ultra-high 640 resolution lens
- Versatile carrying options for all scenarios
- Perfect for nighttime use and flawless blind operation
- Innovation button layout
- Long-lasting 8-10 hour battery life
Specifications
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 384 (H) x 288 (V) |
| Pixel Pitch | 12 m |
| Spectral Range | 8m-14m |
| Sensitivity (Netd) | -/<25 mK at f/1.0 |
| Frame Rate | 50 Hz |
| Focal Length | 25mm |
| Field Of View | H: 10.9, V: 8.2/H: 19.2 m, V: 14.4 m (at 100 m) |
| Focus Control | Manual |
| Detection Range | 1,300 m (4,265.09 ft) |
| Magnification | 2.70 x |
| Colour Palettes | 6 (white-hot/black hot /iron red/ alarm/amber/emerald) |
| Close Focus Distance | 2 m (6.56 ft) |
| Aperture | F1.0 |
| Digital Zoom | 1 x, 2 x, 4 x, 8 x |
| Display Screen Dimensions | 0.32 inch, OLED |
| Screen Resolution | 800 (H) x 600 (V) |
| Diopter | 5D to +3D |
| Eye Relief | 15mm |
| Uniformity Correction | Auto, manual |
| Storage | Built-in EMMC (16 GB) |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Analogue Output | Yes, type-C. |
| Power Supply | 5 VDC/2 A, USB Type-C |
| Battery Type | Rechargeable Lithium battery |
| Battery Capacity | 3,200 mAh |
| Battery Operating Life | -/>8.0h |
| Operating Temperature | 30 C to +55 C (22 F to +131 F) |
| Storage Temperature | 40 C to +70 C (40 F to +158 F) |
| Protection | IP67 |

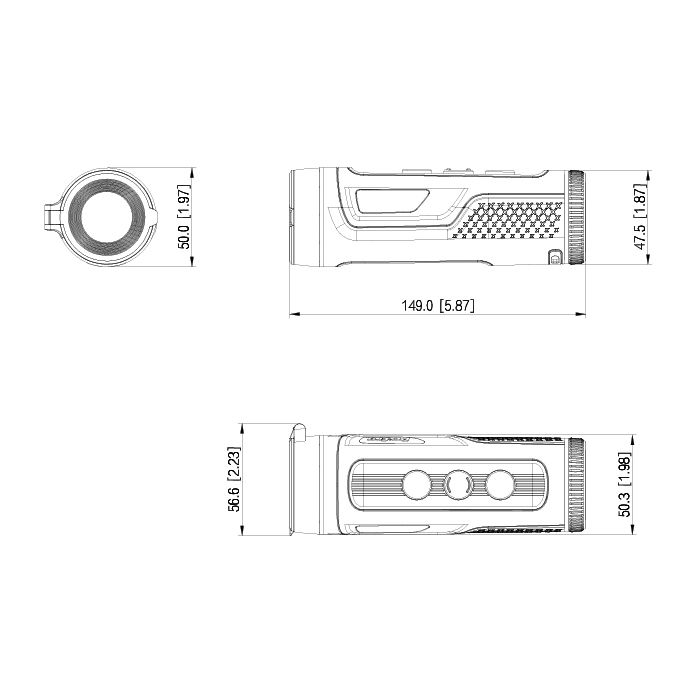

| Product Dimensions | 157.5 mm x 56.6 mm x 50.3 mm (6.20" x 2.23" x 1.98") (L x W x H) |
| Net Weight | <320 g (0.71 lb) |
