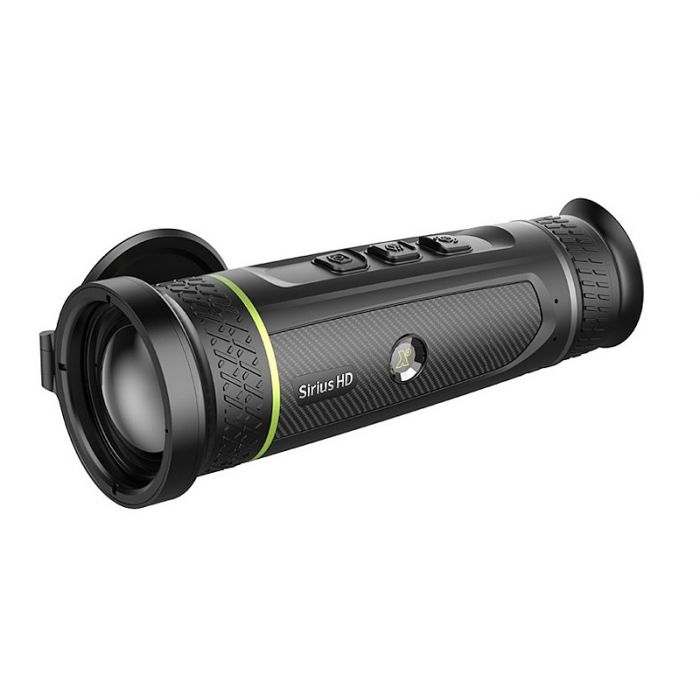

Pixfra Sirius HD SA50 Thermal Monocular

Introducing the Pixfra Sirius HD SA50 Thermal Monocular. The Pixfra Sirius HD PFI-SA50 Thermal Monocular is a state-of-the-art device designed for advanced thermal imaging applications, combining cutting-edge technology with ergonomic design features. At its core, it is powered by a vanadium oxide uncooled focal plane detector with a resolution of 1280 x 1024 pixels, ensuring exceptional image clarity and sensitivity. The spectral range of 8 to 14 micrometers and a NETD sensitivity of less than 18 mK at f/1.0 enable precise detection of heat signatures even at considerable distances, with a detection range reaching up to 2,600 meters. The devices focus is manually adjustable via the thermal focus control, allowing users to fine-tune the focus for different distances, with a close focus capability of 3 meters, making it versatile for both long-range surveillance and near-field observation.

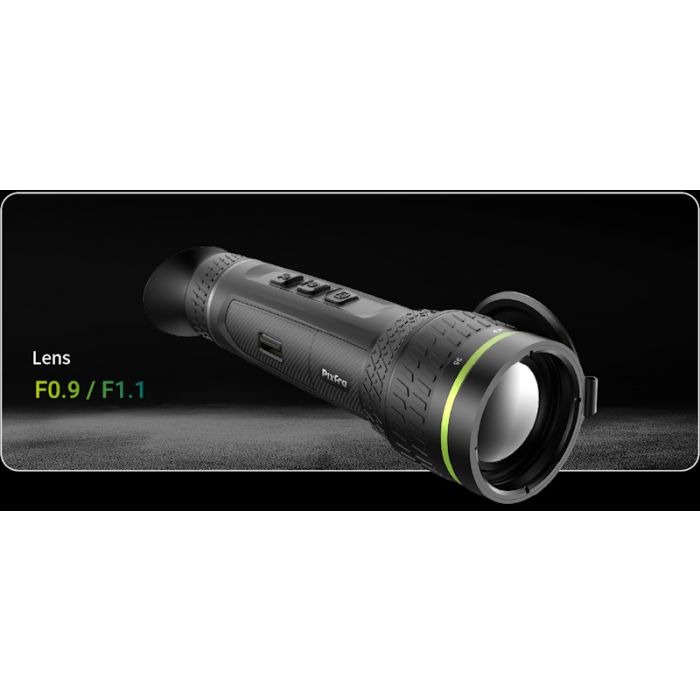

The Sirius HD PFI-SA50 features a high-resolution OLED display with a 1920 x 1080 pixel resolution, providing crystal-clear visuals in real-time. It offers up to six different colour palettes-including white-hot, black hot, iron red, alarm, emerald, and amber-giving users the flexibility to optimise thermal contrast according to their environment and specific requirements. The device supports multiple digital zoom levels (1x, 2x, 4x, 8x), along with a 1.72x optical magnification, which facilitates detailed observation of distant objects. Equipped with high-quality dual-field lenses that can adapt from 35mm to 70mm focal lengths, the monocular delivers a wide field of view and high optical performance, making it suitable for various tactical, search and rescue, or wildlife observation scenarios.

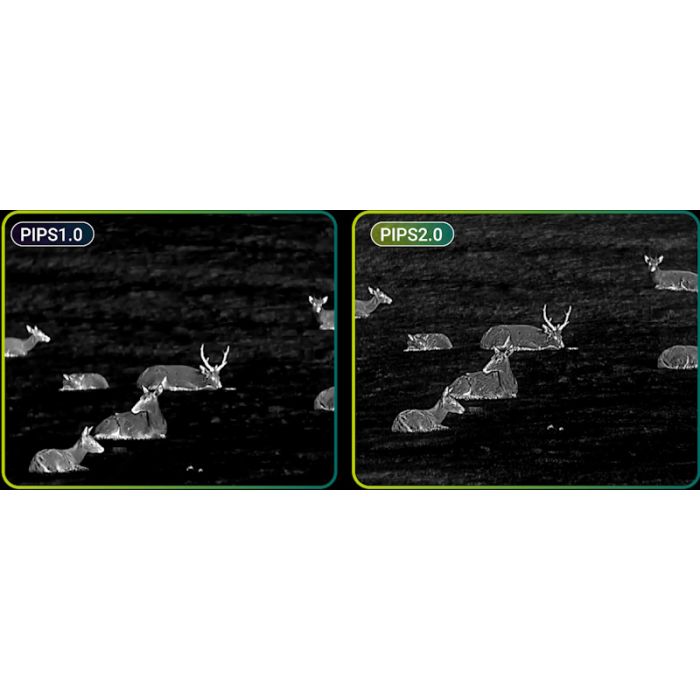

Connectivity and storage are seamlessly integrated into the Pixfra Sirius HD PFI-SA50. It connects effortlessly to a mobile app via Wi-Fi, allowing for remote control, live-streaming, and image sharing directly from the device. Its built-in 64 GB EMMC storage provides ample space to record videos and capture snapshots during operations, supported by a suite of image enhancement features like PIPS 2.0, which offers pioneering image processing to improve clarity and detail. The device's ergonomic buttons are thoughtfully laid out for ease of use, complemented by a crystal breathing power button that ensures reliable operation. Additionally, the unit is built with rugged durability in mind, boasting an IP67 rating that protects against dust, water, and harsh weather conditions, making it suitable for field use in extreme environments.

Powering the Sirius HD PFI-SA50 is a replaceable 18650 battery, offering up to 4.5 hours of operation at 25C with Wi-Fi off-ensuring sustained use during extended missions. The device also features a USB Type-C port for charging and data transfer, with a robust power supply of 5 VDC/2 A. Its compact dimensions (208.4 mm x 70 mm x 80.9 mm) and lightweight design (544 grams) make it highly portable, while its operating temperature range from -30C to +55C ensures reliable performance across diverse climates. Whether used for tactical surveillance, search and rescue missions, or wildlife monitoring, the Pixfra Sirius HD PFI-SA50 offers an unparalleled combination of thermal detection capabilities, connectivity, durability, and user-friendly features, making it a top-tier choice for professionals demanding precision and reliability in thermal imaging.

Features

• Up to 6 Colour Palettes
• FHD OLED display
• Up to 4.5h Max Battery Life
• Built-in EMMC (64 GB)
• Vanadium oxide uncooled focal plane detector
• Ergonomic buttons layout
• Crystal breathing power button
• Carbon fibre decorative texture design
• Replaceable 18650 battery
• High optical magnification
• Connects to the mobile app through Wi-Fi
• IP67 rated

Specifications
