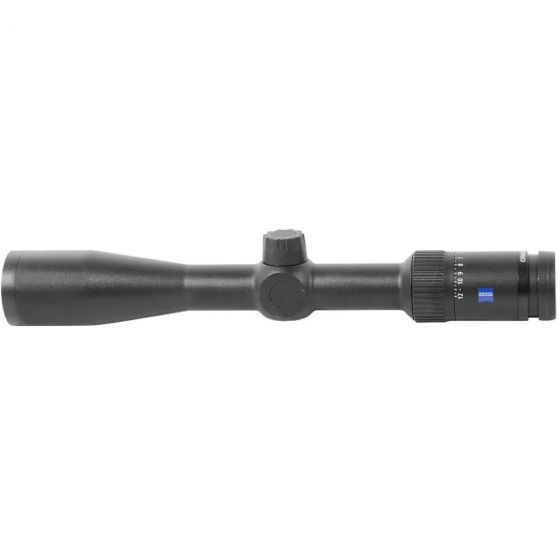

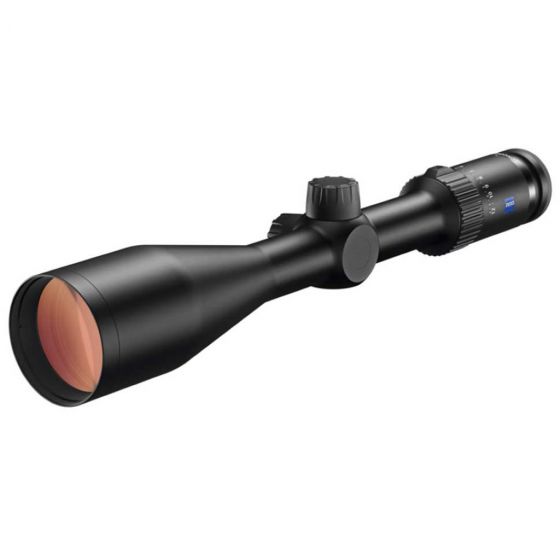

The Conquest V4 family is based on a 4x zoom ratio, incorporates a 30 mm main tube, and consists of the: 3-12x44, 3-12x56, 4-16x44, 4-16x50, and 6-24x50 models. Each model delivers 90% to-the-eye light transmission, offers .25 MOA click values, capped windage turret or external locking windage turret, a large range of total elevation and windag travel, and various traditional and smart second focal plane reticles

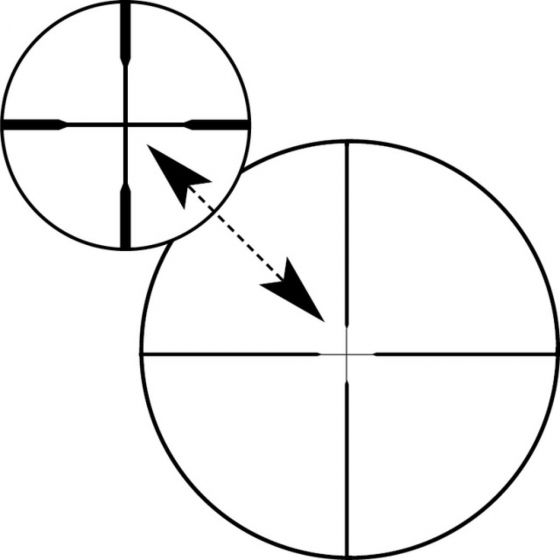

Reticle 20non-illuminated
The equally fine Reticle 20 also sits in the 2nd image plane. It therefore offers particularly precise aiming for long-range shooting in daylight. With the 20, the posts are in the shape of arrows pointing to the fine lines in the middle. This makes it possible to aim with great precision at particularly small targets.
| Magnification | 3 – 12 x |
| Objective | 44mm |
| Exit pupil diameter | 8.9 – 3.7 mm |
| Twilight factor | 9.0 – 23.0 |
| Field of view | 38ft – 9.5 ft |
| Angular field of view (real) | 7.24° – 1.81° |
| Diopter Range | + 2.0 | − 3.0 dpt |
| Eye relief | 90 mm (3.54″) |
| Parallax setting | 100 yds |
| Tube diameter | 30 mm |
| Coating | LotuTec® / Zeiss T* |
| Fogproog | Nitrogen-purged |
| Waterproof | 400mbar (submerged 13ft for 2hrs) |
| Length | 13.8″ |
| Weight | 516g |
