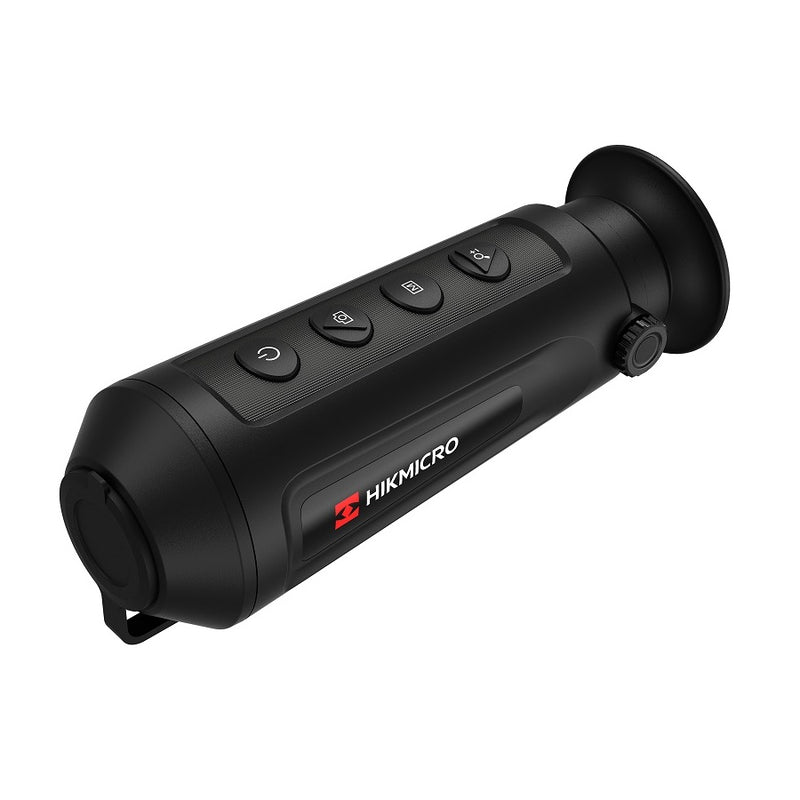

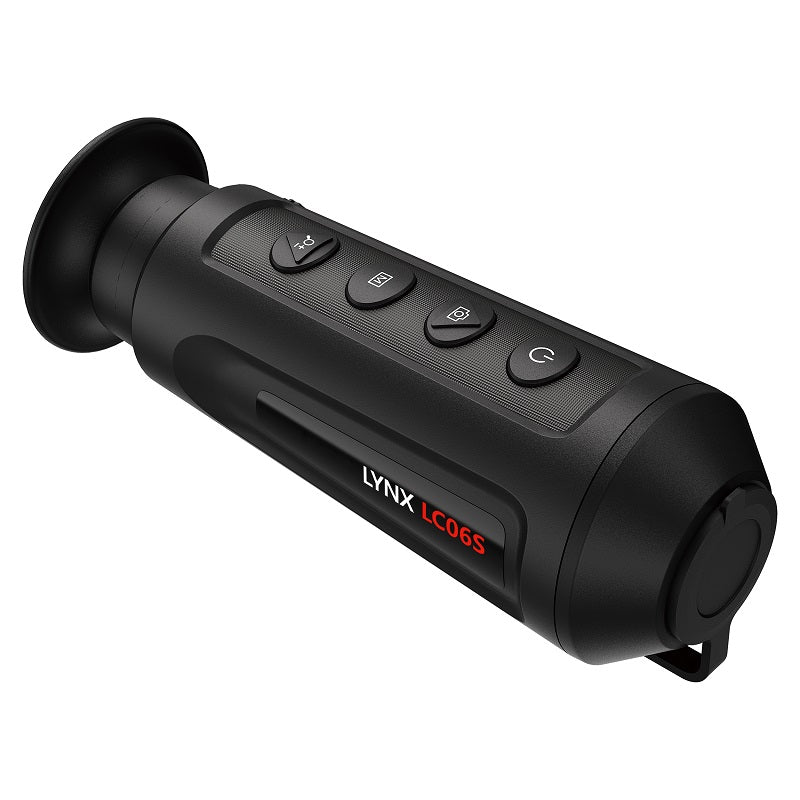

Lynx LC06S thermal monocular is equipped with a 160 × 120 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching, and rescuing, etc.
Key Features
- High sensitivity thermal module with 160 × 120 resolution
- NETD < 35 mK (@25°C, F# = 1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- 800 × 600 resolution 0.32” OLED display
(Previous model – LC06: 720 x 540 resolution 0.2” OLED display) - Built-in rechargeable lithium battery
- Up to 10 hours continuous operation
- Support hotspot
- Type-C Interface
Specifications
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 160 × 120
- Frame Rate: 50 Hz
- Pixel Interval: 17 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 35 mK (@25°C, F# = 1.1)
- Lens (Focal Length): 6.2 mm, F1.1
- Detection Range: 250 m
- Focus Mode: Focus Free
- Focusing Distance: 1 m
- Magnification: 1.0× to 4.0× (4×)
- Field of View (H × V), Degrees / m @100 m: 24.7° × 18.7° / 43.8 m × 32.9 m
Image Display
- Display: 800 × 600, 0.32”, OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit Pupil: 20 mm
- Eye Relief: 6 mm
- Diopter (Range): -5D to +4D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
System
- Record Video: Yes
- Capture Snapshot: Yes
- Audio Recording: Yes
- Standby Mode Yes
- Storage: Built-in memory module (8 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement : Yes
Power Supply
- Battery Type: Rechargeable Lithium Battery
- Battery Operating Time : 10 hours continuous running with CVBS and hotspot off (@25°C);
- hours continuous running with CVBS and hotspot on (@25°C)
- Type-C Power Supply: DC 5 V/2 A; Supports External Power Supply
General
- Protection Level: IP67
- Dimension: 158.4 mm × 60.4 mm × 57 mm
- Working Temperature: -20°C to 55°C
- Weight: 250 g
What's in the box
- HIKMICRO Lynx LC06S Handheld Thermal Monocular
- Quick Start Guide
- Non-dust Cloth
- USB Cable
- Protective Bag
- Wrist Strap
