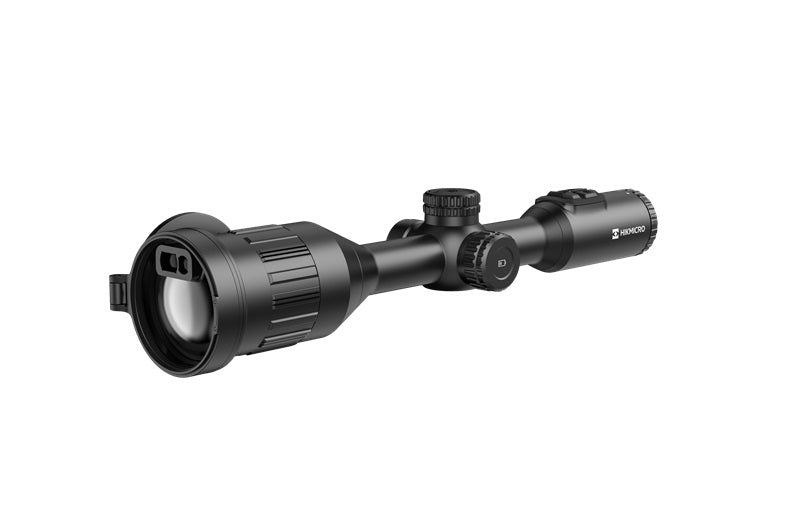

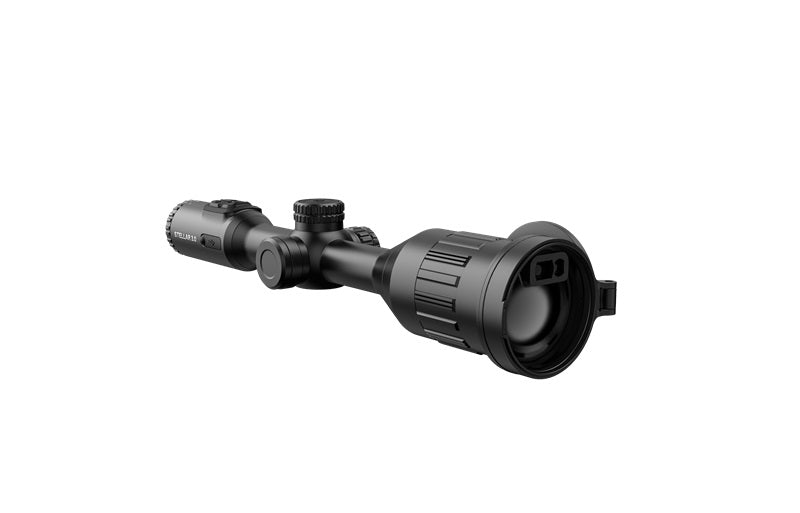

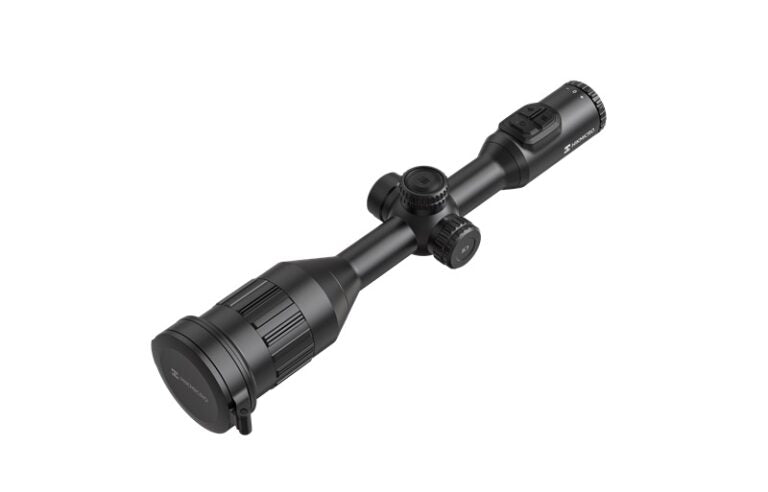

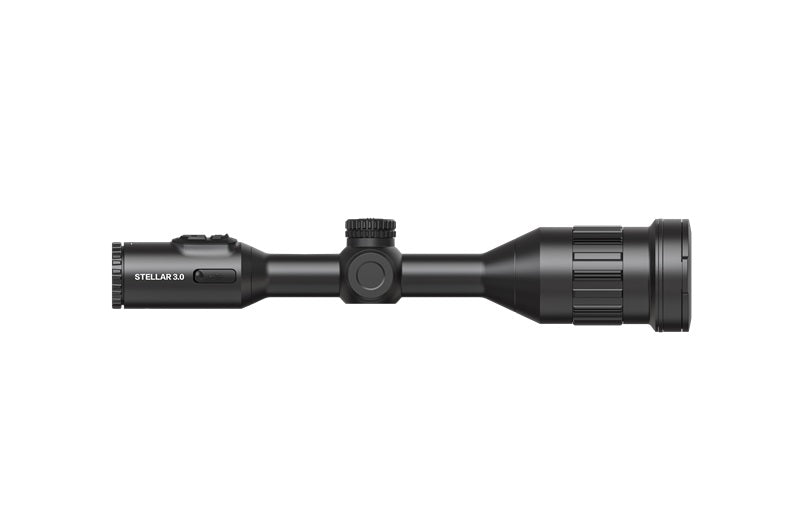

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope. The SX60L 3.0 is equipped with a 1,280×1,024 @ 12 μm thermal detector, with much higher sensitivity (NETD＜18mK) and the latest image processing algorithm (Image Pro 2.0), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2,560×2,560 1.03” AMOLED larger display, SX60L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1,000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.
Key Features
- 1,280 x 1,024 resolution @12 μm thermal detector
- High sensitivity thermal module NETD<18 mK (@ 25°C, F# = 1.0)
- 60 mm, F1.0 lens with detection range up to 3,100 m
- 2,560 × 2,560 resolution 1.03-inch OLED display
- Built-in lens laser rangefinder up to 1,000 m, with ballistic calculation
- Rechargeable internal batteries and external battery, 10h continuous operation
- High shock resistance up to 1,000 g/0.4 ms
Technical Specifications
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 1,280 × 1,024
- Frame Rate: 25 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 18 mK (@ 25°C, F# = 1.0)
- Lens (Focal Length): 60 mm, F1.0
- Focus Mode: Focus Ring
- Detection Range: 3,100 m
- Focusing Distance: 6 meters
- Magnification: 2.5×-28.5×; Support 1× step value of continuous zooming
- Field of View (H×V), Degrees / m @100 m: 14.6° × 11.7°/25.6 m × 20.5 m
Image Display
- Display: 2,560 × 2,560, 1.03-inch OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 45 mm
- Diopter (Range): -5D to 3D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
- Image Pro 2.0: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
System
- Record Video: On-board Video Recording
- Capture Snapshot: Yes
- Audio Recording: Yes
- Recoil-activation Recording: Yes
- Standby Mode : Yes
- Storage: Built-in EMMC (64 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Zeroing Profiles: 5
- Recoil: 1,000 g/0.4 ms
- Freeze Zeroing: Yes
- Local Album: Yes
Power Supply
- Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
- Battery Operating Time: 10 hours continuous running (@ -20°C, Zoom Pro, LRF on)
- Type-C Power Supply : 5 V DC/2 A, USB Type-C interface; Supports QC3.0
General
- Mounting: Standard 30 mm
- Protection Level: IP67
- Dimension: 452.6 mm x 94.3 mm x78.9 mm
- Weight: 860 g without external battery
- Working Temperature: -30°C to 55°C (-22°F to 131°F)
- Centre Height: 41 mm
Laser Rangefinder
- Safety Class for Laser: Class 1
- Wavelength: 905 nm
- Measuring Range: 1,000 m
- Measurement Accuracy: ±1 m
- Measuring Range: 10 m
