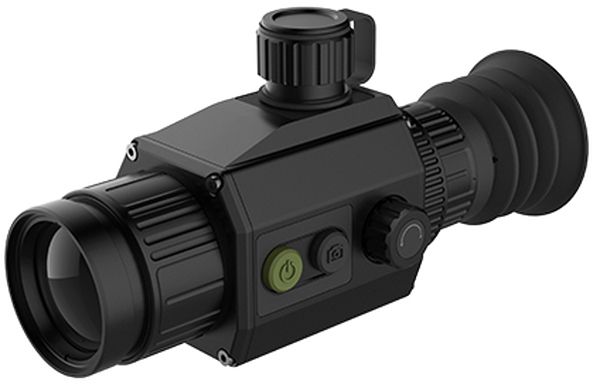

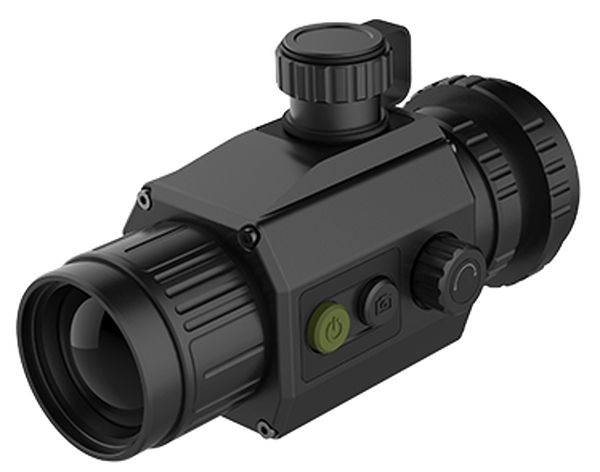

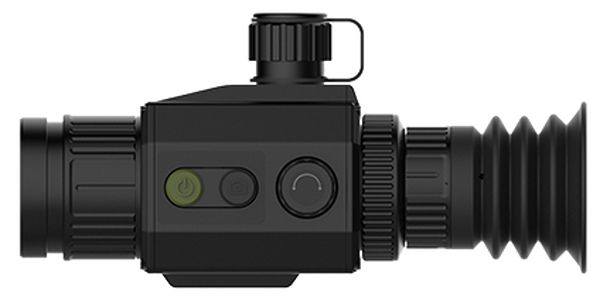

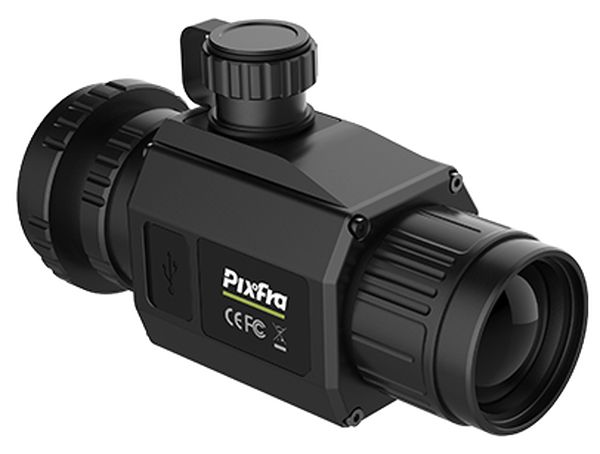

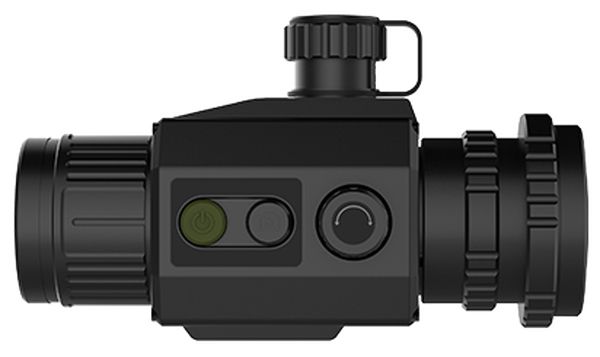

Introducing the Pixfra Chiron C635 640x512 Thermal Imaging Monocular - 35mm, Black, an exceptional imaging device that combines cutting-edge technology with versatility to deliver outstanding visual performance. With its impressive specifications, including a resolution of 640x512 and a lens size of 35mm, this product sets a new standard for image quality and creative possibilities.
The Pixfra Chiron C635 stands out with its remarkable resolution of 640x512 pixels, offering superior clarity and detail in every image captured. Whether you're a professional photographer, an outdoor enthusiast, or a security specialist, this device ensures that every visual is rendered with exceptional precision, allowing you to capture the smallest nuances and intricate elements with stunning accuracy.
Equipped with a 35mm lens, the Pixfra Chiron C635 strikes a perfect balance between versatility and focus. This lens size provides a versatile field of view, allowing you to capture a wide range of subjects and scenes with ease. Whether you're photographing landscapes, portraits, or engaging in surveillance operations, the 35mm lens offers optimal framing and depth, resulting in visually captivating images with remarkable clarity and professional-grade aesthetics.
The Pixfra Chiron C635 is designed with user convenience in mind. Its compact and lightweight build ensures portability, making it easy to carry and handle during extended shooting sessions. The ergonomic design further enhances comfort, minimizing fatigue and enabling you to stay focused on capturing the perfect shot.
In addition to its outstanding specifications, the Pixfra Chiron C635 incorporates advanced features to enhance your imaging experience. It may offer intuitive controls and user-friendly interfaces, making it effortless to navigate through settings and options. Additional functionalities such as image stabilization, customizable shooting modes, and compatibility with external accessories further expand the creative possibilities available to you.
Whether you're a professional seeking the highest level of image quality or an enthusiast looking to elevate your photography skills, the Pixfra Chiron C635 is a reliable companion that surpasses expectations. With its impressive resolution of 640x512 and a 35mm lens size, this device empowers you to capture breathtaking visuals with outstanding clarity, precision, and artistic expression. Experience the exceptional performance of the Pixfra Chiron C635 and unlock a world of creative possibilities.
Features
- Vanadium oxide uncooled focal plane detector
- Ultra-low power consumption
- Connects to the mobile app through Wi-Fi
- Calculates distance using video analysis
- Lightweight and portable
- Picture in picture
- Impact resistance reaches up to 1 000 g/1 ms
- RAR (Recoil Activated Recorder)
- 1440 x 1080 OLED screen
- Metal housing
- IP67 rated
Specifications
Detector Type | Vanadium oxide uncooled focal plane detector |
Effective Pixels | 640 (H) x 512 (V) |
Pixel Pitch | 12 um |
Spectral Range | 8 um - 14 um |
Sensitivity (NETD) | <30 mK@f/1.0, 25C |
Focal Length | 35 mm |
Aperture | F1.0 |
Field Of View | H: 12.4-Degrees V: 10.0-Degrees |
Focus Control | Fixed |
Close Focus Distance | 3 m (9.84 ft) |
Detection Distance | 1 800 m (5,905.51 ft) |
Magnification | 1.84 x |
Frame Rate | 50 Hz |
Screen | 1440 x 1080, 0.41 inch, OLED |
Color Palettes | 6 (white hot/black hot/iron red/alarm/emerald/amber) |
Video Compression | H.264 |
Diopter Adjust | -5 D to +5 D |
Eye Relief | 44 mm (1.73") |
Exit Pupil | 6 mm |
Digital Zoom | 1x 2x 4x 8x |
Reticle | Multiple Patterns & Color Options |
Zeroing | Yes |
Video Recorder | Yes |
Snapshot | Yes |
WiFi Hotspot | Yes |
Hot Spot Track | Yes |
Video Distance Measurement | Yes |
FFC Calibration | Auto manual immediately |
Standby Mode | Yes |
PIP (Picture In Picture) | Yes |
DPC (Defective Pixel Correction) | Yes |
RAR (Recoil Activated Recorder) | Yes |
MIC | Yes |
Storage Built-In | 16 GB |
Battery Type | Replaceable and rechargeable 18650 battery |
Battery Life | 6 h@25 C |
Power Supply | 5 VDC/1 A |
Port | USB Type-C |
Anti-Reverse Battery Connection | Yes |
Overvoltage Protection | Yes |
Operating Temperature | -30 C to +55 C (-22 F to +131 F) |
Operating Humidity | <95% |
Max. Recoil | 1 000 g/1 ms |
Protection Grade | IP67 |
Packaging Dimensions | 267 mm x 227 mm x 116 mm (10.51" x 8.94" x 4.57") (L x W x H) |
Product Dimensions | 180.8 mm x 64.1 mm x 87.7 mm (7.12" x 2.52" x 3.45") (L x W x H) |
Gross Weight | 1 kg (2.20 lb) |
Net Weight | <460 g (1.01 lb) (battery excluded) |
