- 384x288 Microbolometer and 640x400 AMOLED display
- 1400+ yard detection range
- Built-in photo and video recording with Wi-Fi connectivity and Stream Vision 2 App Supported
- 8 color palettes
THE AXION 2 XQ35 HAND HELD THERMAL IMAGER USES A NEW APPROACH TO IMAGE OPTIMISATION DEPENDING ON THE PURPOSES AND CONDITIONS OF OBSERVATION AND PROVIDE HIGH-QUALITY RENDERING OF BOTH TARGET OBJECTS AND BACKGROUND.
Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.
Axion 2 XQ35 is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.
The Axion 2 XQ35 is equipped with a European Lynred sensor with a resolution of 384x288 pixels (pixel size 17 microns), which qualitatively captures a useful signal under difficult observation conditions, such as rain, fog and high atmospheric humidity at the observation site.
Germanium F35/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Axion 2 XQ35 thermal imaging device sensor is distinguished for its clarity and detailing.
A high-capacity APS5 rechargeable battery provides up to 11 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special charger or inside the device from a PC, household power system or power bank via USB-C. The same sources are used for external power supply of a thermal imaging device.
In the Axion 2 XQ35 thermal imager, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.
A powerful F35/1.0 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1300 m away in complete darkness.
The Axion 2 XQ35 thermal imaging device is suitable for viewing wide areas, observing in motion or for moving objects – the linear field of view is 18.2 m at 100 m distance or 10.7° in angular values. The "Picture in Picture" function activates an additional window at the top of the display, in which the central area of the observed scene is shown magnified 2 or 4 times. This makes it possible to combine the information content of a wide field of view with detailed observation of the selected object.

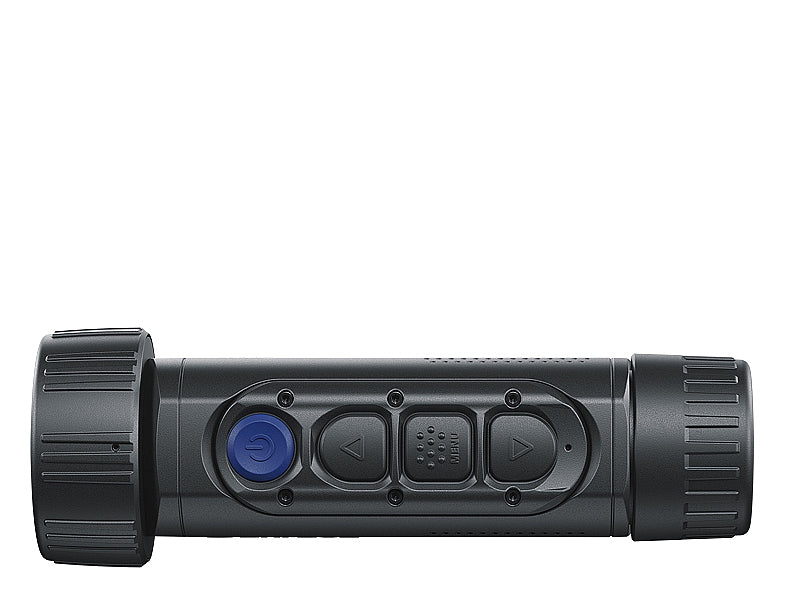

The Axion 2 XQ35 has a space-saving and pocket-sized design and weighing 350 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.
Technical Specifications:
- Sensor - 384x288 17 Micron
- Lens - F35/1.0
- Magnification - 2-8x
- Field of View @ 100 yards - 10.7х8 / 18.2
- Up to 1300m Detection Range
- 50hz Frame Rate
- 640x400 AMOLED Display
- Built in Recording
- Built in WiFi
- IPX7 Rated
