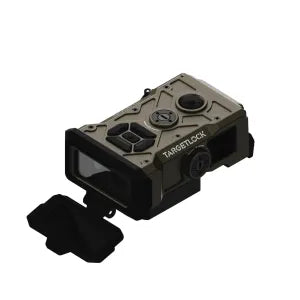

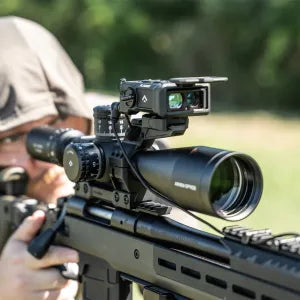

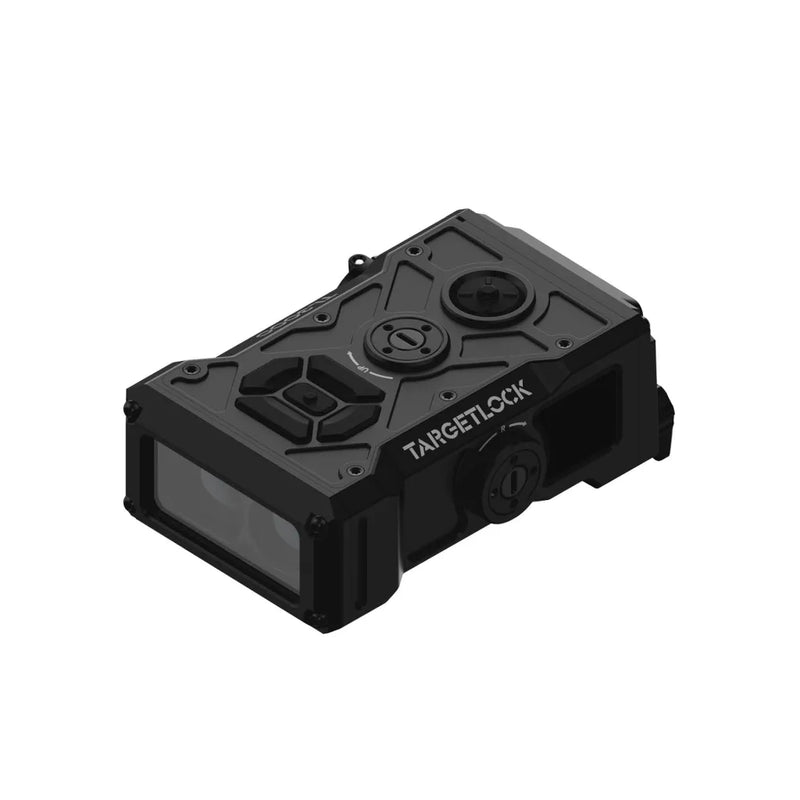

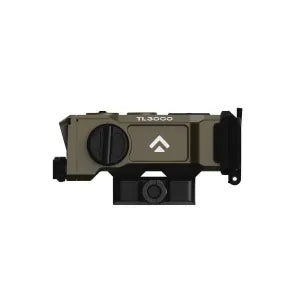

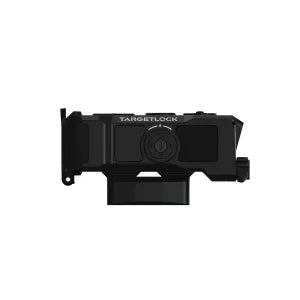

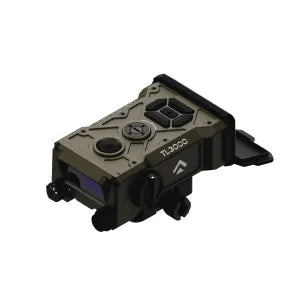

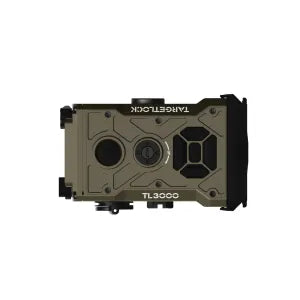

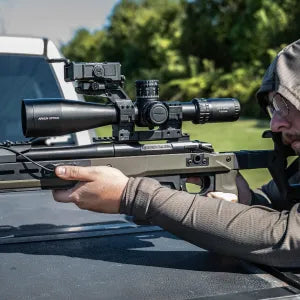

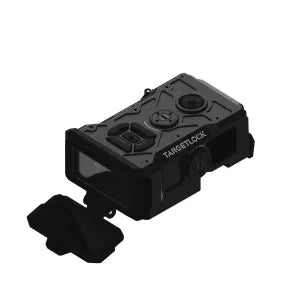

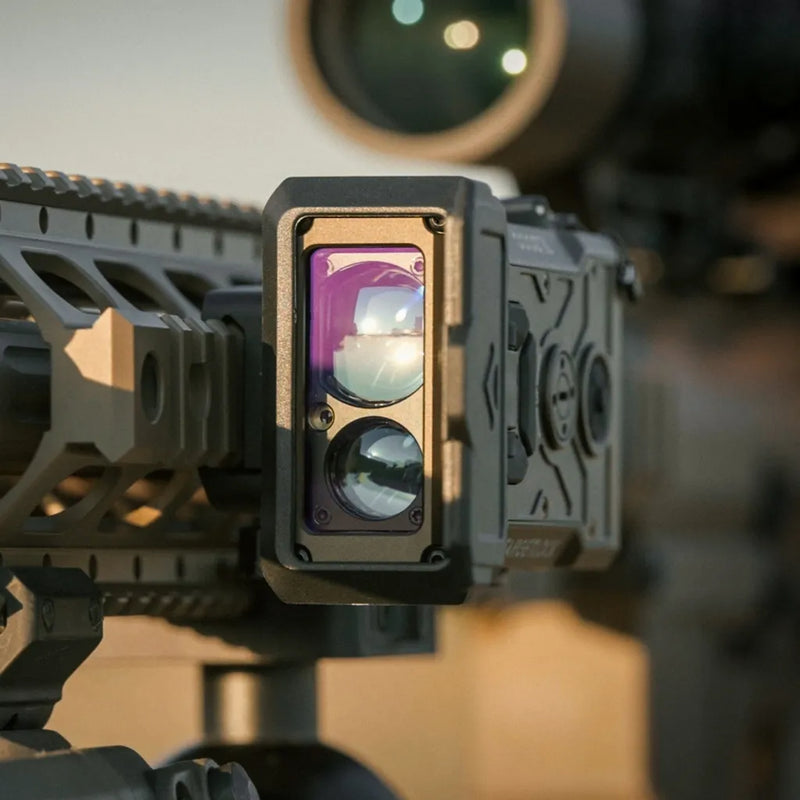

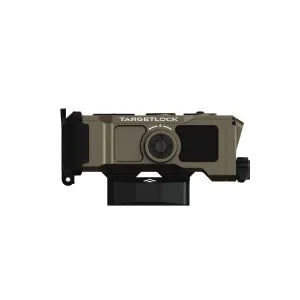

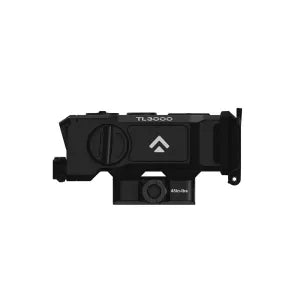

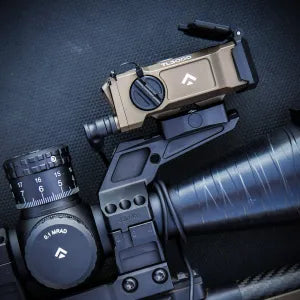

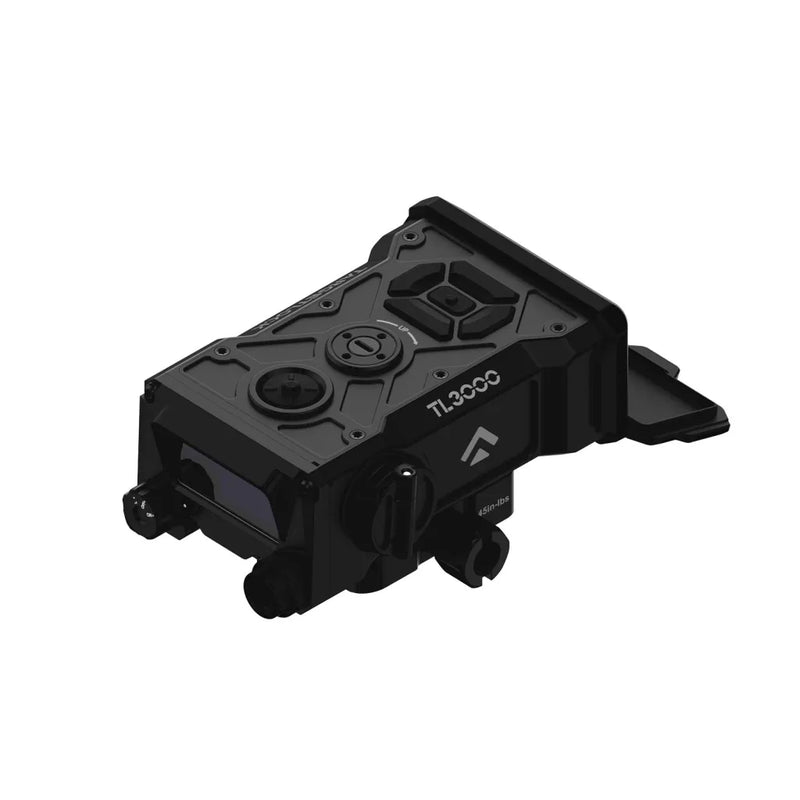

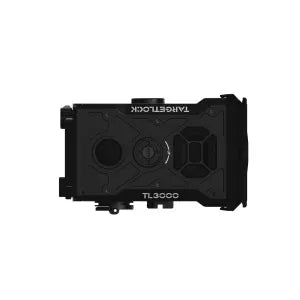

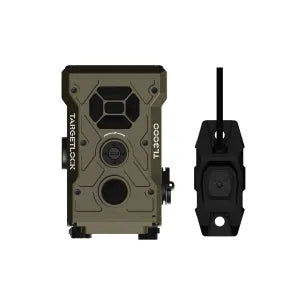

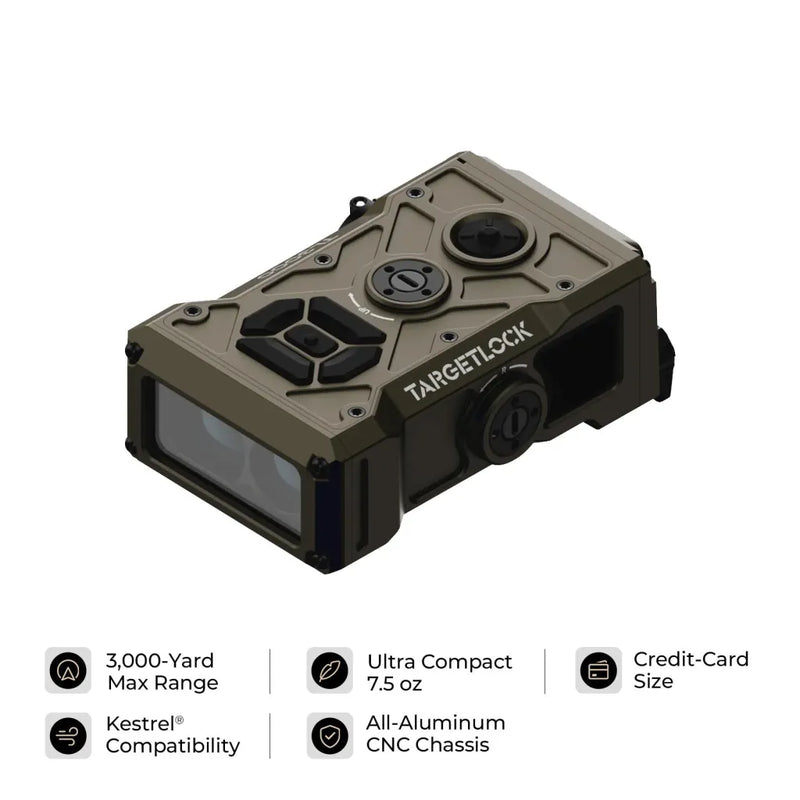

Find It. Lock It. Hit It. Weapon-mounted ballistic laser rangefinder with the onboard DNT Ballistic Engine and Kestrel® connectivity, in a credit-card-sized 213 g aluminium chassis.
2,740 m (3,000 yd) max range • ±0.9 m accuracy • 10 ballistic profiles • Bluetooth + DNT app • co-aligned green laser • wired pressure switch included • 2 × Nitecore NL169R USB-C rechargeable batteries included • IP67 • .50 BMG recoil rated.
Specifications
| Weight | 0.29 kg |
|---|---|
| Colour |
Black, FDE |
| LRF Laser Wavelength |
905 nm |
| LRF Laser Class |
Class 1 |
| Max Ranging Distance |
2,740 m (3,000 yd) |
| Max Ranging Distance on Tree Trunk |
1,830 m (2,000 yd) |
| Max Ranging Distance on Medium Game |
1,000 m (1,100 yd) |
| Ranging Resolution |
0.1 yd |
| Ranging Accuracy |
±0.9 m (±1 yd) |
| Visible Laser Wavelength |
515 nm Green Laser |
| Visible Laser Class |
Class 2 |
| Ballistic Engine |
DNT Ballistic Engine |
| Profile Storage Capacity |
10 Independent Ballistic Profiles (Slots A–J) |
| Configurable Parameters |
Zero Distance, Scope Height, Muzzle Velocity, Bullet Diameter, Bullet Weight, Bullet Length, Ballistic Coefficient (G1/G7), Temperature, Altitude, Twist Direction, Twist Rate |
| Wireless Connectivity |
Bluetooth (On by Default, Toggleable) |
| Wind Meter Compatibility |
Kestrel® |
| Mobile App Compatibility |
DNT App (iOS / Android) for Profile Sync & OTA Updates |

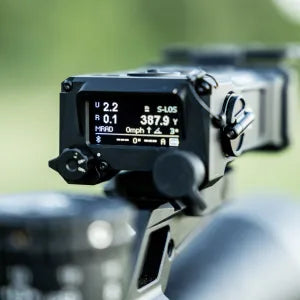

| Display Type |
OLED Display with Anti-Reflection Coating |
| Suggested Battery Type |
High Capacity, Non-Rechargeable CR123A Battery (Not included) |
| Suggested Battery Life |
5,000 Single Pulse Measurements / 6 hours under RWDC. *Real World Duty Cycle (RWDC): screen brightness set to Level 2, with one single-pulse range measurement taken every 3 seconds at 457 m (500 yards). |
| Included Battery Type |
2 × Nitecore NL169R Rechargeable 16340 Battery (950 mAh, same format as CR123A). Charges via its built-in USB-C port, no separate charger needed |
| Included Battery Life |
3,000 Single Pulse Measurements / 2.5 hours under RWDC (per battery charge) |
| Power Control |
Mechanical Rotary Switch (OFF / ON / L) |
| Dimensions (L×W×H) |
92 mm × 59 mm × 35 mm / 3.6 in × 2.3 in × 1.4 in |
| Net Weight |
213 g / 7.5 oz |
| Mount Dimensions (L×W×H) |
42 mm × 45 mm × 15 mm / 1.7 in × 1.8 in × 0.6 in |
| Mount Weight |
42 g / 1.5 oz |
| Mounting Interface |
Picatinny |
| Ingress Protection Rating |
IP67 |
| Recoil Rating |
.50 BMG |
| Operating Temperature |
-20°C to 50°C / -4°F to 122°F |
