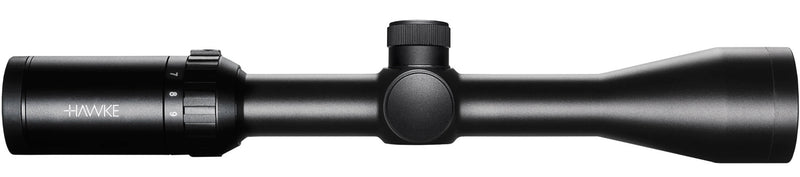

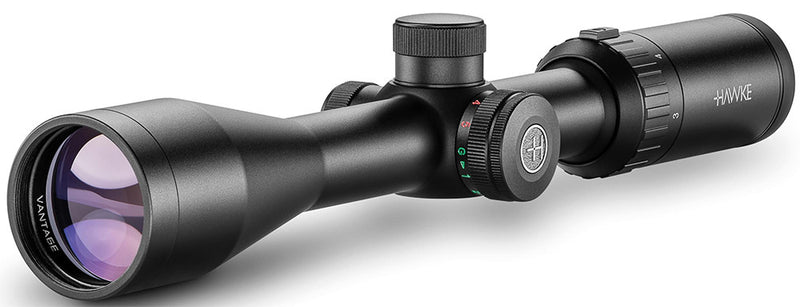

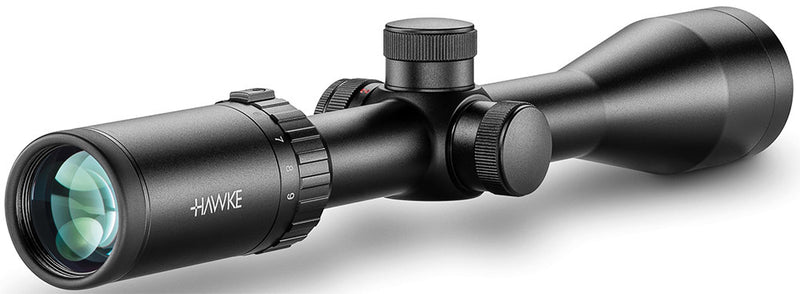

The Hawke Vantage 3-9x40 IR Rimfire .22 High Velocity Reticle is designed as a multi-purpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in bright sunlight. The 40mm objective draws in generous amounts of light versus smaller objectives while maintaining a low-profile.
Covered turrets help guard against accidental adjustments, while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminium housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.

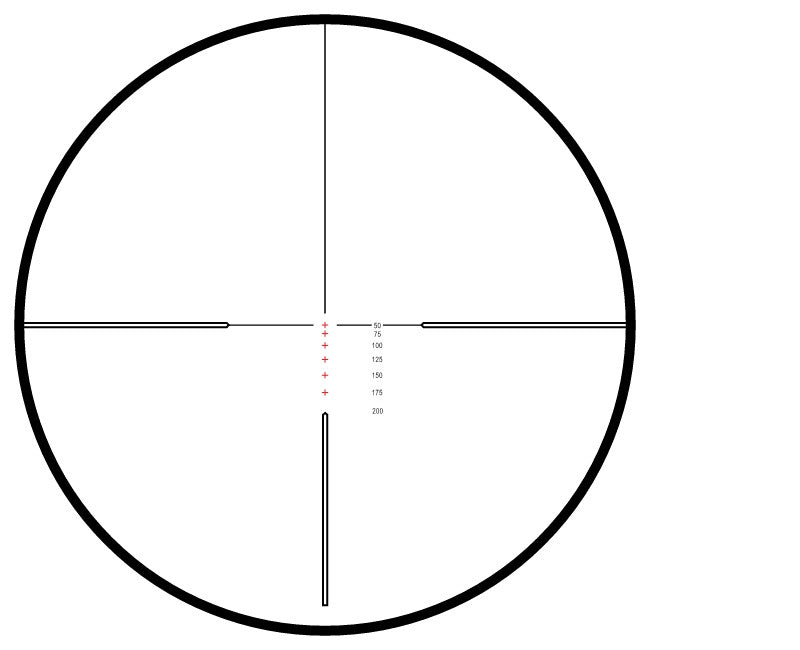

Registered reticle design exclusive to Hawke. Aim points calculated for your specific calibre. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification. Designed for the .22 LR High Velocity (HV) caliber. Zero on 9x magnification at 50 yards and all aim points are pre-calculated. 1260 fps (384 m/s). The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 7.8x.
- Capped Low-Profile Turrets
- 1 Inch Mono-Tube Chassis
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
|Eye relief||89mm (3.5")|
|Focus/Parallax Fixed||69m (75yds)|
|Field of View||13-4.2m 100m (39-12.7ft 100yds)|
|Exit Pupil||13.3-4.4mm (0.5-0.2")|
|Illumination||Red / Green|
|Reticle||Rimfire .22 LR HV|
|Elevation Increment||1/4 MOA|
|Elevation Adjustment Range||100 MOA|
|Windage Increment||1/4 MOA|
|Windage Adjustment Range||100 MOA|
|Ocular Type||Fast Focus|
|Lens Coating||Fully Multi-Coated - 11 Layers|
|Power Selector Style||Knurled Posi-Grip|
|Focal Plane||Second Focal Plane (SFP)|
|Turret Type||Low Profile|
