Optimized Kahles AMV coatings realize nearly loss-free transmission in the critical spectral range of light (about 520 nanometers). This allows to extract the very smallest reserves of light during the lowest light shooting conditions.
Complex optical designs
with up to four objective lenses creates an unprecedented distortion-free image with an extremely wide, edge-defined field-of-view.
Extremely durable housing machined by state-of-the art production methods from a single piece of high-grade material.
Adjustment Mechanism
- Extremely precise adjustment mechanism creates absolute repeatability.
Ocular
– Wide angle ocular with safe eye relief optimized for excellent viewing comfort and quick acquisition.

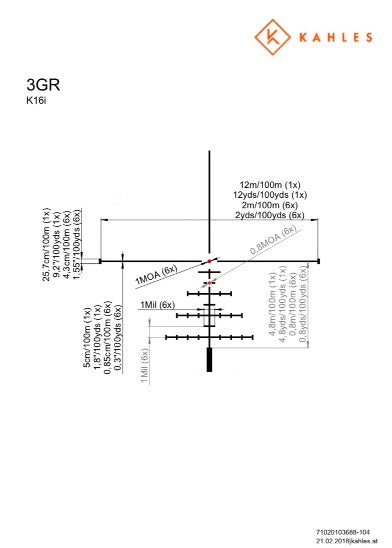

Reticle
– Robust etched glass reticle in second image plane does not change size with increased magnification. A decisive advantage during long distance shooting.

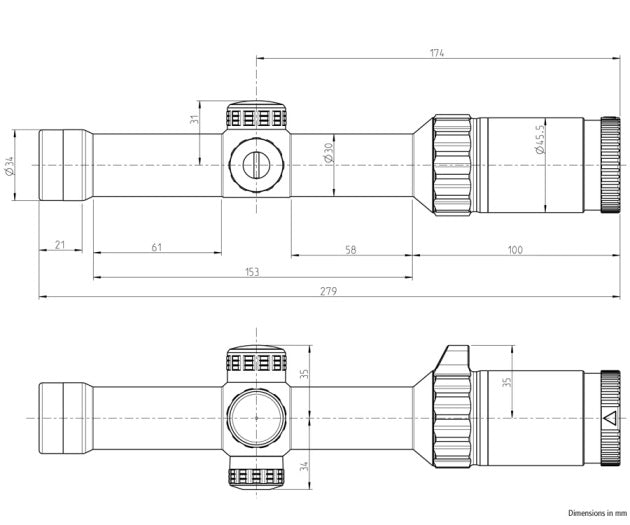

Technical Data
Magnification: 1-6
Eye relief: 3.74 in
Field of view: 126.9-20.1 ft/100 yds
Diopter compensation: +2/-3.5 dpt
Twilight factor (DIN 58388): 3.1-12.0
Impact correction per click: 0.1 MRAD
Adjustment range (E/W): 79.2/79.2 in/100 yds | 22.0 / 22.0 MILS | 75.6 / 75.6 MOA
Tube diameter: 30 mm / 1.18 in
Length: 10.9 in
Weight: 16.9 oz
Focal plane: 2
Illuminated: Yes
Warranty: 10 years
