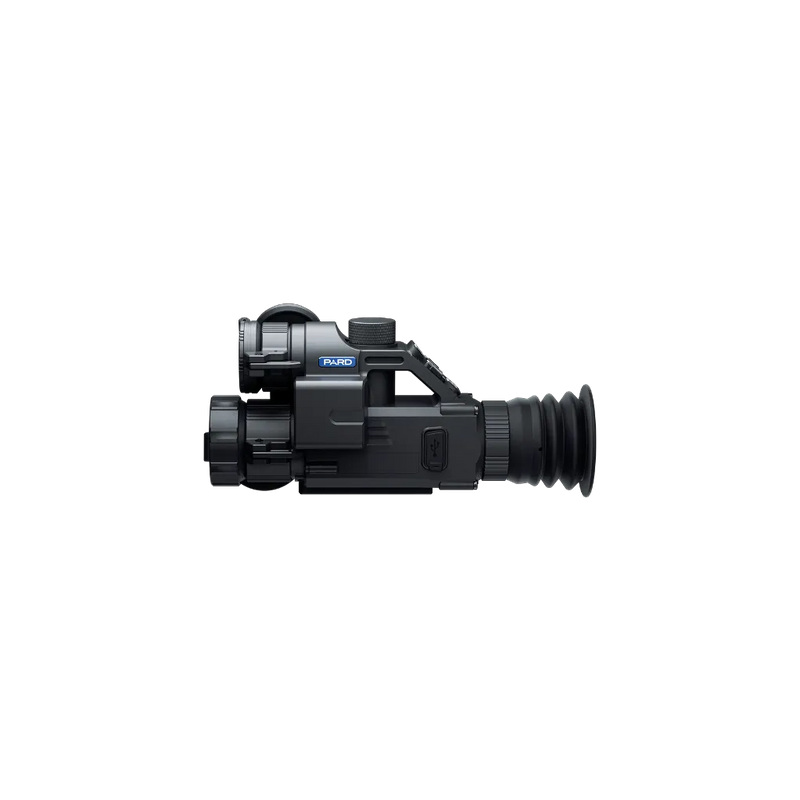

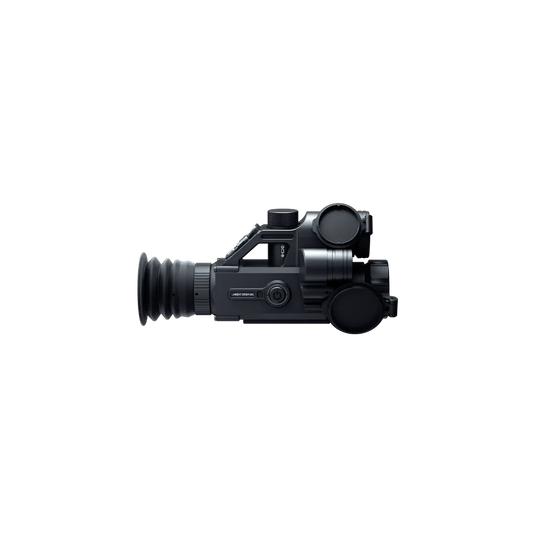

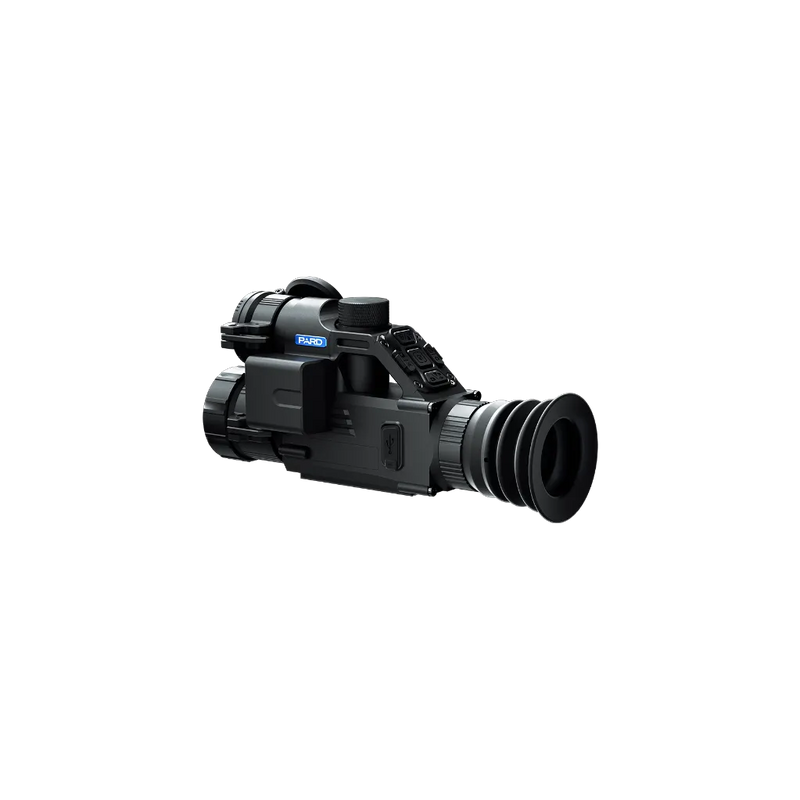

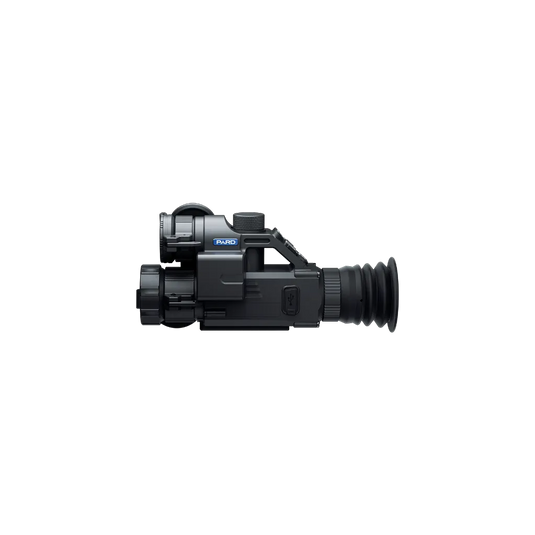

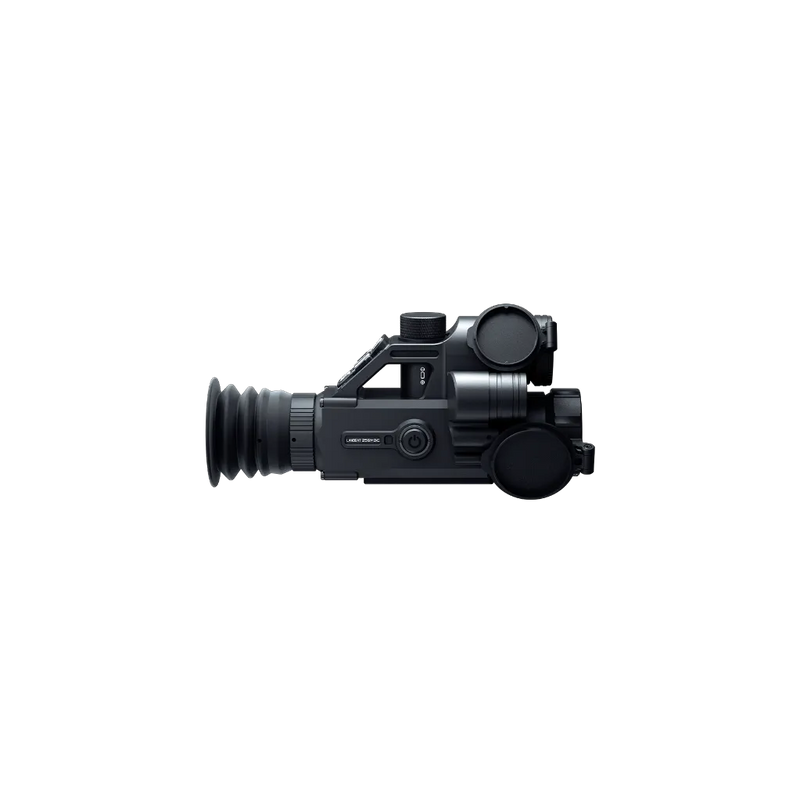

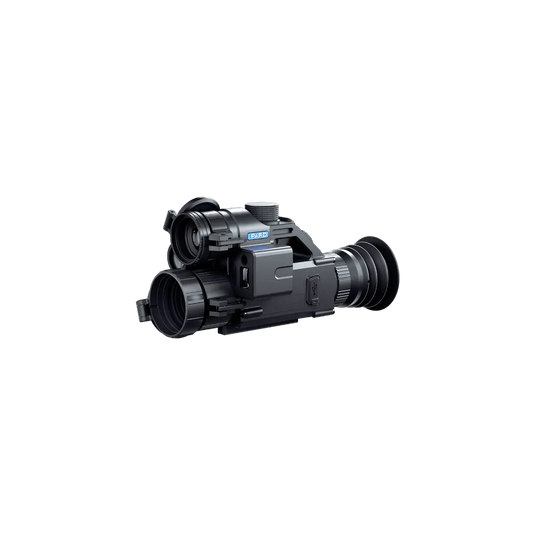

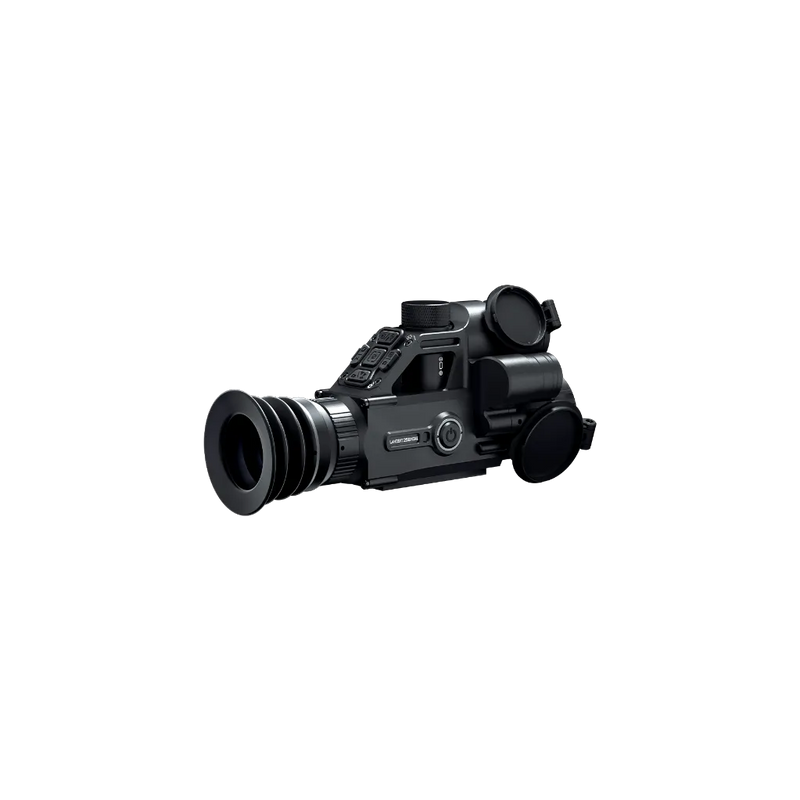

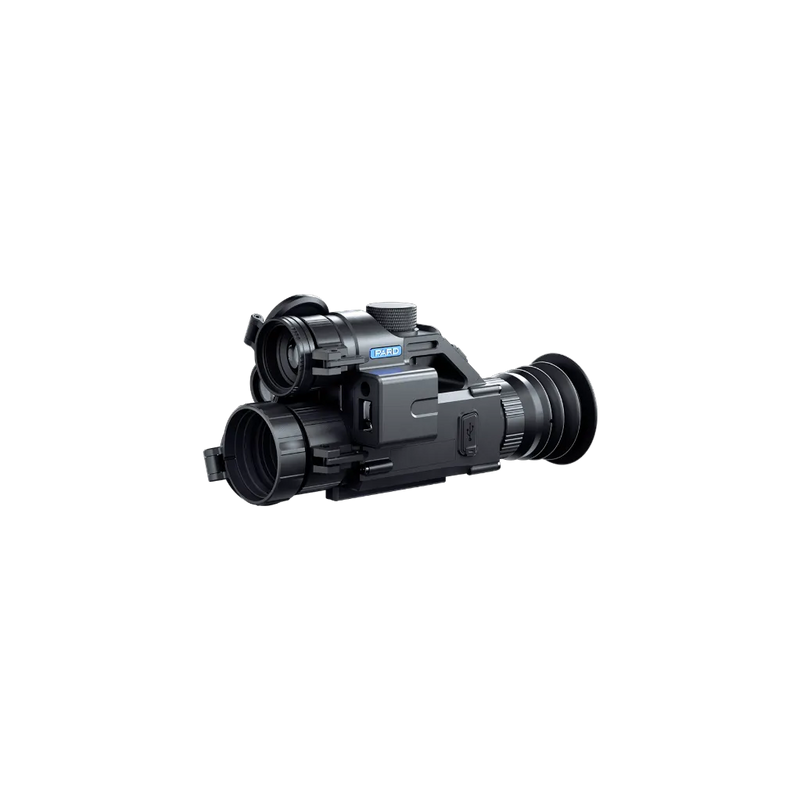

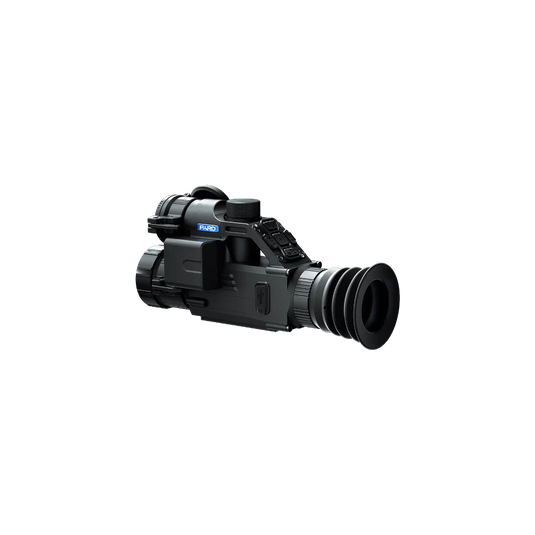

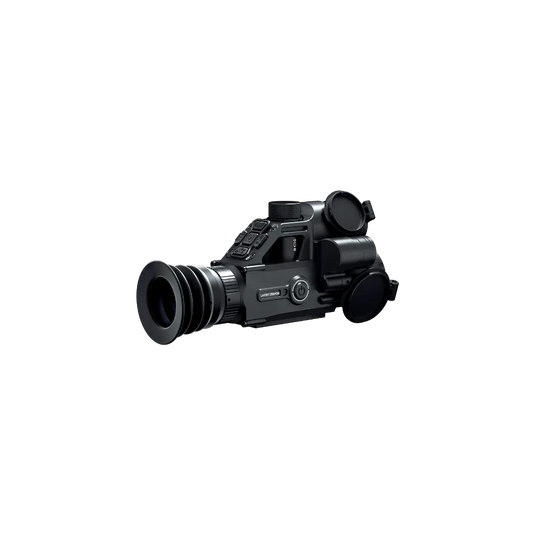

Multi-spectral riflescope combining a 256×192 thermal channel (19 mm lens, 900 m detection) with an HD 0.001 lux day/night channel (25 mm lens), plus a 1,000 m laser rangefinder with integrated ballistic calculator and 300 m IR illuminator.
Specifications
|
Overview |
|
|
Brand |
PARD |
|
Series |
Landsat |
|
Product Type |
Multi-spectral Rifle Scope |
|
Sensor |
|
|
Sensor Type |
Uncooled VOx |
|
Sensor Resolution |
256 × 192 |
|
Pixel Pitch |
12 µm |
|
NETD |
≤ 25 mK |
|
Frame Rate |
50 Hz |
|
Image Engine |
PARD VLEA |
|
Day/Night Sensor Resolution |
1920 × 1080 |
|
Lux Rating |
0.001 Lux |
|
Optics |
|
|
Day/Night Objective Lens |
30 mm |
|
Objective Lens |
19 mm |
|
Optical Magnification |
3.2x |
|
Digital Zoom |
2x / 4x / 6x / 8x |
|
Field of View |
9.2° (H) / 7° (V) / 11.5° (diagonal) |
|
Focus Range |
3 m to ∞ |
|
Eye Relief |
25 mm |
|
Diopter Adjustment |
-5 to +5D |
|
Display |
|
|
Display Type |
OLED |
|
Display Resolution |
1024 × 768 |
|
Range & Rangefinder |
|
|
Detection Range |
900 m |
|
LRF Option |
Yes |
|
LRF Range |
Up to 1,000 m |
|
Ballistic Calculator |
No |
|
IR Illuminator |
|
|
IR Power |
5W |
|
IR Illuminating Level |
3 levels |
|
Recording |
|
|
Photo Resolution |
1024 × 768 |
|
Video Resolution |
1024 × 768 |
|
Audio Recording |
Yes |
|
Storage |
Built-in eMMC (32 GB) |
|
Loop Recording |
Yes |
|
Power |
|
|
Battery Type |
18650 Li-ion (3.7V) |
|
Operating Time |
≤6 hours |
|
Charging Port |
USB Type-C |
|
Build & Durability |
|
|
IP Rating |
IP67 |
|
Operating Temperature |
-30°C to +55°C |
|
Weight |
520 g |
|
Dimensions |
170 × 77 × 85 mm |
|
Material |
Aluminium Alloy |
|
Features |
|
|
Gyroscope |
Yes |
|
E-Compass |
Yes |
|
Connectivity |
Wi-Fi, USB-C |
|
Supported App |
PardVision2 |
|
Color Palettes |
5 (White Hot, Black Hot, Red Hot, Iron Hot, Sky) |
|
Scene Modes |
City / Rain / Forest |
|
Picture-in-Picture |
Yes |
