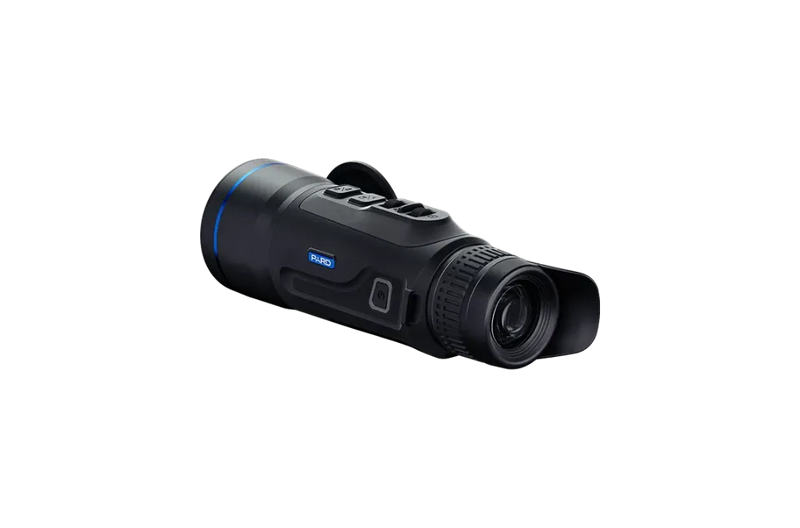

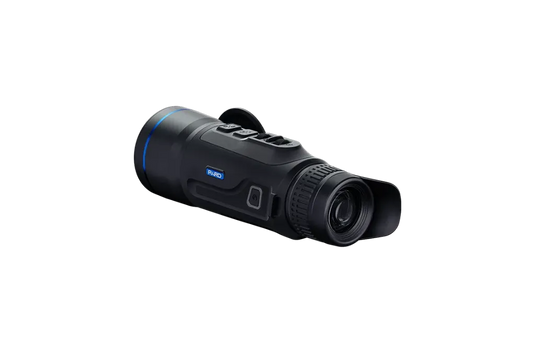

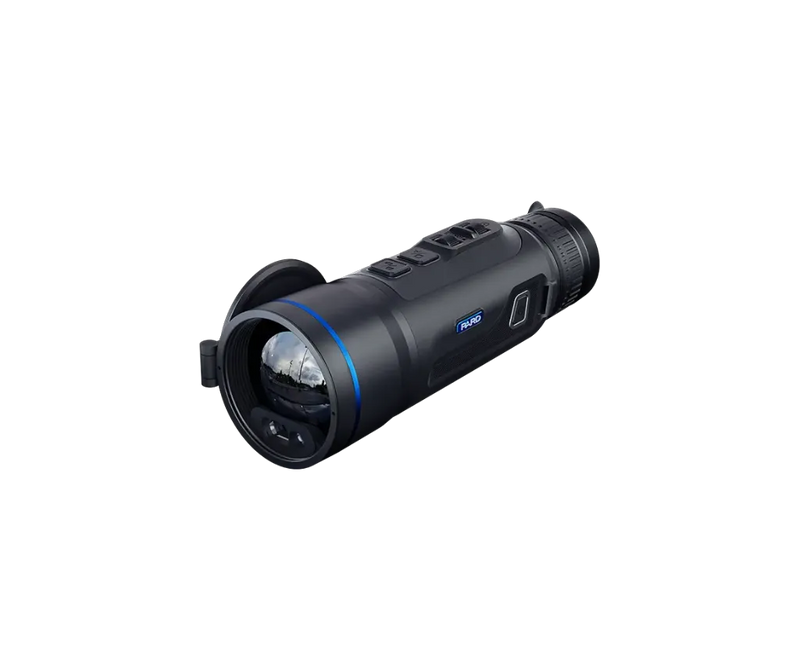

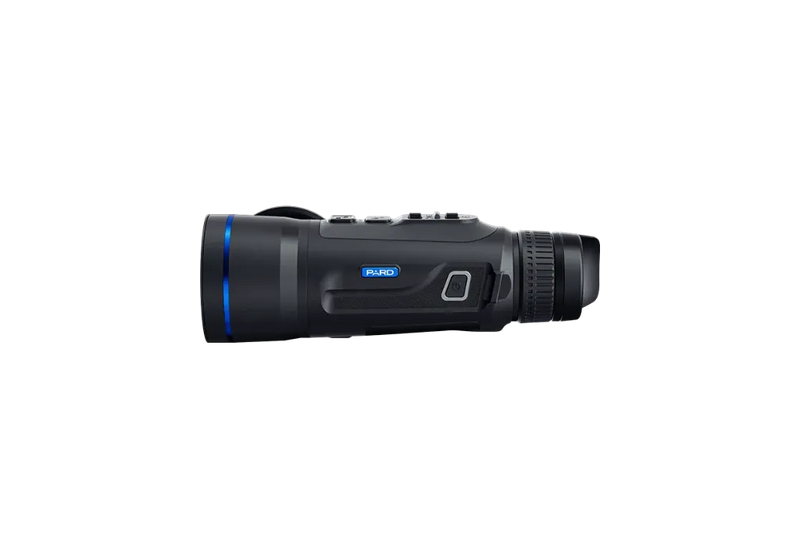

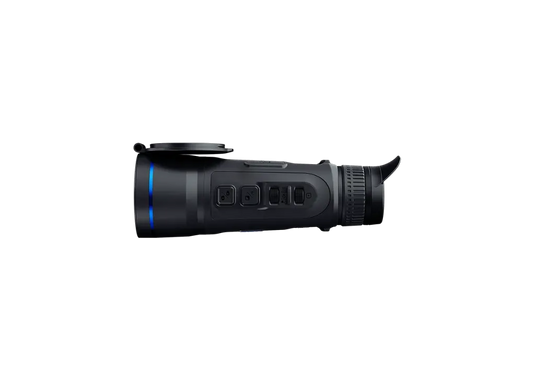

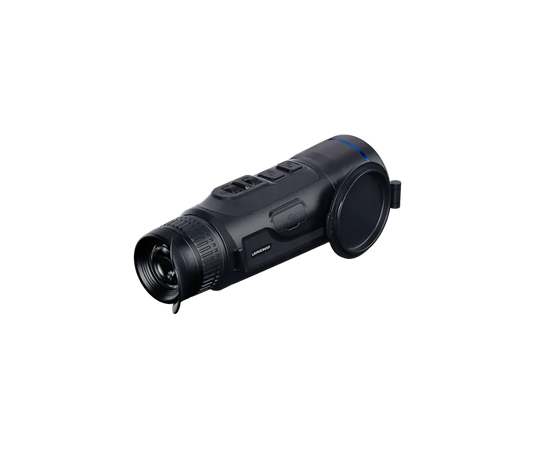

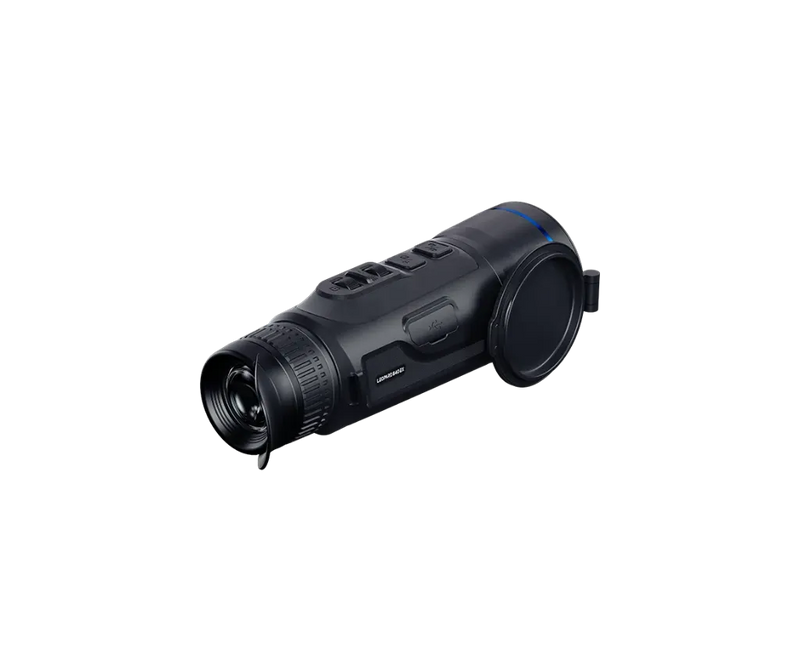

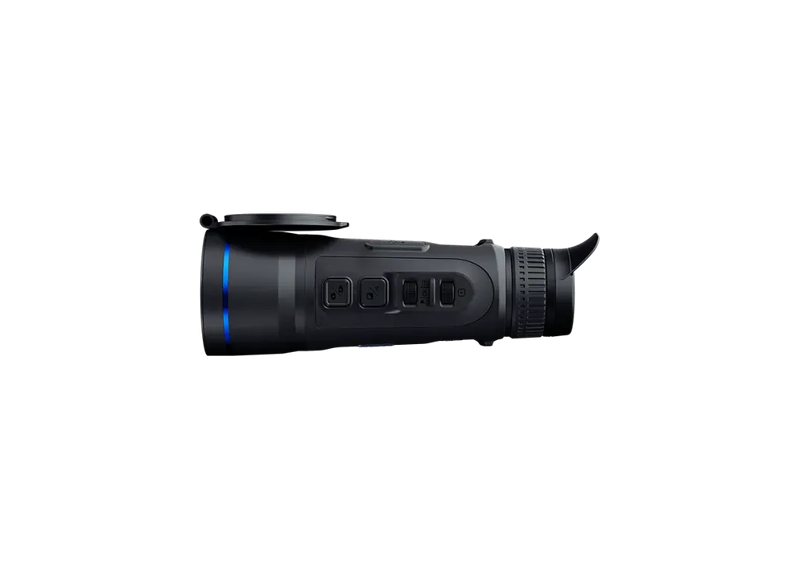

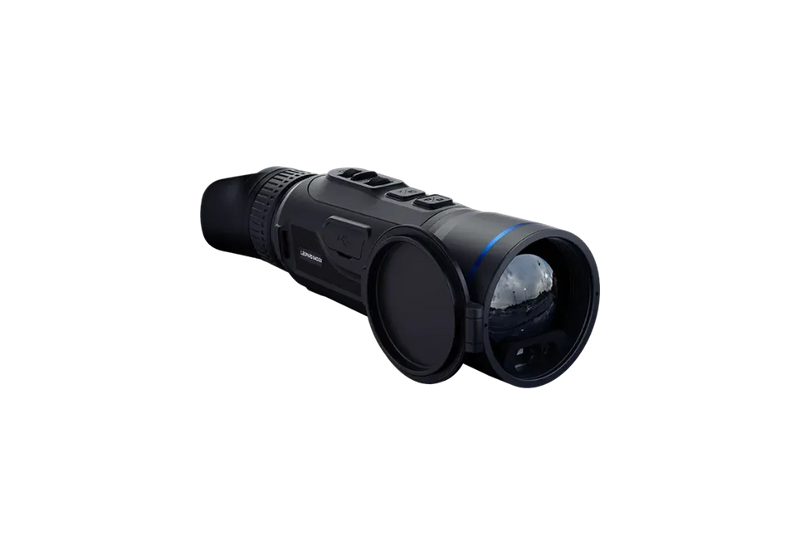

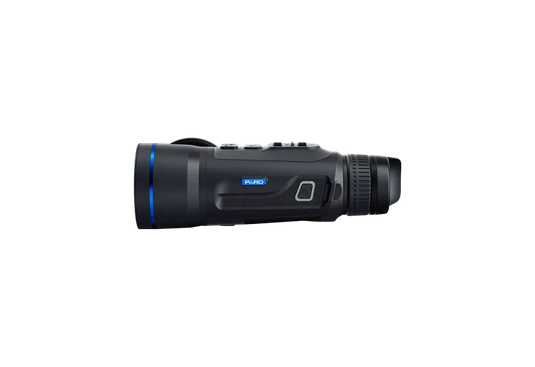

Flagship thermal imaging monocular with 640×512 VOx sensor, industry-leading ≤14mK NETD, 50mm objective lens, 3.7× optical magnification, high-resolution 2560×2560 OLED display, integrated 1,000m LRF, PARD IREA image engine, 5m minimum focus, 2,600m detection range, e-compass, PIP, 7-hour battery life. Wi-Fi / USB-C via PardVision2 app.
|
Overview |
|
|
Brand |
PARD |
|
Series |
Leopard |
|
Product Type |
Thermal Imaging Monocular |
|
Sensor |
|
|
Sensor Type |
Uncooled VOx |
|
Sensor Resolution |
640 × 512 |
|
Pixel Pitch |
12 µm |
|
NETD |
≤ 14 mK |
|
Frame Rate |
50 Hz |
|
Image Engine |
PARD IREA |
|
Optics |
|
|
Objective Lens |
50 mm |
|
Optical Magnification |
3.7x |
|
Digital Zoom |
2x / 4x / 6x / 8x |
|
Field of View |
8.8° (H) / 7.0° (V) / 11.2° (diagonal) |
|
Focus Range |
5 m to ∞ |
|
Eye Relief |
20 mm |
|
Diopter Adjustment |
-5 to +5D |
|
Display |
|
|
Display Type |
OLED |
|
Display Resolution |
2560 × 2560 |
|
Range & Rangefinder |
|
|
Detection Range |
2,600 m |
|
LRF Option |
Yes |
|
LRF Range |
Up to 1,000 m |
|
Ballistic Calculator |
No |
|
Recording |
|
|
Photo Resolution |
1280 × 1280 |
|
Video Resolution |
1280 × 1280 |
|
Recoil-Activated Recording |
Yes |
|
Audio Recording |
Yes |
|
Storage |
Micro SD (max 128 GB) |
|
Loop Recording |
Yes |
|
Power |
|
|
Battery Type |
5000mAh Proprietary Li-ion (3.7V) |
|
Operating Time |
≤7 hours |
|
Charging Port |
USB Type-C |
|
Build & Durability |
|
|
IP Rating |
IP67 |
|
Operating Temperature |
-30°C to +55°C |
|
Weight |
650.5 g |
|
Dimensions |
207 × 75 × 65 mm |
|
Material |
Aluminium Alloy |
|
Features |
|
|
E-Compass |
Yes |
|
Connectivity |
Wi-Fi, USB-C |
|
Supported App |
PardVision2 |
|
Color Palettes |
6 (White Hot, Black Hot, Edge, Red Hot, Iron Hot, Sky) |
|
Picture-in-Picture |
Yes |
