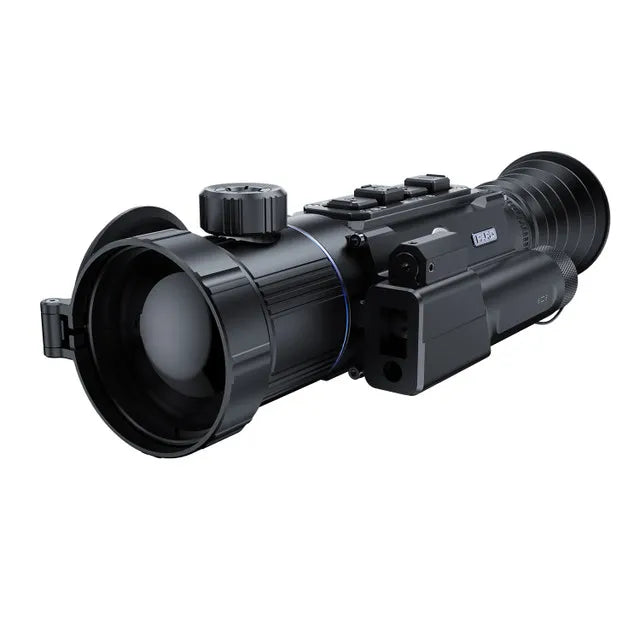

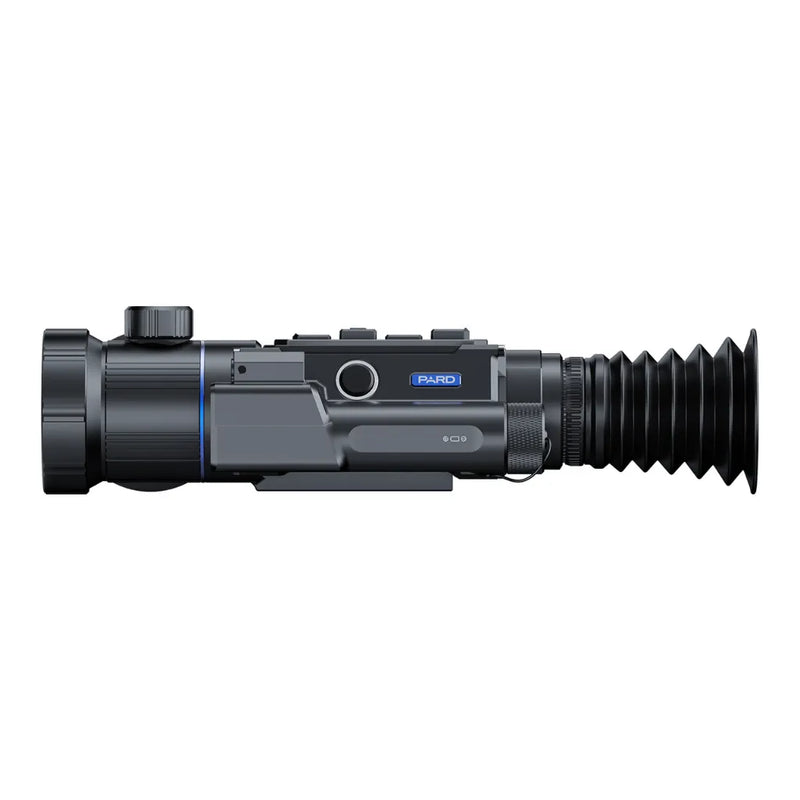

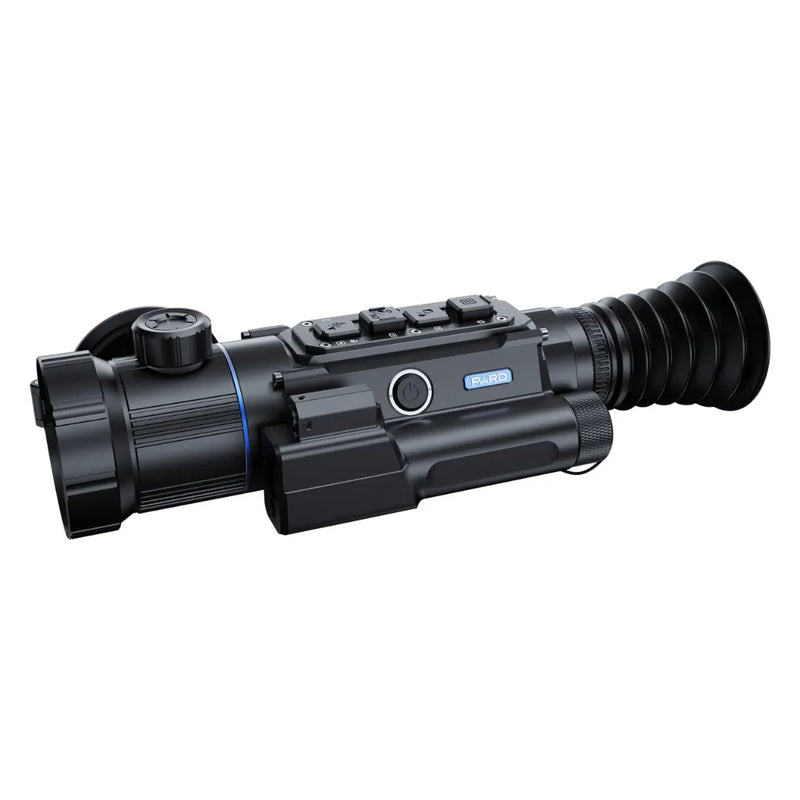

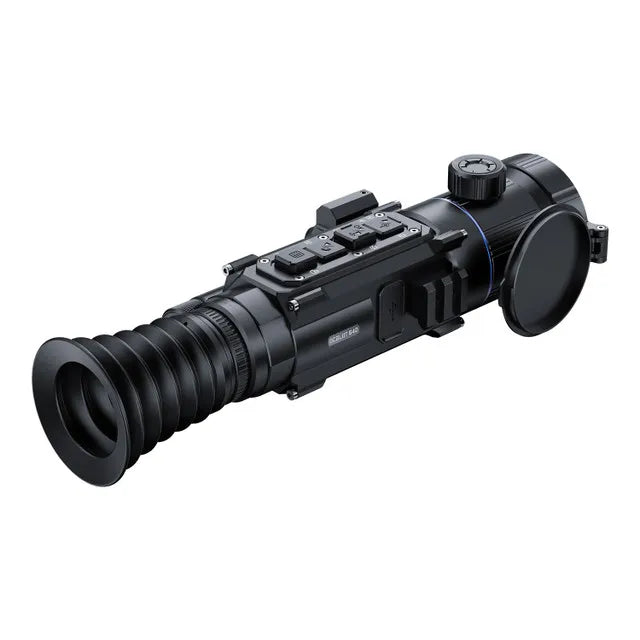

Thermal riflescope with a 480×360 (12 µm, NETD ≤ 18 mK) sensor, 35 mm lens, HD OLED display, 1,800 m human-detection range and a 1,000 m laser rangefinder with integrated ballistic calculator.
|
Overview |
|
|
Brand |
PARD |
|
Series |
Ocelot |
|
Product Type |
Thermal Imaging Scope |
|
Sensor |
|
|
Sensor Type |
Uncooled VOx |
|
Sensor Resolution |
480 × 360 |
|
Pixel Pitch |
12 µm |
|
NETD |
≤ 18 mK |
|
Frame Rate |
50 Hz |
|
Image Engine |
PARD IREA |
|
Optics |
|
|
Objective Lens |
35 mm |
|
Optical Magnification |
2.5x |
|
Digital Zoom |
2× / 4× / 6× / 8× |
|
Field of View |
9.4° (H) / 7.1° (V) / 11.7° (diagonal) |
|
Eye Relief |
50 mm |
|
Diopter Adjustment |
-5 to +5D |
|
Display |
|
|
Display Type |
OLED |
|
Display Resolution |
1920 × 1080 |
|
Range & Rangefinder |
|
|
Detection Range |
1,800 m |
|
LRF Option |
Yes |
|
LRF Range |
Up to 1,000 m |
|
Ballistic Calculator |
Yes |
|
Recording |
|
|
Photo Resolution |
1440 × 1080 |
|
Video Resolution |
1440 × 1080 |
|
Recoil-Activated Recording |
Yes |
|
Audio Recording |
Yes |
|
Storage |
Micro SD (max 128 GB) |
|
Loop Recording |
Yes |
|
Power |
|
|
Battery Type |
21700 Li-ion (3.7V) |
|
Operating Time |
Up to 8 hours |
|
Charging Port |
USB Type-C |
|
Build & Durability |
|
|
IP Rating |
IP67 |
|
Operating Temperature |
-30°C to +55°C |
|
Weight |
678 g |
|
Dimensions |
225 × 78 × 71 mm |
|
Material |
Aluminium Alloy |
|
Recoil Rating |
6,000 J |
|
Features |
|
|
Gyroscope |
Yes |
|
E-Compass |
Yes |
|
Connectivity |
Wi-Fi, HDMI, USB-C |
|
Supported App |
PardVision2 |
|
Color Palettes |
White Hot / Black Hot / H-Light / Red Hot / Iron Hot / Sky |
|
Picture-in-Picture |
Yes |
|
Hot Track |
Yes |
|
Scene Modes |
City / Rain / Forest |
