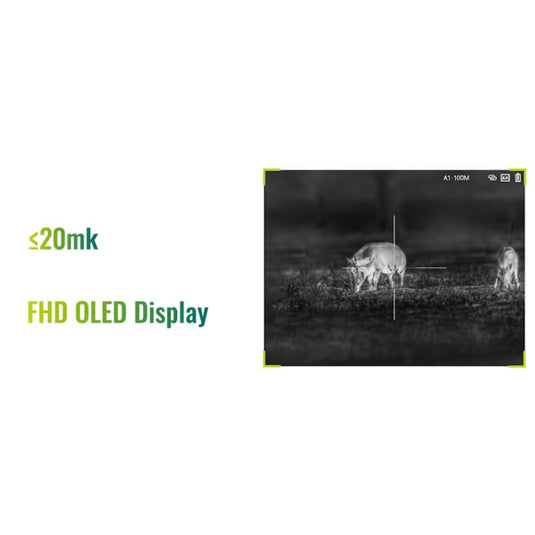

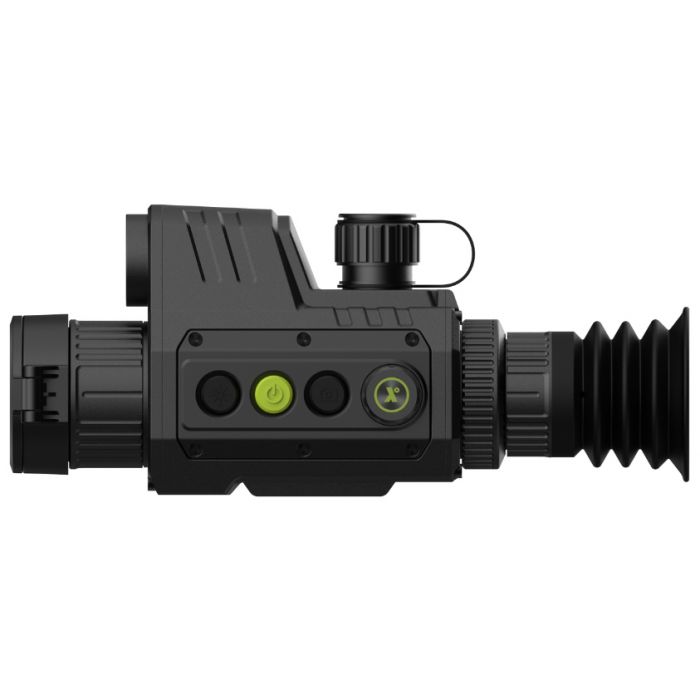

Introducing the Pixfra Chiron C650 LRF 3-in-1 Thermal Monocular. A high-performance device designed for precision in outdoor activities like hunting and surveillance. Equipped with a 1,000-meter laser range finder, it provides accurate distance measurements, allowing users to make well-informed decisions by factoring in key environmental variables. This capability, combined with its advanced 20 mK detector and 640x512 OLED display, ensures exceptionally detailed images that enable effective target tracking, even in challenging conditions.
Built with durable metal construction, the Chiron is designed to withstand harsh environments, enduring impacts of 1,000 g/ms and 6,000J energy. This robustness makes it a reliable companion for high-pressure operations while maintaining excellent image quality. The integrated ballistic calculator enhances targeting accuracy at varying distances, allowing users to confidently acquire targets without fail. With up to 15 hours of thermal imaging available through dual 18650 batteries, the Chiron is kept ready for action under any circumstance.
User-friendly features are abundant in the Chiron, including intuitive knob operation for rapid adjustments, enabling swift adaptation to changing field conditions. The device also incorporates Reusable Automatic Recording (RAR) Technology, capturing essential moments automatically, ensuring that no valuable detail is missed. Further enhancing its capabilities is the impressive detection range of up to 2,600 meters, making it one of the most capable thermal monoculars available.
With customizable settings featuring 6 colour palettes, 10 reticle options, and 5 zeroing profiles, users can tailor their experience for maximum accuracy. The Picture-in-Picture (PIP) function allows a closer view of targets while retaining the overall visual context. Additionally, with 32 GB of built-in storage, Wi-Fi connectivity, and the ability to record automatically, the Chiron enhances the outdoor experience, making it an indispensable tool for those who need reliability and precision in the field.
Features
- 6 colour palettes
- 0.41 inch, OLED Display
- >/-6.5h of battery life
- Built-in storage (up to 32 GB)
- 3-in-1 Thermal scope, clip-on, or even handheld viewer
- Ultra-low power consumption
- Detection distance up to 2,600 m

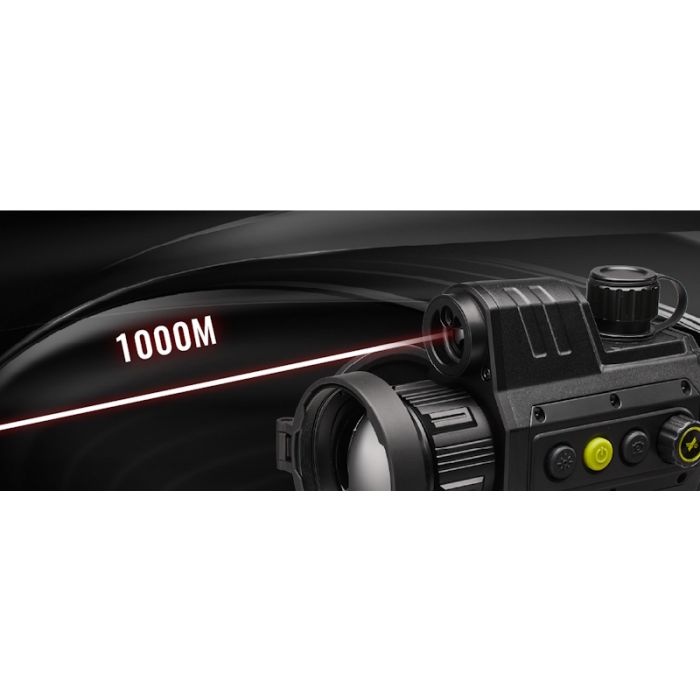

- Laser ranging distance up to 1,000 m
- Connects to the mobile app through Wi-Fi
- 10 reticles with customised colours
- 5 zeroing profiles, and each profile has multiple coordinates, which makes the shoot more accurate
- Picture in picture offers a closer view of the target with the whole visual scene
- Auto recording, automatically record the video, recording the wonderful moment of hunting
- Metal material
- IP67 rated
- Vanadium oxide uncooled focal plane detector
Specifications
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) x 512 (V) |
| Pixel Pitch | 12 um |
| Spectral Range | 8 um-14 um |
| Sensitivity (NETD) | -/<20 mK at f/1.0 |
| Frame Rate | 50 Hz |
| Focal Length | 50 mm |
| Field of View at 100 m | 15.4 m x 12.3 m |
| Thermal Focus Control | Manual |
| Close Focus Distance | 5 m (16.40 ft) |
| Aperture | F1.0 |
| Detection Range | 2,600 m (8,530.18 ft) |
| Digital Zoom | 1 x, 2 x, 4 x, 8 x |
| Magnification | 2.57 x |
| Colour Palettes | 6 (white-hot/black hot /iron red/ alarm/amber/emerald) |
| Screen Dimensions | 0.41 inch, OLED |
| Storage | Built-in EMMC (32 GB) |
| Uniformity Correction | Auto, manual |
| PIP | Yes |
| Audio Recording | Yes |
| Recoil-activation Recording | Yes |
| Max. Recoil | 1000g/ 1ms |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Power Supply | 5 VDC/1 A, Type-C |
| Battery Type | 1 replaceable 18650 battery |
| Battery Capacity | 3,200 mAh |
| Overvoltage Protection | Yes |
| Battery Operating Life | >/-6.5h |
| Operating Temperature | -30 C to +55 C (-22 F to +131 F) |
| Storage Temperature | -30 C to +65 C (-22 F to +149 F) |
| Protection | IP67 |
| Product Dimensions | 213.4 mm x 65.7 mm x 91.5 mm (8.4" x 2.59" x 3.6") (L x W x H) |
| Packaging Dimensions | 310 mm x 180 mm x 138 mm (12.2" x 7.09" x 5.43") (L x W x H) |
| Net Weight | <608 g (1.34 lb) |
| LRF Range | 1,000 m (3,280.84 ft) |
| LRF Accuracy | +/-1 m (3.28 ft) |
