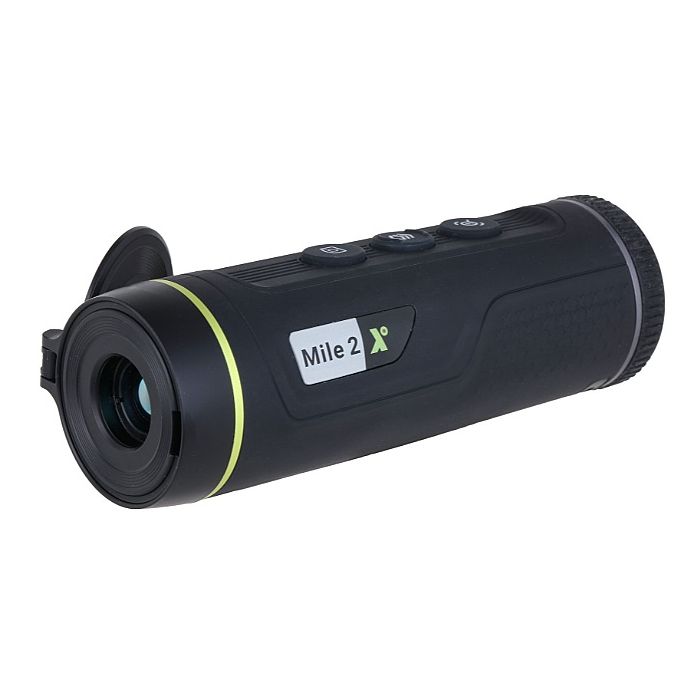

Introducing the Pixfra Mile 2 M413 Thermal Monocular. Offering a compact and lightweight design, making it easy to carry and handle for extended periods. With its pocket-size compactness and ergonomic design, this device ensures portability and comfort. The monocular provides exceptional image quality thanks to an advanced 25mk NETD sensor and a high-resolution 640 lens, paired with a P3 wide colour gamut AMOLED screen and a 20x magnification eyepiece.
Designed for versatility and comfort, the monocular comes with a variety of skin-friendly accessories, including a soft pouch, neck strap, and wrist strap. The centered design prevents tilting when worn around the neck, ensuring a balanced and comfortable experience. The innovation in button layout allows for flawless blind operation, especially useful for nighttime use, enhancing the user experience for one-handed operation in dark environments.
The device features a long-lasting battery life of 8-10 hours, making it ideal for overnight use. With stable Wi-Fi connectivity, it supports real-time monitoring for up to four individuals, facilitating effortless sharing of the thermal imagery. The monocular is equipped with a vanadium oxide uncooled focal plane detector, providing effective pixels of 384 (H) x 288 (V) and a pixel pitch of 12 m. It offers a detection range of 700 meters and a magnification of 1.40x, with digital zoom options of 1x, 2x, 4x, and 8x. The 0.32-inch OLED display screen has a resolution of 800 (H) x 600 (V), providing clear and vivid visuals.
The Pixfra Mile 2 M413 is designed to withstand various environmental conditions, with an operating temperature range of -30C to +55C and a storage temperature range of -40C to +70C. It features an IP67 protection rating, ensuring durability and reliability in harsh conditions. The monocular has a built-in EMMC storage of 16 GB and supports analog output via USB Type-C. With its rechargeable lithium battery of 3,200 mAh capacity, the device ensures more than 8 hours of operating life, making it a dependable tool for a variety of applications.
Features
- 6 (white-hot/black hot /iron red/ alarm/amber/emerald) Colour Pallet
- 0.32 inch, OLED Display
- Long-lasting 8-10 hour battery life
- Built-in EMMC (16 GB) Storage
- Integrated compact pocket-size design
- Advanced 25mk netd sensor
- Ultra-high 640 resolution lens
- Versatile carrying options for all scenarios
- Perfect for nighttime use and flawless blind operation
- Innovation button layout
Specifications
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 384 (H) x 288 (V) |
| Pixel Pitch | 12 m |
| Spectral Range | 8m-14m |
| Sensitivity (Netd) | -/<25 mK at f/1.0 |
| Frame Rate | 50 Hz |
| Focal Length | 13mm |
| Field Of View | H: 20.9, V: 15.7/H: 36.9 m, V: 27.7 m (at 100 m) |
| Focus Control | Manual |
| Detection Range | 700 m (2,296.59 ft) |
| Magnification | 1.40 x |
| Colour Palettes | 6 (white-hot/black hot /iron red/ alarm/amber/emerald) |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Aperture | F1.0 |
| Digital Zoom | 1 x, 2 x, 4 x, 8 x |
| Display Screen Dimensions | 0.32 inch, OLED |
| Screen Resolution | 800 (H) x 600 (V) |
| Diopter | 5D to +3D |
| Eye Relief | 15mm |
| Uniformity Correction | Auto, manual |
| Storage | Built-in EMMC (16 GB) |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Analog Output | Yes, type-C. |
| Power Supply | 5 VDC/2 A, USB Type-C |
| Battery Type | Rechargeable Lithium battery |
| Battery Capacity | 3,200 mAh |
| Battery Operating Life | >/-8.0h |
| Operating Temperature | 30 C to +55 C (22 F to +131 F) |
| Storage Temperature | 40 C to +70 C (40 F to +158 F) |
| Protection | IP67 |

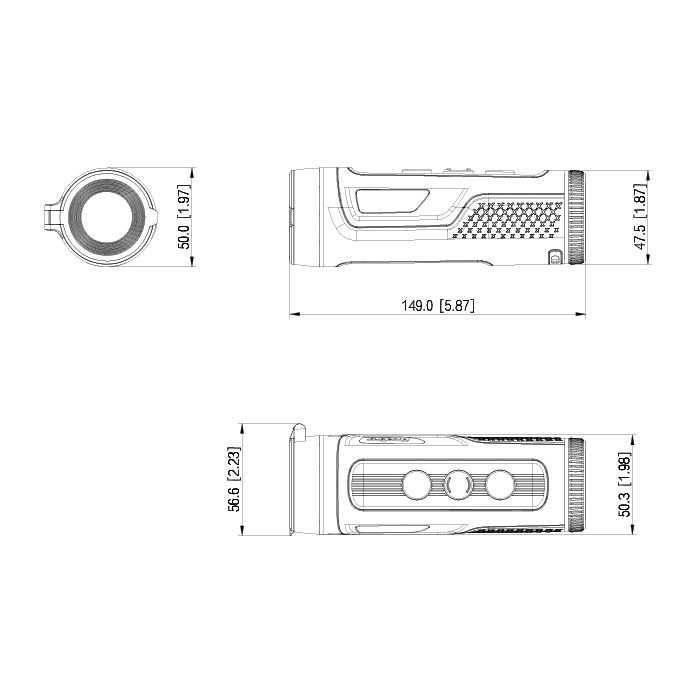

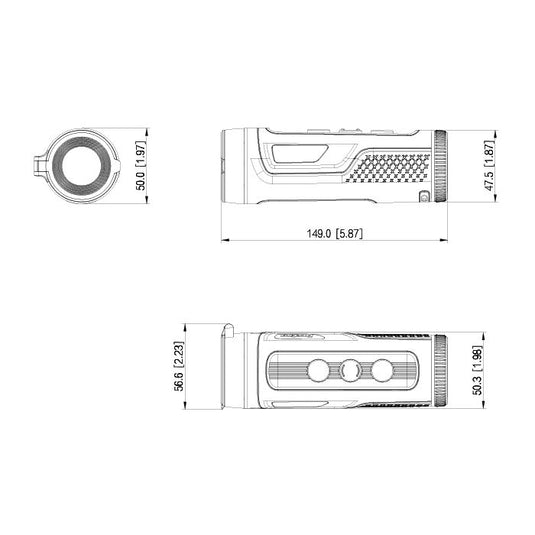

| Product Dimensions | 156.5 mm x 56.6 mm x 50.3 mm (6.16" x 2.23" x 1.98") (L x W x H) |
| Net Weight | <320 g (0.71 lb) |
