SKU: PFIR635

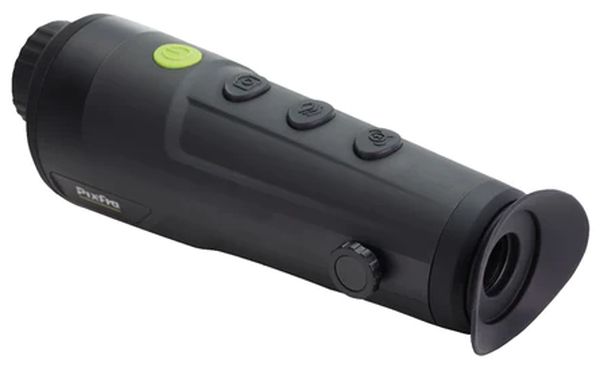

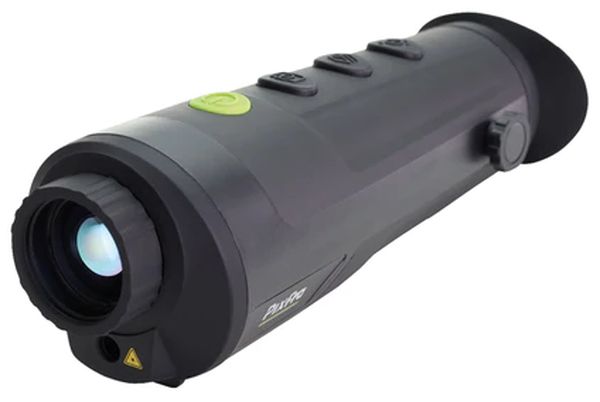

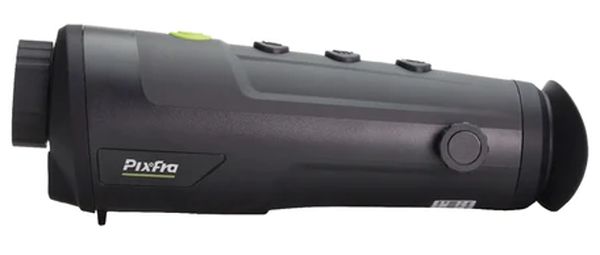

Pixfra Ranger R635 640x512 Thermal Imaging Monocular - 35mm, Black

Vendor Pixfra
Regular price R 49,999.00
Sale price R 49,999.00 Regular price R 49,999.00
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.

This is a pre order item. We will ship it when it comes in stock.

Introducing the Pixfra Ranger R635 640x512 Thermal Imaging Monocular - 35mm, Black, an exceptional imaging device that combines superior performance with versatility to meet your visual needs. With its impressive specifications, including a resolution of 640x512 and a lens size of 35mm, this product delivers stunning image quality and outstanding precision.

The Pixfra Ranger R635 sets a new standard in image resolution with its impressive 640x512 pixels. This resolution ensures remarkable clarity, allowing you to capture intricate details with precision and accuracy. Whether you're involved in surveillance, wildlife observation, or professional photography, the Pixfra Ranger R635 ensures that every image you capture is rich in detail, offering valuable insights and stunning visuals.

Equipped with a 35mm lens, the Pixfra Ranger R635 strikes a balance between versatility and focus. This lens size offers a broader field of view compared to smaller lenses, enabling you to capture wider scenes and encompass more of your subject matter. The lens is designed to deliver sharp, true-to-life images with minimal distortion, providing exceptional visual quality across your shots.

The Pixfra Ranger R635 is not only focused on performance but also on user convenience. Its compact and lightweight design makes it highly portable, allowing you to carry it effortlessly wherever you go. The device's ergonomic features ensure comfortable handling during extended usage, minimizing fatigue and enabling you to focus on capturing the perfect shot.

In addition to its remarkable specifications, the Pixfra Ranger R635 incorporates advanced features to enhance your imaging experience. With intuitive controls and user-friendly interfaces, navigating through the device's settings becomes a breeze. The product may also offer additional functionalities such as image stabilization, customizable shooting modes, and compatibility with various accessories, providing you with greater flexibility and creative possibilities.

Whether you're a professional photographer, an outdoor enthusiast, or a security specialist, the Pixfra Ranger R635 is a reliable companion that will exceed your expectations. With its impressive resolution of 640x512 and a 35mm lens size, this product empowers you to capture breathtaking visuals with remarkable clarity and precision. Unleash your creativity and explore the world of high-quality imaging with the Pixfra Ranger R635.



Features

  • Vanadium oxide uncooled focal plane detector
  • Ultra-low power consumption
  • Detection distance is up to 1 800 m
  • Connects to the mobile app through Wi-Fi
  • Six colour palettes
  • Built-in EMMC (32 GB)
  • Connects to the external display
  • Lightweight and portable
  • IP67 rated



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) x 512 (V)
Pixel Pitch 12 um
Spectral Range 8 um - 14 um
Sensitivity (NETD) <30 mK@f/1.0
Frame Rate 50 Hz
Focal Length 35 mm
Field Of View H: 12.4-Degrees, V: 10.0-Degrees
Focus Control Manual
Close Focus Distance 2 m (6.56 ft)
Aperture F1.0
Detection Distance 1 800 m (5 905.51 ft)
Digital Zoom 1 x 2 x 4 x 8 x
Colour Palettes 6 (white hot/black hot/iron red/alarm/emerald/amber)
Display Screen Dimensions 0.41 inch, OLED
Screen Resolution 1440 (H) x 1080 (V)
Magnification 2.05 x
Diopter Adjust 4 D to +5 D
Eye Relief 25 mm (0.98")
Storage Built-In EMMC (32 GB)
Uniformity Correction Auto, manual
Cold/Hot Spot Trace Yes
Wi-Fi Yes
Analogue Output Yes. Type-C
Power Supply 5 VDC/2 A, USB Type-C
Battery Type 1 rechargeable Lithium batteries (internal)
Battery Capacity 3 200 mAh
Overvoltage Protection Yes
Standby Time >6.5 h
Operating Temperature 30 C to +50 C (22 F to +122 F)
Operating Humidity <95%
Storage Temperature 30 C to +65 C (22 F to +149 F)
Protection IP67
Product Dimensions 199.8 mm x 64.7 mm x 69.6 mm (7.87" x 2.55" x 2.74") (L x W x H)
Packaging Dimensions 299 mm x 152 mm x 114 mm (11.77" x 5.98" x 4.49") (L x W x H)
Net Weight <400 g (0.88 lb)
Gross Weight <1 kg (2.20 lb)
