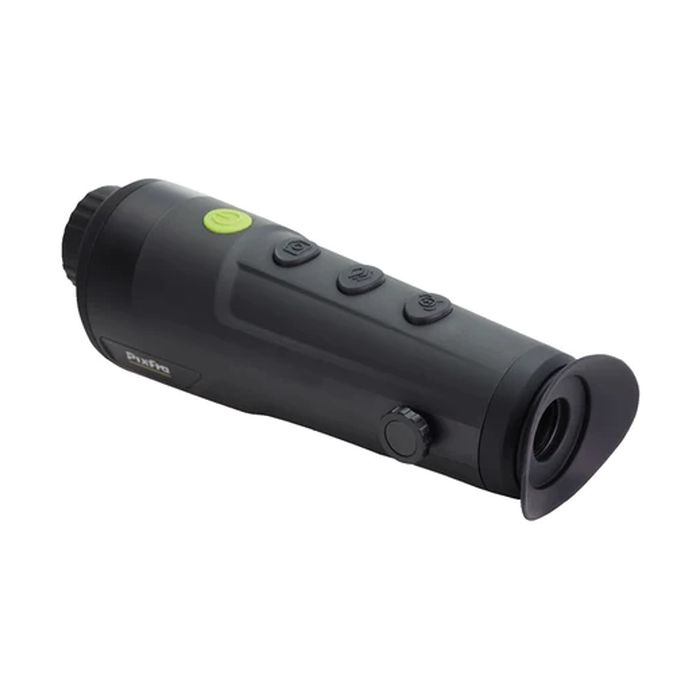

Pixfra Ranger R635 Thermal Imaging Monocular

Vendor Pixfra
Regular price R 28,999.00
Sale price R 28,999.00 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.

Flexible payments from R 7,249.75

Pay interest-free over 2-4 months with Stitch Pay Later

Pay Later

Split your purchase into flexible, interest-free
monthly instalments with Stitch Pay Later. Use your Stitch rewards to get cashback on your purchase.

  • Zero interest
  • Zero upfront fees
  • Full schedule shown upfront

How it works

  1. Choose Stitch Pay Later at checkout

    Add your purchase to cart and select Stitch Pay Later as your payment method

  2. Get a quick decision

    Verify your identity and we’ll run a credit and affordability check before approving your purchase

  3. Choose 3 or 4 instalments

    Pick the plan that works for your budget

  4. Check your schedule and confirm

    Instalments are collected automatically on the dates in your plan, so you always know what’s coming

Here’s how R 6 000 looks over 4 instalments

  1. 1st instalment R1 500
  2. 2nd instalment R1 500
  3. 3rd instalment R1 500
  4. 4th instalment R1 500
Total you pay R6 000 R0 interest

Illustrative example. Your exact amounts and payment dates are shown at checkout before you commit

What you’ll need

  • Be 18 or older
  • A South African ID
  • A debit or credit card
  • Not under debt review

Split has no interest or fees when you pay on time. A late fee may apply if you miss an instalment. All purchases are subject to a credit and affordability check, and each purchase is assessed separately.

More about Stitch Pay Later and FAQs
This is a pre order item. We will ship it when it comes in stock.

Introducing the Pixfra Ranger R635 Thermal Imaging Monocular, a compact and powerful monocular that offers exceptional image quality and versatility. With its impressive features and sleek design, the Pixfra ranger is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level. The Pixfra Ranger R635 boasts a resolution of 640x512, ensuring sharp and detailed images that showcase more nuance and colour than ever before.

Designed for ease of use, the Pixfra Ranger R635 features intuitive controls and a user-friendly interface, allowing both beginners and experienced users to navigate its functions effortlessly. Ranger has a maximum 35mm lens, which can realise the detection distance of 1800m, helping you break through the visual boundary of human eyes at night. Supports white hot, black hot, alarm, iron red, jade, amber colour mode, to meet your observation needs in different scenarios.

Compact and lightweight, the Pixfra Ranger R635 is highly portable, making it an ideal companion. The Ranger series monocular is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level. Compared with 1024×768 resolution, the 1440 x 1080 resolution display has doubled the number of pixels, making it clearer and more detailed.

Additionally, the Pixfra Ranger R635 is equipped with various convenient features, with more than 7.5 hours of battery life, manual and automatic standby mode, to meet your outdoor observation needs all day. With a IP67 protection rating, it can be used after soaking in water for half an hour. The minimum operating temperature is -30℃, which can follow you to harsh environments.



Features

  • Up to 6 Colour Palettes
  • 0.41 inch, OLED Display
  • Up to >6.5 h of battery life
  • Built-in EMMC (32 GB)
  • Vanadium oxide uncooled focal plane detector
  • Ultra-low power consumption
  • Detection distance is up to 1 800 m
  • Connects to the mobile app through Wi-Fi
  • Connects to the external display
  • Lightweight and portable
  • IP67 rated



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) x 512 (V)
Pixel Pitch 12 um
Spectral Range 8 um - 14 um
Sensitivity (NETD) <30 mK at f/1.0
Frame Rate 50 Hz
Focal Length 35 mm
Field Of View H: 12.4-Degrees, V: 10.0-Degrees
Focus Control Manual
Close Focus Distance 2 m (6.56 ft)
Aperture F1.0
Detection Distance 1 800 m (5 905.51 ft)
Digital Zoom 1 x 2 x 4 x 8 x
Colour Palettes 6 (white hot/black hot/iron red/alarm/emerald/amber)
Display Screen Dimensions 0.41 inch, OLED
Screen Resolution 1440 (H) x 1080 (V)
Magnification 2.05 x
Diopter Adjust 4 D to +5 D
Eye Relief 25 mm (0.98")
Storage Built-In EMMC (32 GB)
Uniformity Correction Auto, manual
Cold/Hot Spot Trace Yes
Wi-Fi Yes
Analogue Output Yes. Type-C
Power Supply 5 VDC/2 A, USB Type-C
Battery Type 1 rechargeable Lithium batteries (internal)
Battery Capacity 3 200 mAh
Overvoltage Protection Yes
Standby Time >6.5 h
Operating Temperature 30 C to +50 C (22 F to +122 F)
Operating Humidity <95%
Storage Temperature 30 C to +65 C (22 F to +149 F)
Protection IP67
Product Dimensions 199.8 mm x 64.7 mm x 69.6 mm (7.87" x 2.55" x 2.74") (L x W x H)
Packaging Dimensions 299 mm x 152 mm x 114 mm (11.77" x 5.98" x 4.49") (L x W x H)
Net Weight <400 g (0.88 lb)
Gross Weight <1 kg (2.20 lb)
