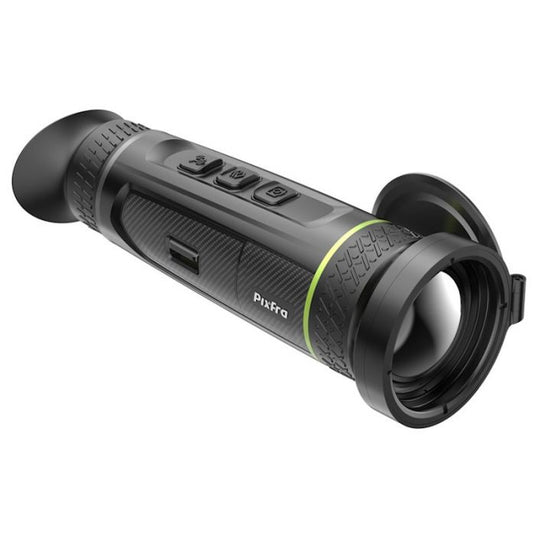

Introducing the Pixfra Sirius S650 LRF Thermal Monocular. The Pixfra Sirius S650 LRF Thermal Monocular is a versatile and high-performance device designed for professionals and enthusiasts who require precise thermal imaging and long-range detection capabilities. Equipped with a powerful vanadium oxide uncooled focal plane detector, the S650 offers effective pixels of 640 (H) x 512 (V) with a pixel pitch of 12 m, enabling high-resolution thermal imaging across a spectral range of 8 to 14 micrometers. Its sensitivity, with a Netd of less than 18 mK at f/1.0, ensures clear, detailed thermal images even in challenging environmental conditions, making it suitable for search and rescue, surveillance, and outdoor exploration.
The device features a wide array of customisable display options, including six distinct colour palettes such as white-hot, black hot, iron red, alarm, amber, and emerald. This flexibility allows users to optimise image contrast and visibility based on specific operational needs or personal preferences. Its OLED screen, measuring 0.49 inches with a resolution of 1920 x 1080, provides bright, sharp visuals for accurate target identification and analysis. The monocular offers a magnification of 3.45x, with digital zoom options of 1x, 2x, 4x, and 8x, and a detection distance of up to 2,600 meters, making it highly effective for long-distance observation in various terrains and conditions.
Designed for durability and ease of use, the Pixfra Sirius S650 features a reliable single-handed control system, allowing users to operate the device comfortably in any environment. It is built with a quick-change battery system using standard 18650 batteries, offering a maximum battery life of over six hours-ensuring extended operational periods in the field. Additionally, the device is IP67 rated, providing robust protection against dust and water ingress, which enhances its suitability for demanding outdoor activities. Its compact dimensions (213.1 mm x 73 mm x 83.4 mm) and lightweight design (approximately 537 g) make it portable and easy to carry for prolonged periods.
Advanced features such as AI-powered image calibration, hot spot tracking, Wi-Fi hotspot connectivity, and integrated video recording and snapshot functions further enhance the devices versatility. The Sirius S650 also includes manual focal length adjustment, a built-in 64 GB storage capacity for data recording, and a user-friendly interface with five brightness levels and subtle device status signals. The device operates within a wide temperature range from -30C to +55C, making it suitable for extreme environmental conditions. Its comprehensive feature set, rugged build, and high-performance optics make the Pixfra Sirius S650 LRF Thermal Monocular an excellent tool for precise thermal imaging and long-range detection in professional and outdoor applications.
Features
- 6 colour palettes (white-hot/black hot /iron red/ alarm/amber/emerald)
- 1920 x 1080, 0.49 inch, OLED
- Up to 6h max battery life
- Built-in 64 GB
- Lens-integrated 1000m LRF
- PIPS 2.0
- Offers 5-level brightness and subtly signals device status
- Reliable Single-Handed Control

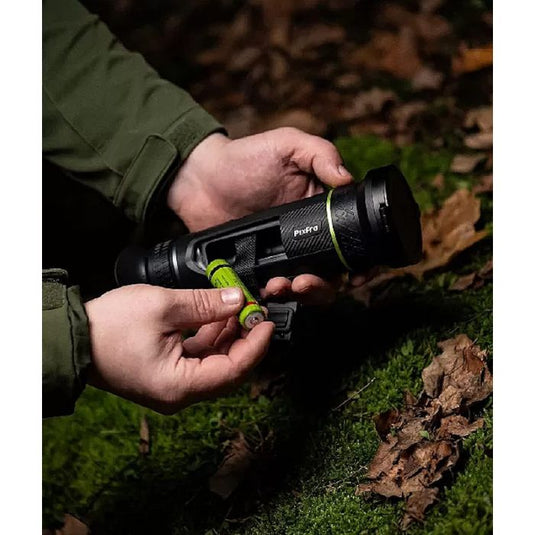

- Quick-Change Battery
- Equipped with Metal Lens Cover
- AI-Powered Image Calibration
Specifications
| Brand | Pixfra |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) x 512 (V) |
| Pixel Pitch | 12 um |
| Spectral Range | 8um-14um |
| Sensitivity (NETD) | -/<18 mK at f/1.0 |
| Focal Length | 50 mm |
| Thermal Focus Control | Manual |
| Close Focus Distance | 3 m (9.84 ff) |
| Aperture | F0.9 |
| Field Of View | H: 8.8, V: 7.1/H: 15.4 m, V: 12.3 m (at 100 m) |
| Detection Distance | 2,600 m (8,530.18 ff) |
| Digital Zoom | 1 x, 2 x, 4 x, 8 x |
| Magnification | 3.45x |
| Frame Rate | 50 Hz |
| Screen | 1920 x 1080, 0.49 inch, OLED |
| Colour Palettes | 6 (white-hot/black hot /iron red/ alarm/amber/emerald) |
| Storage | Built-in 64 GB |
| FFC Calibration | Auto, Manual, External Correction |
| Hot Spot Trace | Yes |
| Wi-Fi Hotspot | Yes |
| Video Recorder | Yes |
| Snapshot | Yes |
| Battery Type | Replaceable 18650 battery |
| Battery Life | >/-6 h |
| Power Supply | 5 VDC/2 A |
| Port | USB Type-C |
| Operating Temperature | -30 C to + 55 C (-22 F to + 131 F) |
| Protection Grade | IP67 |
| Product Dimensions | 213.1 mm x 73 mm x 83.4 mm (8.39" x 2.87" x 3.28") (L x W x H) |
| Packaging Dimensions | 291 mm x 140 mm x 127 mm (11.46" x 5.51" x 5") (L x W x H) |
| Net Weight | 537 g (1.18 lb) |
