SKU: 77455

Pulsar Merger Duo DXP50 Multispectral Thermal

Vendor Pulsar
Regular price R 99,999.00
Sale price R 99,999.00 Regular price R 129,999.00
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.

This is a pre order item. We will ship it when it comes in stock.

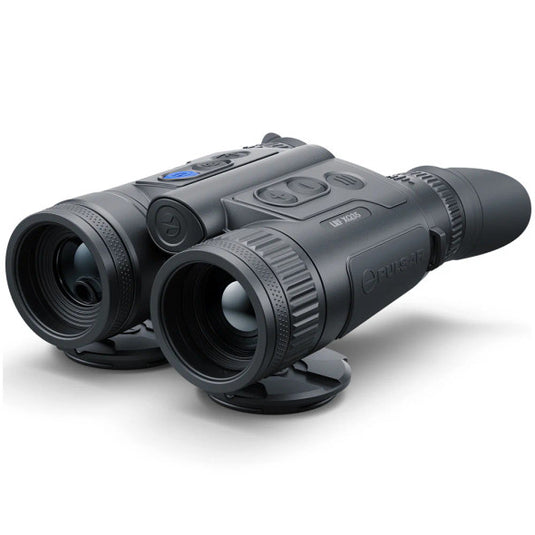

The Merger Duo NXP50 is Pulsar’s first multispectral binocular. It combines thermal and digital channels to provide exceptional detection, recognition, and identification capabilities for day and night observation.

The Merger Duo NXP50 offers several observation modes:

  • The highly capable thermal channel ensures extreme thermal sensitivity, making it unbeatable for detection and observation in any weather conditions and at various distances.
  • The full-HD resolution ultra-low-light night vision reveals intricate details and features of the observed object.
  • The Picture-in-Picture mode combines both channels, ensuring comprehensive situational awareness and preventing you from missing any details.

Main specifications

Sensor
640x480 pix. @ 17 µm (thermal) | CMOS 1920x1200 (digital) pix. @ 17 µm (NETD < 25 mK)
Objective lens
F50/1.0 (thermal) | F50/1.4 (digital)
Magnification, x
3 – 24 (thermal) | 2 – 16 (digital)
FOV (HxV)degrees / m@100m
12.4° / 21.8 m (thermal channel) | 17.5°/30.7 m (digital channel)
Detection range
1800 (thermal detection)

Infrared Illuminator

Emitter
LED
Beam divergence, degree
≥ FOV
IR wavelength, nm
940
IR Optical power, mW
500
IR spot position adjustment
yes

Sensor

Type
Uncooled, microbolometric (thermal) | Full-HD CMOS (digital)
Resolution, pixels
640x480 pix. @ 17 µm (thermal) | CMOS 1920x1200 (digital)
Pixel pitch, µm
17
NETD, mK
< 25
Frame rate, Hz
50

Optics

Objective lens
F50/1.0 (thermal) | F50/1.4 (digital)
Magnification, x
3 – 24 (thermal) | 2 – 16 (digital)
FOV (HxV)degrees / m@100m
12.4° / 21.8 m (thermal channel) | 17.5°/30.7 m (digital channel)
Eye relief, mm
12

Display

Type
AMOLED HD
Resolution, pixels
1280х960

Video recorder

Video / photo resultion, pixel
1280х960
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol

Wi-Fi

Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5

Environmental characteristics

Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50

Weight & size

Body material
Magnesium alloy
Dimensions, mm
207x140x73
Weight, kg
1.2 (batteries included)
