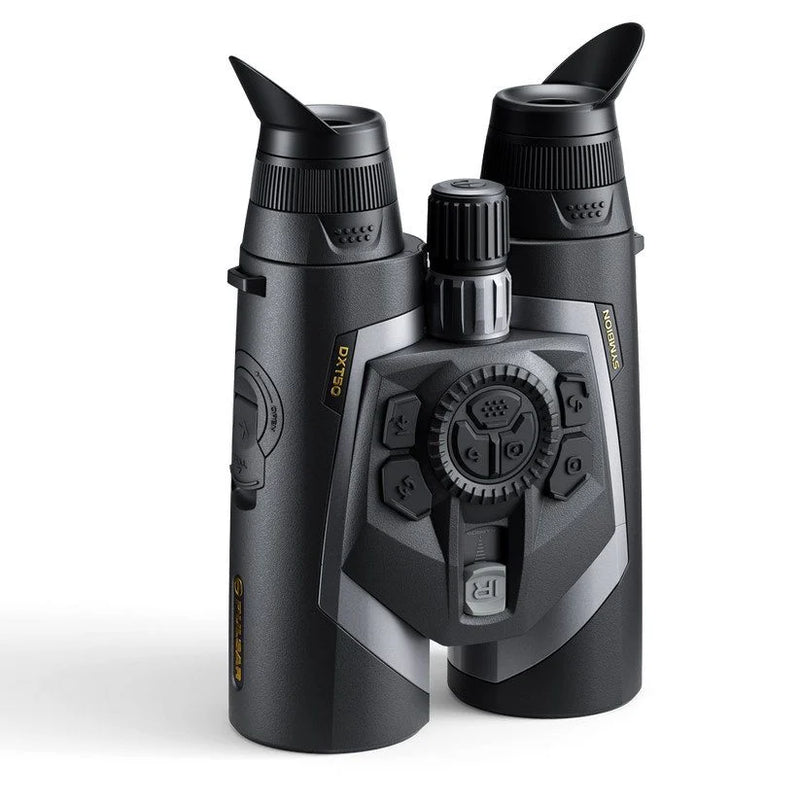

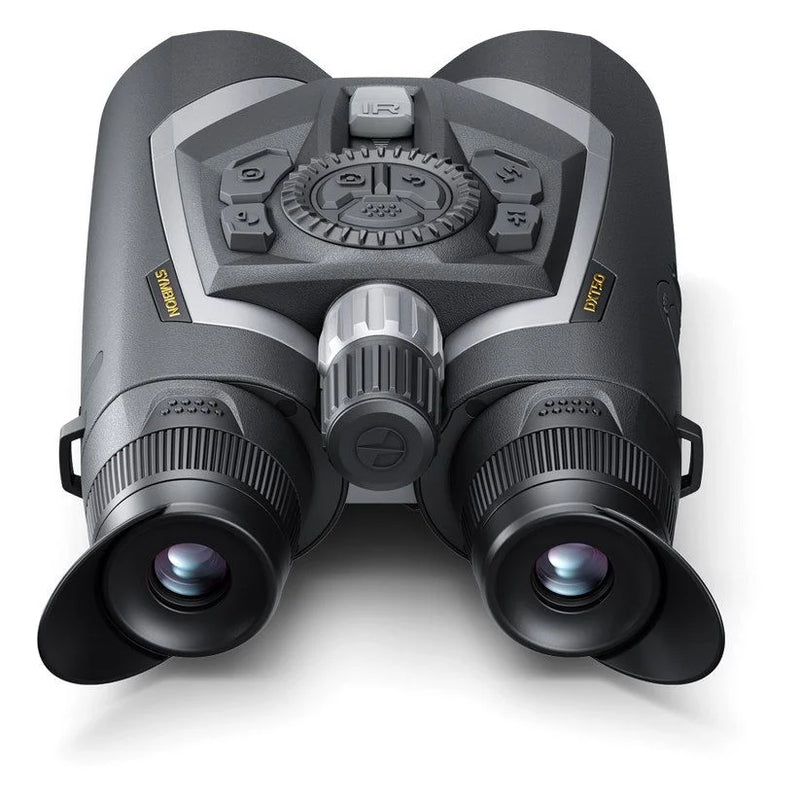

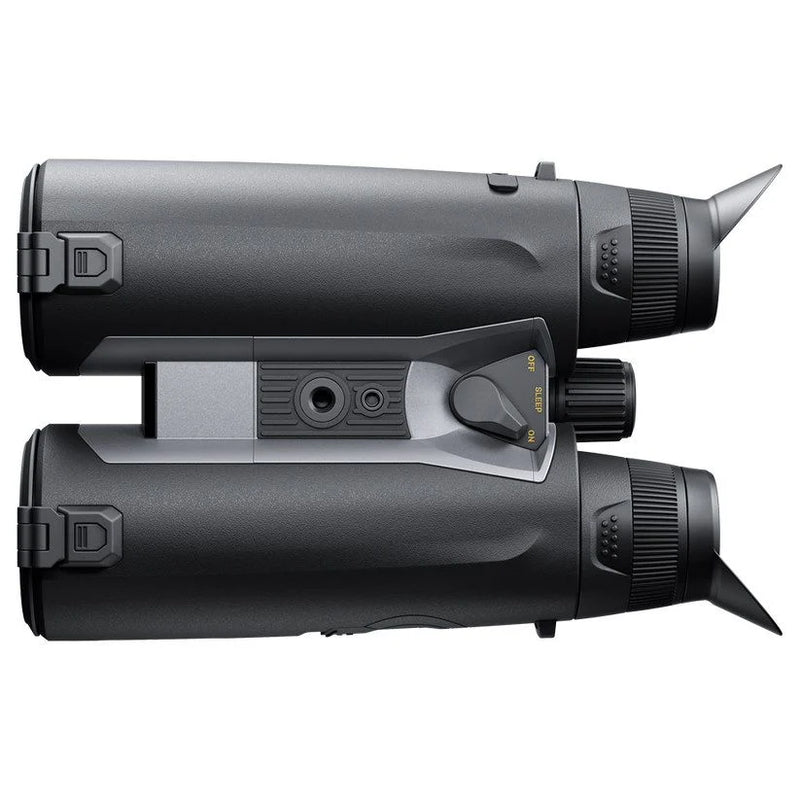

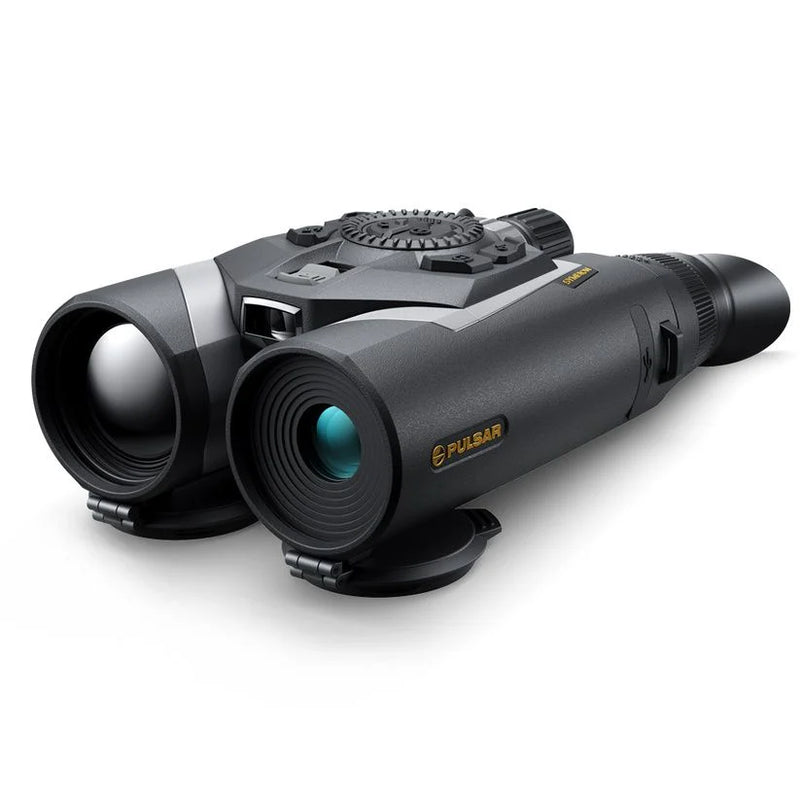

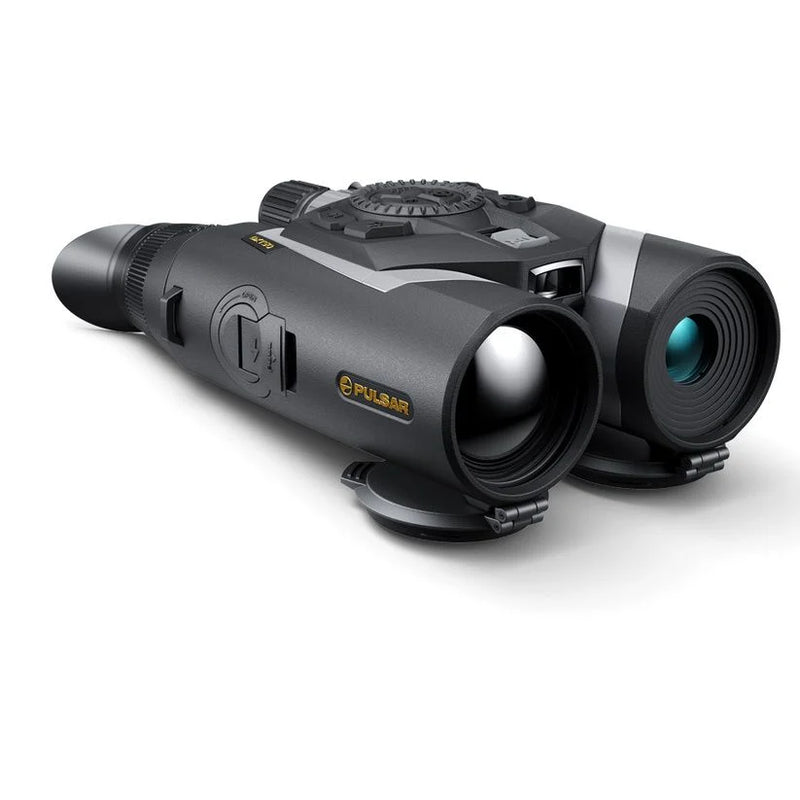

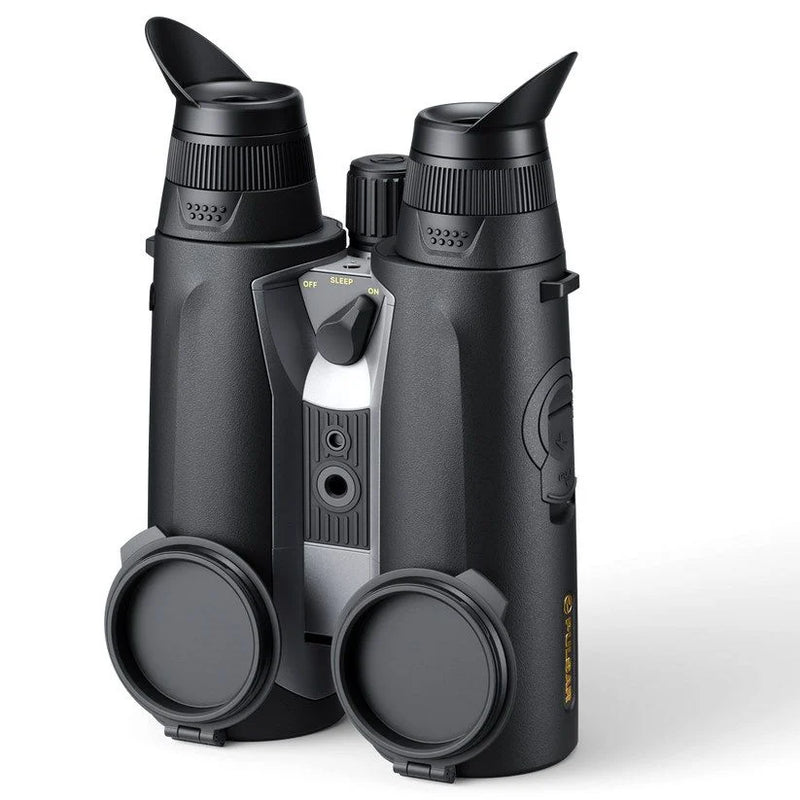

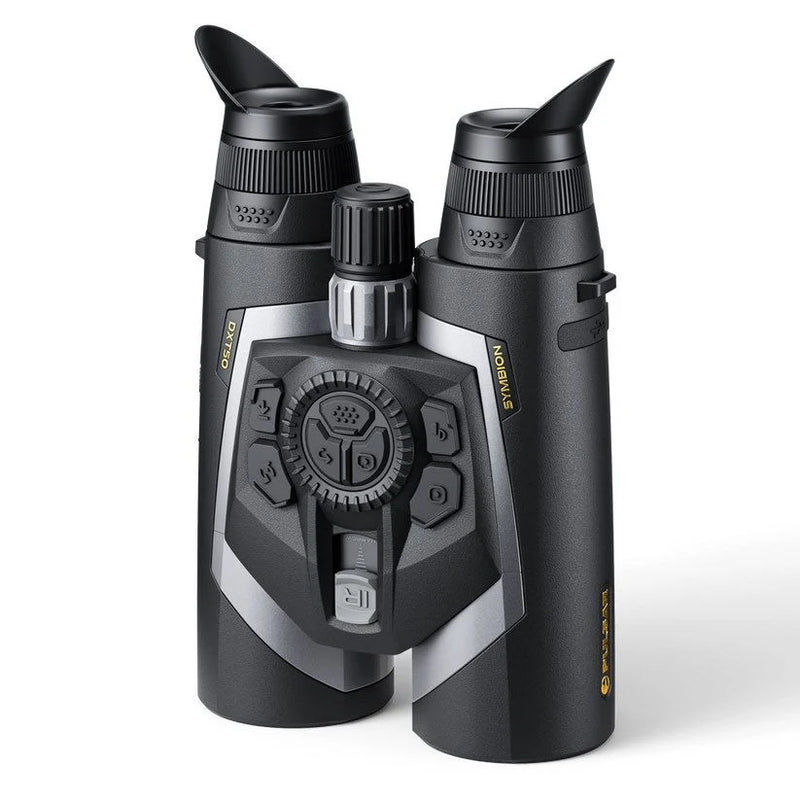

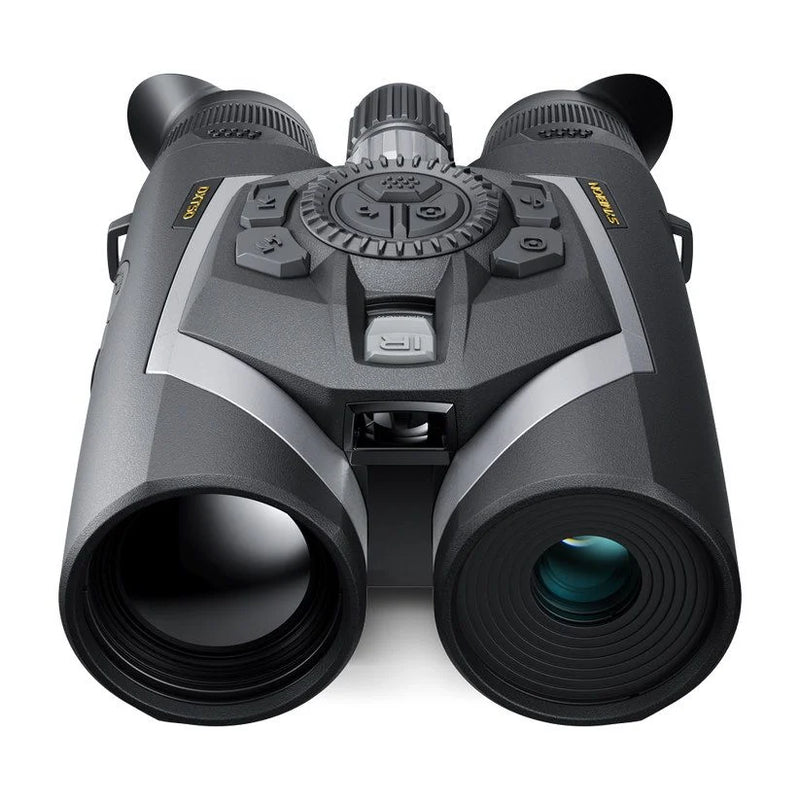

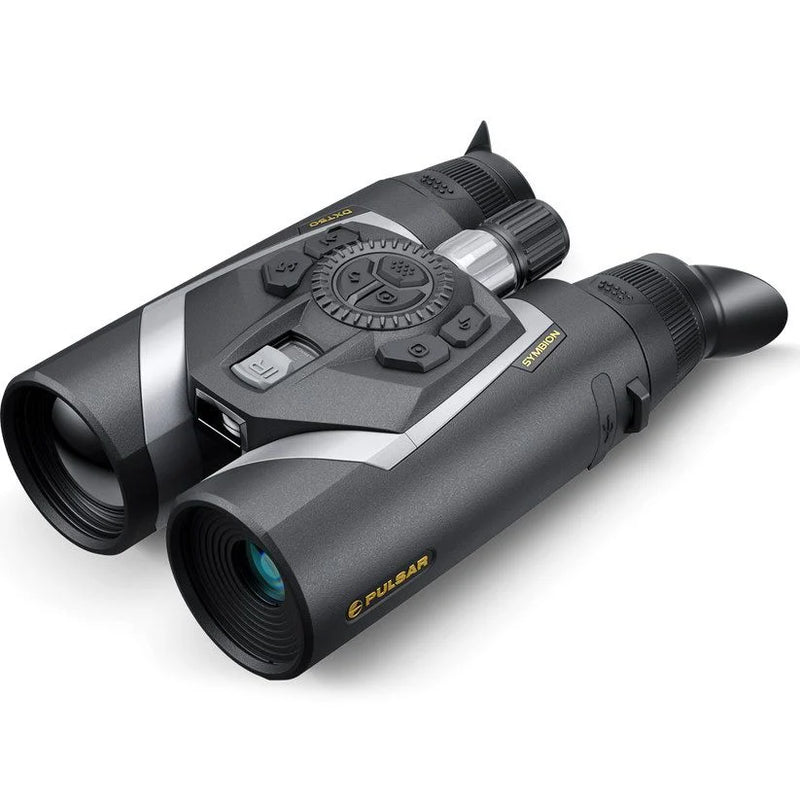

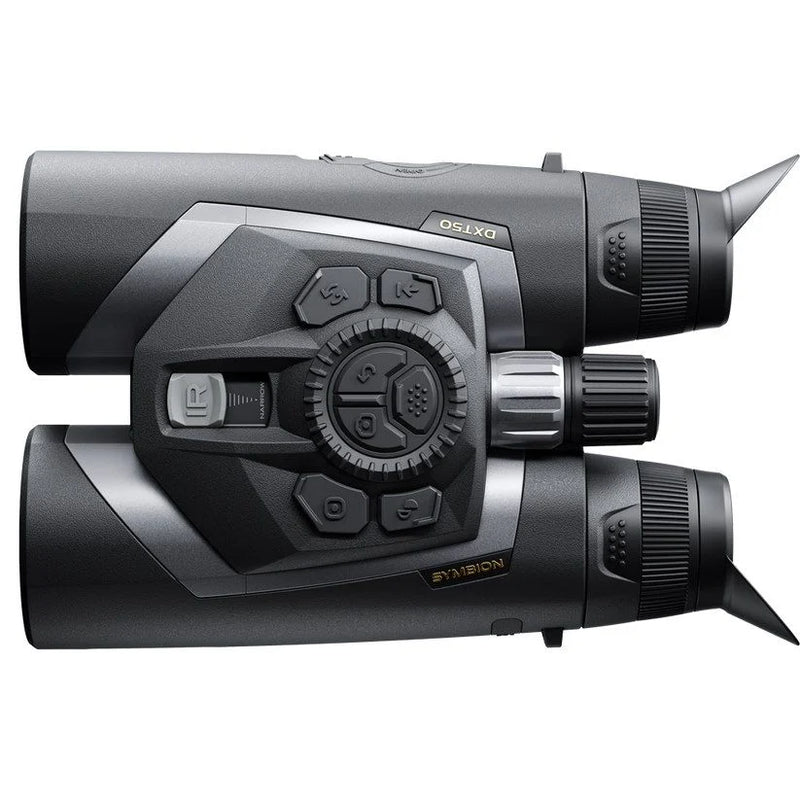

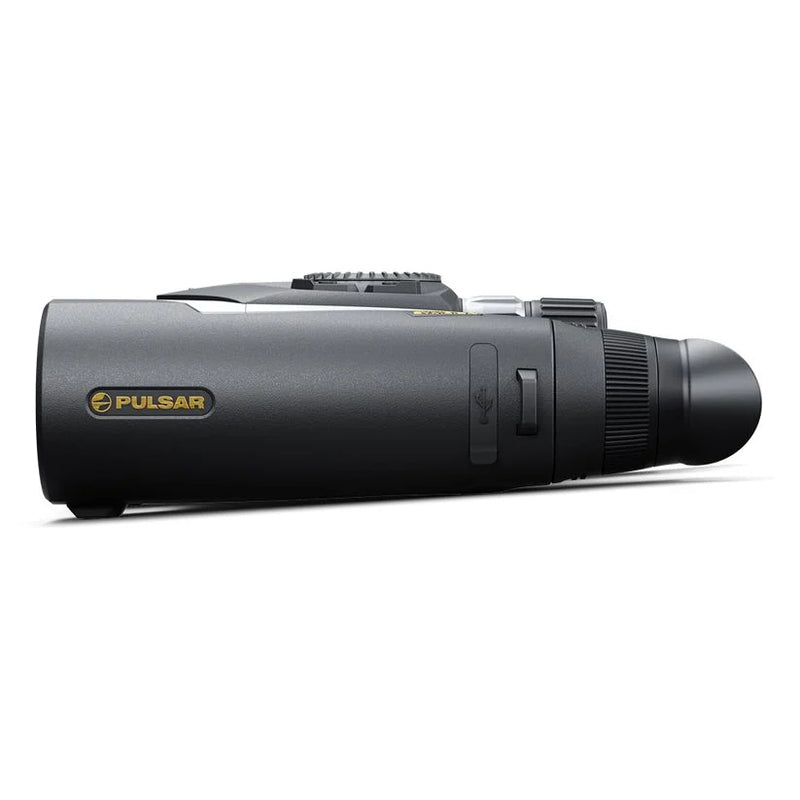

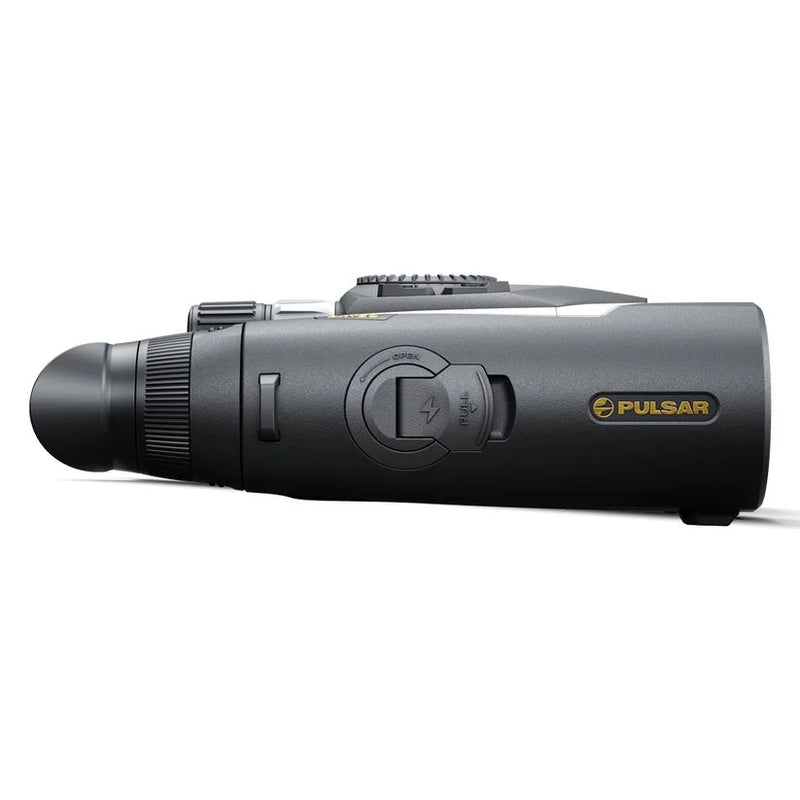

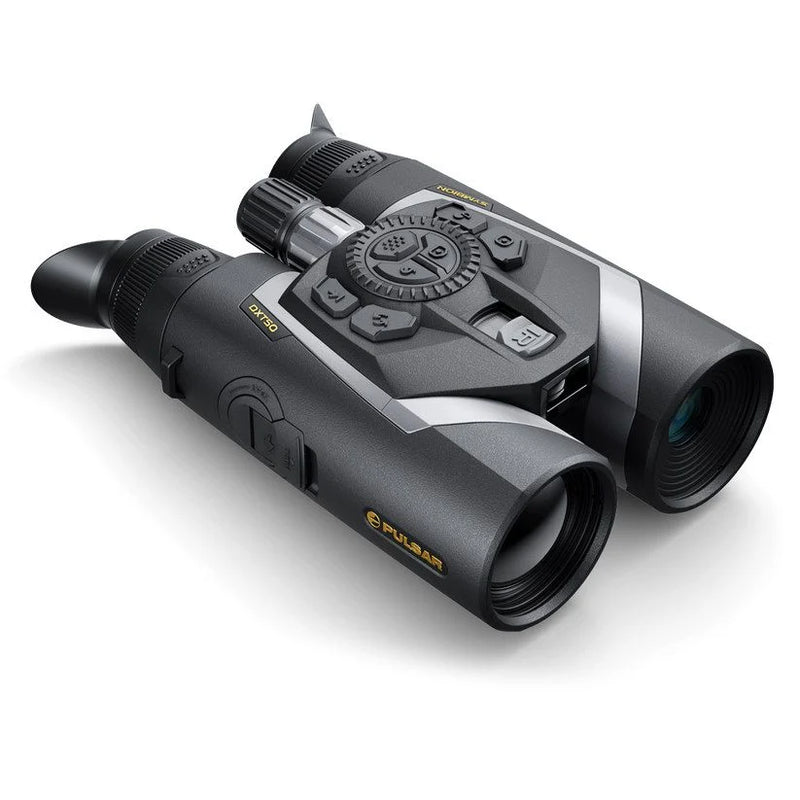

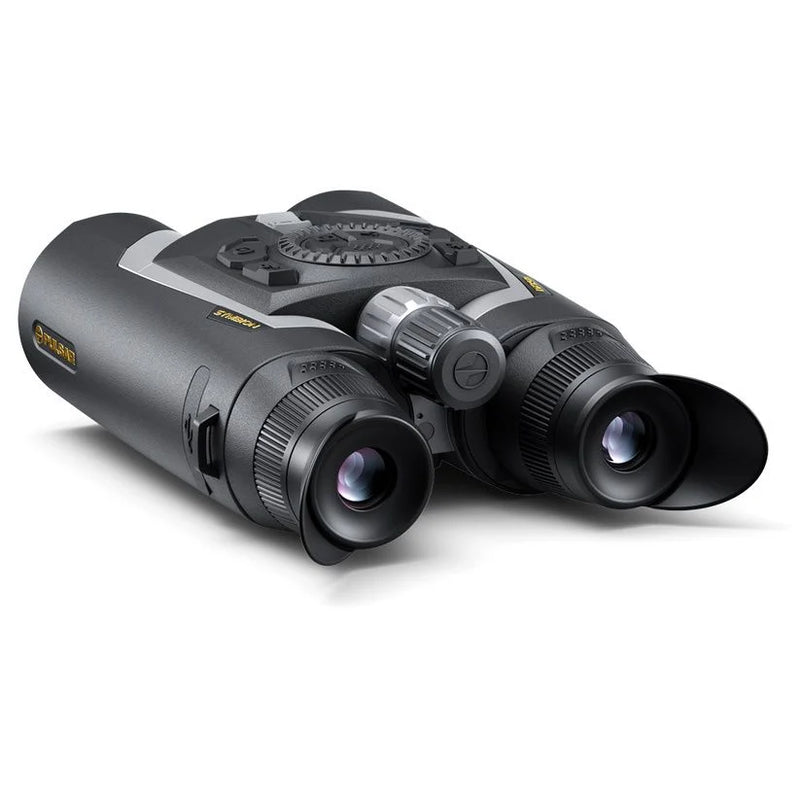

Introducing the Pulsar Symbion LRF DXT50 Multispectral Binocular. A cutting-edge optical device engineered for users who demand superior performance across all lighting conditions. Combining thermal imaging, digital night vision, and full-colour daytime viewing, it delivers a truly versatile viewing experience in a single, robust unit. Designed with a classic binocular form factor, it provides a natural and comfortable viewing experience, making it ideal for extended observation sessions in forests, open terrain, or mixed environments.

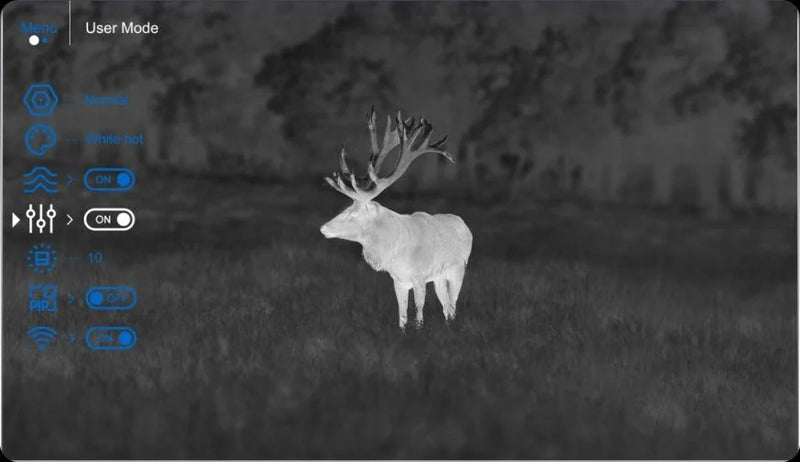

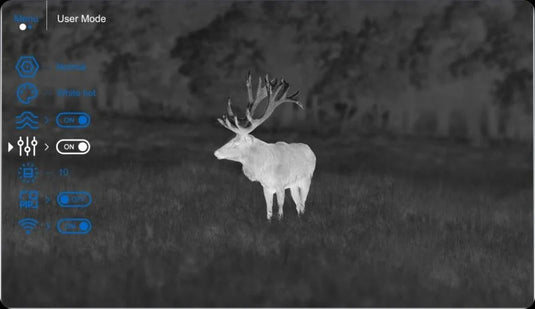

At the heart of the Symbion LRF DXT50 is its advanced multispectral imaging system, featuring a high-resolution thermal sensor paired with a 4K digital CMOS sensor. This dual-channel setup allows users to switch seamlessly between thermal and digital modes, ensuring clear detection and identification of targets whether in complete darkness, low light, or bright daylight. With a thermal detection range of up to 2300 metres and magnification ranges of 216x (thermal) and 6.526x (digital), it provides exceptional clarity and reach for long-distance observation. The device is equipped with a high-quality 1920x1080 MicroLED (AMOLED) display, delivering crisp visuals with up to eight selectable colour palettes to suit different viewing preferences and conditions. An integrated laser rangefinder with a measuring range of up to 1500 metres ensures accurate distance calculations, while true horizontal distance indication and a built-in ballistic calculator enhance precision for advanced users. Additional imaging features such as multiple sensitivity amplification levels and digital imaging modes further refine the viewing experience.
Designed for both performance and convenience, the Symbion LRF DXT50 includes 64GB of internal storage for photo and video recording with sound, allowing users to capture and review key moments in the field. It supports Wi-Fi connectivity and works seamlessly with Stream Vision 2 and Stream Vision Ballistics apps, enabling remote control, live streaming, and ballistic data integration. Haptic vibration feedback, a tactile three-position power switch, and energy-saving modes all contribute to intuitive and efficient operation. Built with durability in mind, the binocular features a rugged magnesium alloy housing and an IP67 waterproof rating, ensuring reliable performance in harsh environments and extreme temperatures ranging from -25C to +50C. Powered by dual APS5 battery packs, it delivers up to 8 hours of continuous operation, with additional support for USB-C external power. Combining advanced technology, rugged construction, and user-focused features, the Pulsar Symbion LRF DXT50 stands out as a premium solution for professional observation and detection needs.
Features
- Up to 8 color palettes
- 1920x1080 MicroLED (AMOLED)
- Up to 8h on 2xAPS5 battery pack
- 64GB of built-in internal memory
- Haptic vibro feedback
- Smart power management
- Classic binocular design
- Photo/video recording with sound
- Tactile 3 position power switch
- True horizontal distance indication
- Stream Vision 2 and Stream Vision Ballistics support
- Integrated ballistic calculator
- 3 sensitivity amplification levels
- Energy saving sleep mode
- 4 digital imaging modes
- USB-C video output
Specifications
| Brand | Pulsar |
| Main specifications | |
| Sensor | Thermal 1280x1024/12m / Digital 3840x2160 |
| Objective lens | Thermal F50/1.0 / Digital F50/1.8 |
| Magnification, x | Thermal 2 - 16x / Digital 6.5 - 26x |
| FOV (HxV), degrees | Thermal 17.5 / Digital 5.8 |
| FOV (HxV), m at 100m | Thermal 30.7 m / Digital 10.2 m |
| Diopter Adjustment, D | -5 / +5 |
| Detection range | Thermal 2300 m |
| Infrared Illuminator | |
| Emitter | LED |
| IR wavelength, nm | 850 |
| Sensor | |
| Type | Thermal uncooled, microbolometric Digital 4K CMOS |
| Resolution, pixels | Thermal 1280x1024/12um / Digital 3840x2160 |
| Sensor NETD, mK | < 35 |
| System NETD, mK | < 20 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | Thermal F50/1.0 / Digital F50/1.8 |
| Magnification, x | Thermal 2 - 16x / Digital 6.5 - 26x |
| FOV (HxV), degrees | Thermal 17.5 / Digital 5.8 |
| FOV (HxV), m at 100m | Thermal 30.7 m / Digital 10.2 m |
| Diopter Adjustment, D | -5 / +5 |
| Eye relief, mm | 13 |
| Display | |
| Type | MicroLED (AMOLED) |
| Resolution, pixels | 1920x1080 |
| Range performance | |
| Detection range, m | Thermal 2300 m |
| Laser rangefinder | |
| Max. measuring range, m | 1500 |
| Measurement accuracy, m | -/+ 1 |
| Safety class for laser equipment | |
| according to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Video recorder | |
| Video / photo resultion, pixel | 1440x1080 |
| Video / photo format | .mp4 / .jpg |
| Build-in memory, GB | 64 |
| WI-FI | |
| Wireless protocol | Wi-Fi |
| Wireless standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, Ghz | 2.4 / 5 |
| Environmental characteristics | |
| Degree of protection IP code (IEC60529) | IP67 (waterproof) |
| Operating temperature range, | -25 - +50 |
| Connections and compatibilities | |
| Mount type | 1/4" socket Tripod adapter with ARCA-SWISS mount support |
| Supported application | Steam Vision 2, Steam Vision Ballistics |
| Power supply | |
| Output voltage, V | 3.7 |
| Battery type | 2x external APS5 |
| Capacity, mAh | 4900 |
| Operating time on battery pack, h at t22 | 8h on 2xAPS5 |
| External power supply, V | 5V/9V USB Type-C |
| Weight & size | |
| Body material | Magnesium alloy |
| Dimensions, mm | 207x132x72 |
| Weight, kg | 1 (battery included) |
