VCT-20A Reticle Christmas Tree Pattern for Fast Follow-up Corrections 0.1 MIL Center Dot for Precise Long-Range Shooting
German Schott HT LaREE Lens & VePRO FMC with ED Glass Reaches >93% Light Transmission Presents Crystal-Clear Image
30mm Monotube Maximizes Elevation Adjustment Range to 23 MIL 11 Gear Illumination Adaptable to Various Light Conditions

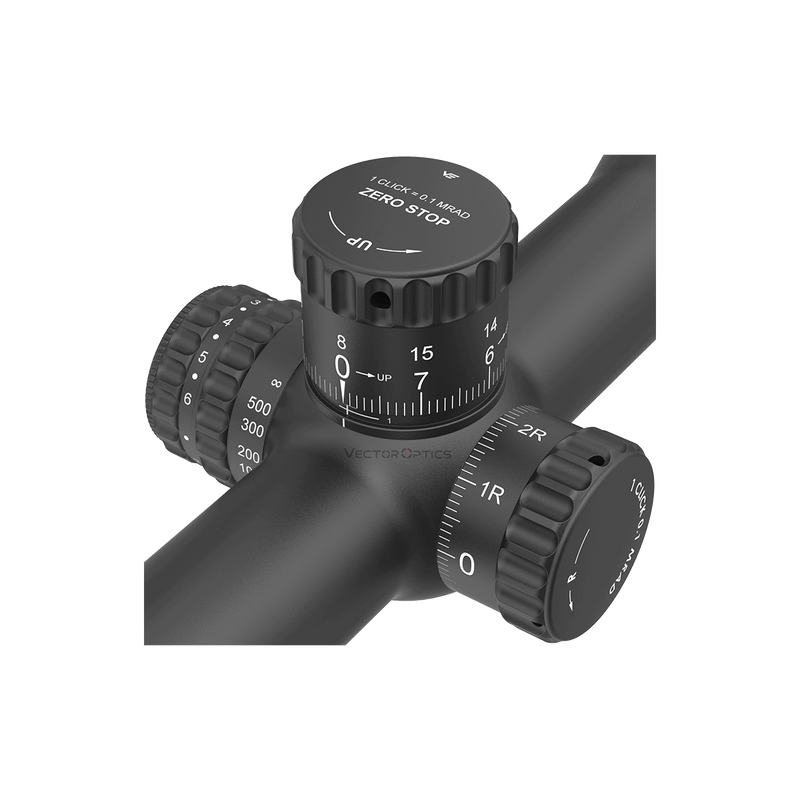

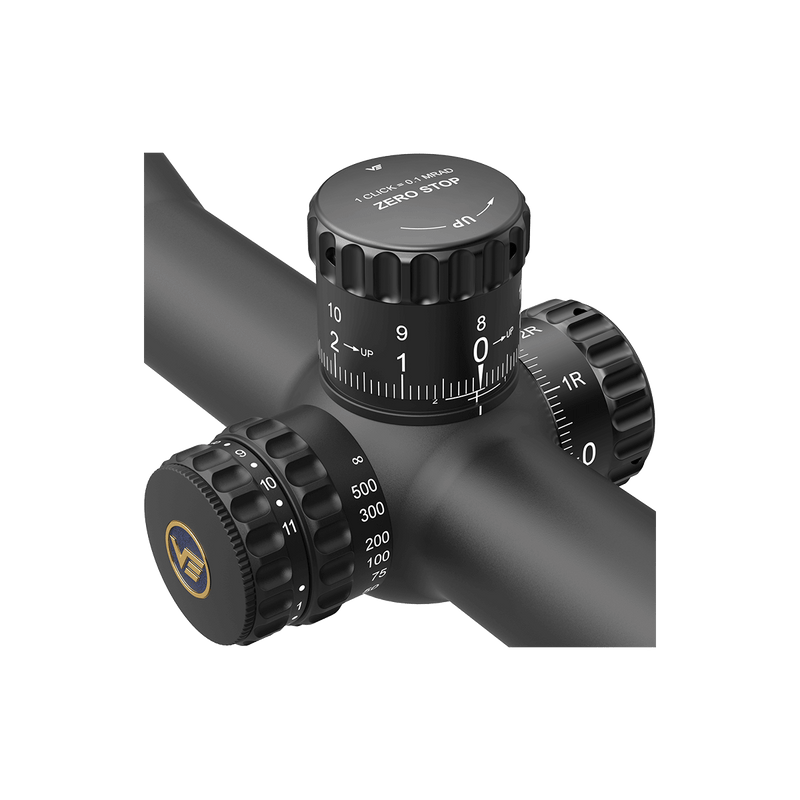

Zero Stop to Effortlessly Return to Pre-Set Zero Point Turret Lock to Prevent Unwanted Slippage during Different Scenarios
Specifications
| Magnification | 3-24x |
| Objective Lens Dia | 56 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 95 mm / 3.8 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 41.0-5.13 ft @ 100 yards |
| Linear Field of View @ 100 m | 13.6-1.71 m @ 100 meters |
| Angular Field of View ° | 7.8-0.97 ° |
| Reticle | VCT-20A |
| Tube Dia | 30 mm |
| Side Focus | 20 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | 23 MIL |
| Windage Adjustment Range | 23 MIL |
| Diopter Compensation | -3 to +2 |
| Illumination Setting | 11 Gears |
| Battery Type | CR2032 |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 376 mm / 14.8 in |
| Weight | 795 g / 28.0 oz |

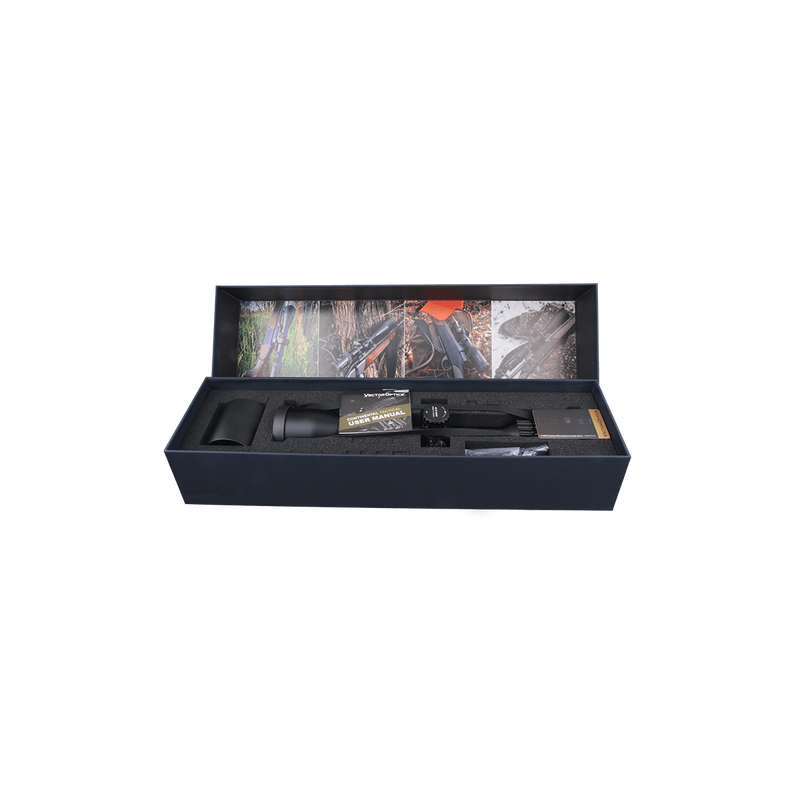

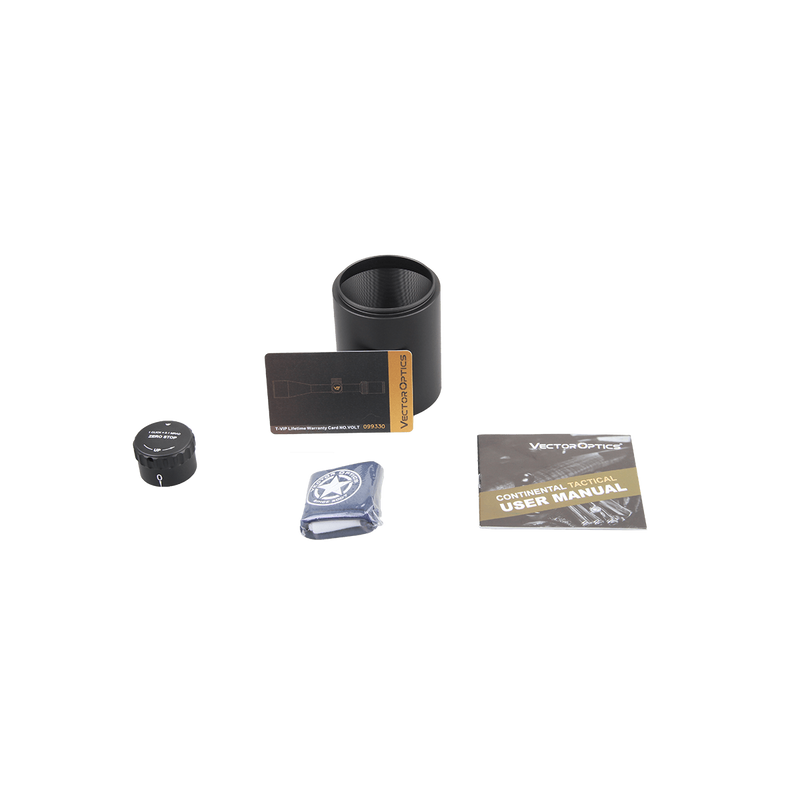

| Items in the Package | Picatinny Scope Rings, Spare Blank Elevation Turret, Sunshade, Lens Caps and Cleaning Cloth, etc. |
