| Specification |
Details |
| Magnification: |
8-34x |
| Objective Lens Dia: |
56 mm |
| Focal Plane: |
Second Focal Plane |
| Eye Relief: |
95 mm / 3.74 in |
| Lens Coating: |
Fully Multi-Coated |
| Linear Field of View @ 100 yd: |
12.57-2.98 ft @ 100 yards |
| Linear Field of View @ 100 m: |
4.19-0.99 m @ 100 meters |
| Angular Field of View: |
2.4-0.57° |

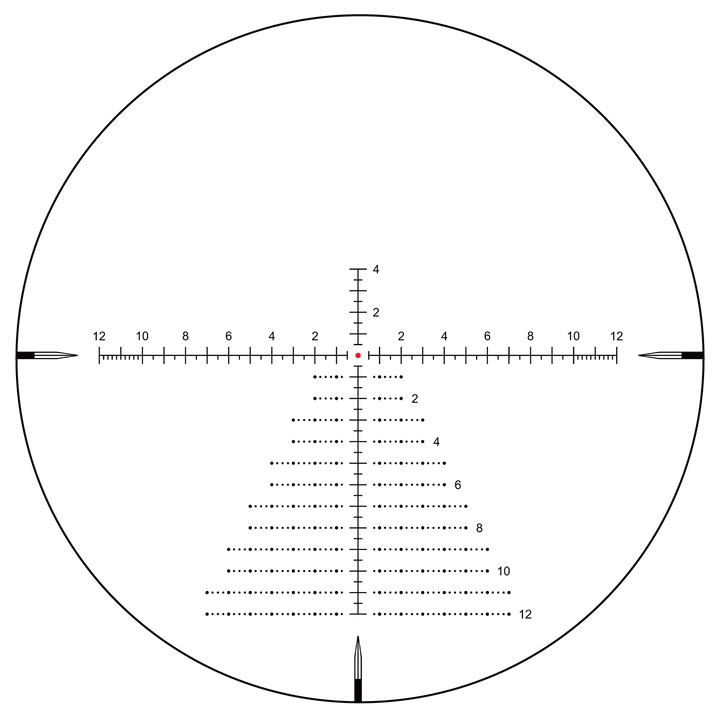

| Reticle: |
VSE-7 MOA |
| Tube Dia: |
30 mm |
| Side Focus: |
15 yards to Infinity |

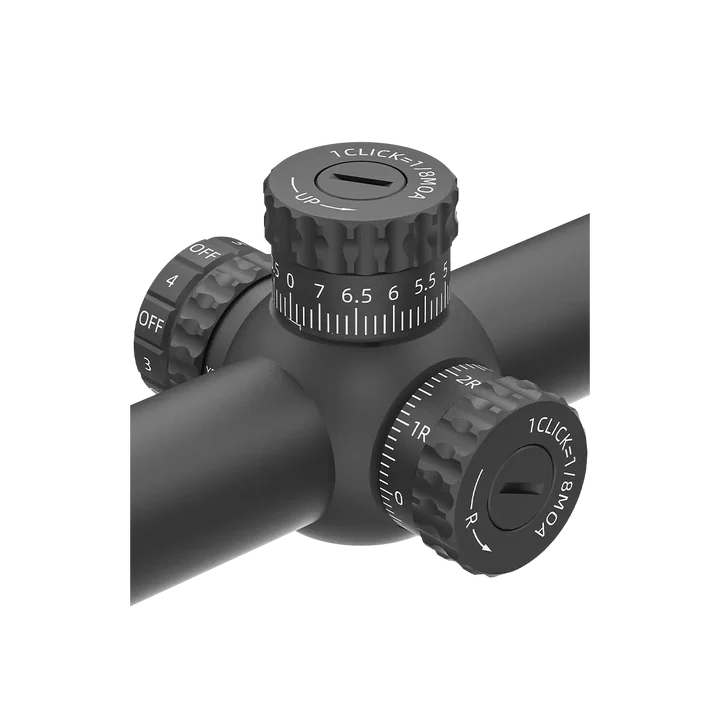

| Click Value: |
1/8 MOA |

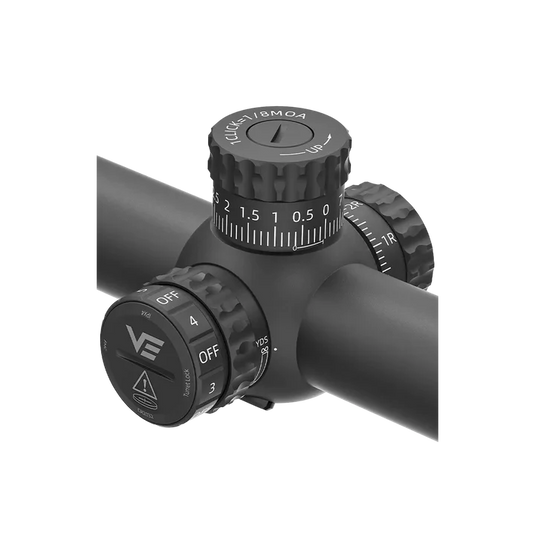

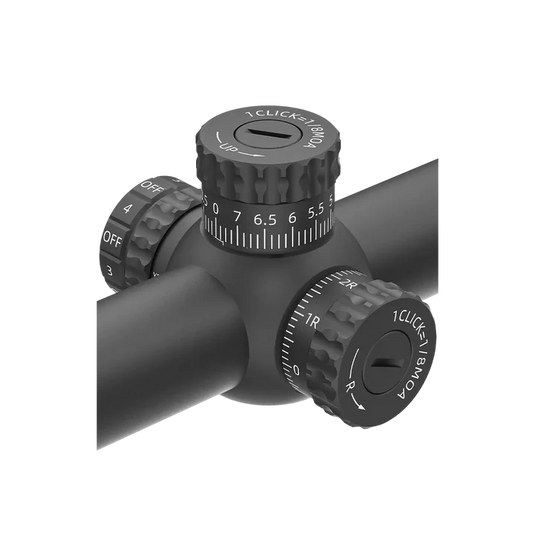

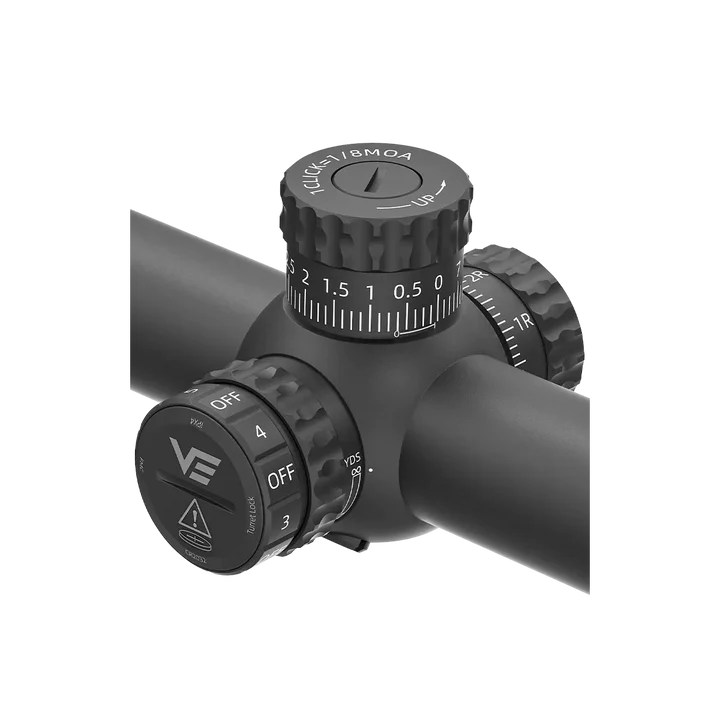

| Turret Function: |
Elevation Zero Stop & Revolution Indicator; Windage Turret Lock |
| Elevation Adjustment Range: |
≥55 MOA |
| Windage Adjustment Range: |
≥40 MOA |
| Diopter Compensation: |
-2 to +2 |
| Illumination Setting: |
6 Gears Red, On/Off Switch |
| Battery Type (Not Include): |
CR2032 |
| Waterproof: |
IPX4 |
| Fogproof: |
Nitrogen Filled |
| Shockproof: |
750 G |
| Housing Material: |
6063-T6 Aluminum Alloy |
| Finish: |
Matte Black |
| Length: |
395 mm / 15.55 in |
| Weight: |
753 g / 26.56 oz |
| Items in the Package: |
User Manual, Plastic Wrench, Cleaning Cloth, Flip-up Caps, Hex Key, Sunshade, etc. |
