Device Specifications and Features

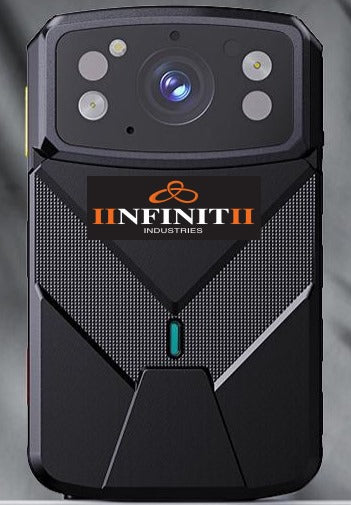

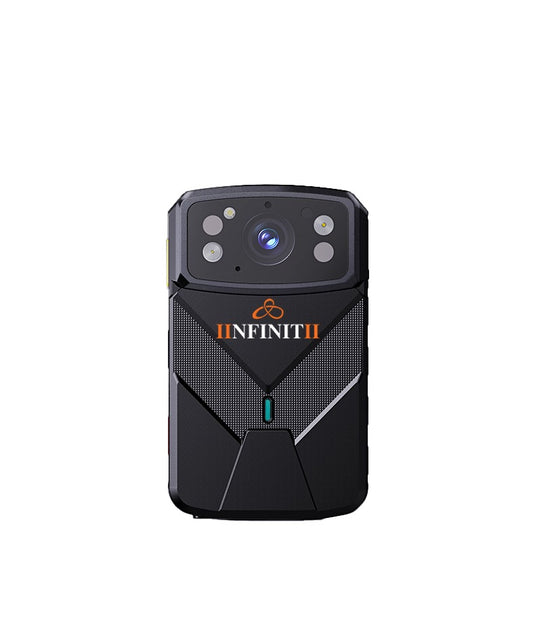

The 530 model is a robust Android device designed for various recording and communication functions, featuring advanced camera capabilities and durable construction. It supports multiple connectivity options and has a range of customizable settings for recording and file management.
- Model: ii530
- Operating System: Android 12
- Storage: 32GB internal + 3GB RAM, expandable via TF card (16-256GB)
- Processor: MTK6769
- Camera: Sony 335 sensor, 5MP front, 2MP rear
- Protection: IP68 rating, anti-drop from 2 meters
- Display: 3.1 inch TFT touch screen
- Battery: Replaceable 3200 mAh, ≥10 hours working time
- Weight: 166g
Recording and Audio Features
The device offers versatile recording options, including various resolutions and segment lengths, along with advanced audio features for clear communication. It supports multiple recording modes and settings for user convenience.
- Recording Resolutions: Up to 2560*1440
- Video Formats: MP4, with H.265/H.264 coding
- Audio Format: MP4
- Recording Segments: Options from 1 to 30 minutes
- Pre-Recording Options: 0 to 180 seconds
- Loop Recording: Automatically deletes oldest files when storage is low
- Noise Reduction: Front and bottom microphones for enhanced audio clarity
Connectivity and Wireless Capabilities
The M530 is equipped with extensive connectivity options, including 4G LTE, Wi-Fi, GPS, and Bluetooth, ensuring seamless communication and data transfer. It also supports NFC for quick pairing with other devices.
- 4G LTE Support: Multiple bands for GSM, WCDMA, and FDD-LTE
- Wi-Fi: 802.11b/g/n/ac, supports AP/Station mode
- GPS: GPS+AGPS+Glonass for accurate positioning
- Bluetooth: Supports Bluetooth 4.0
- USB Interface: Type-C for charging and data transfer
User Interaction and Control Features
The device includes various buttons and interfaces for user interaction, allowing for easy control of recording, communication, and settings. It features a PTT button for voice intercom and an SOS button for emergencies.
- PTT Button: Long press for voice intercom
- Recording Button: Short press to start/stop recording
- SOS Button: Activates alarm recording and sends SOS message
- 4PIN Interface: For charging and data transmission
- Battery Cover Switch: Easy access to battery compartment
File Management and Storage Options
File management is organized into internal and external storage, with various file types categorized for easy access. The device supports video encryption and customizable storage settings.
- Storage Types: Internal (system memory) and external (TF card)
- File Types: Video, picture, SOS, key video, and logs
- Video Encryption: AES256 for secure recordings
- Storage Settings: Options for auto, built-in, or external storage
System and Server Settings
The device allows users to configure system settings, including network connections and server configurations, enhancing its functionality for various applications.
- Network Settings: Manage Wi-Fi, mobile network, and Bluetooth
- USB Protection: Password-protected access to the device
- Server Settings: Configure device number, server IP, and FTP settings
- RTSP Support: Connect to RTSP servers for streaming
Camera and Video Features
The ii530's camera features allow for high-quality image and video capture, with adjustable settings for resolution and frame rate. It supports both main and sub-stream recording.
- Camera Options: Switch between front and rear cameras
- Picture and Video Resolution: Configurable settings for quality
- Frame Rate: Adjustable for video streams
- Continuous Playback: Automatically plays the next video after one ends
